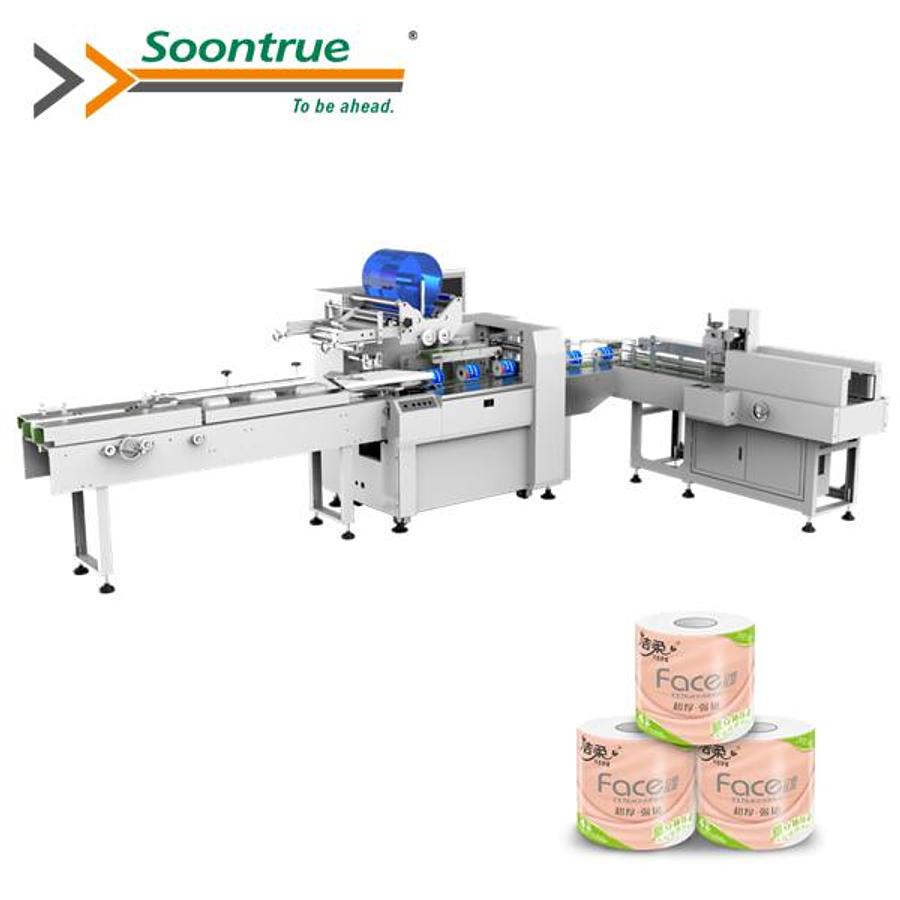

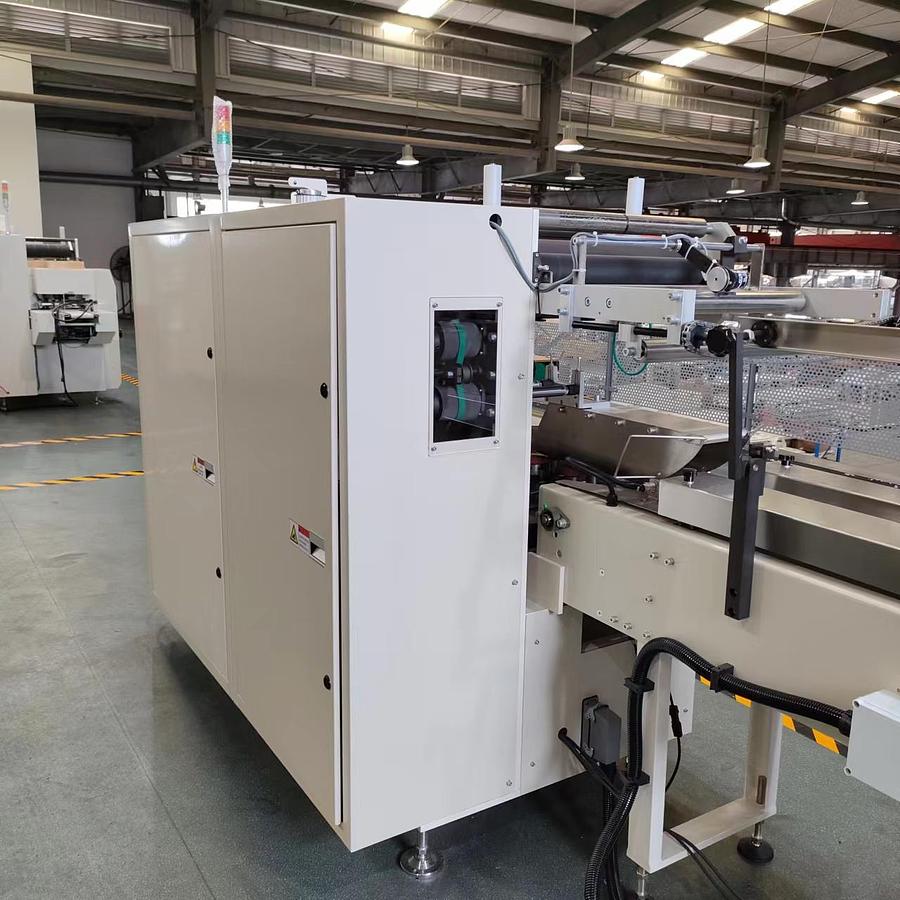

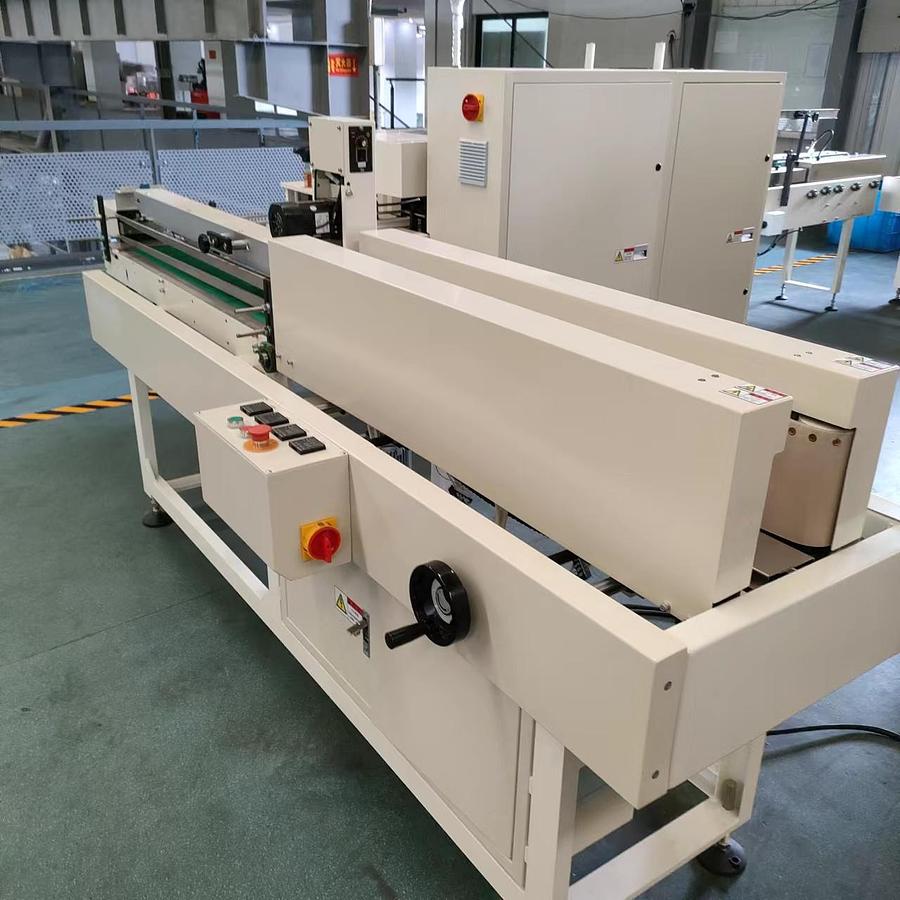

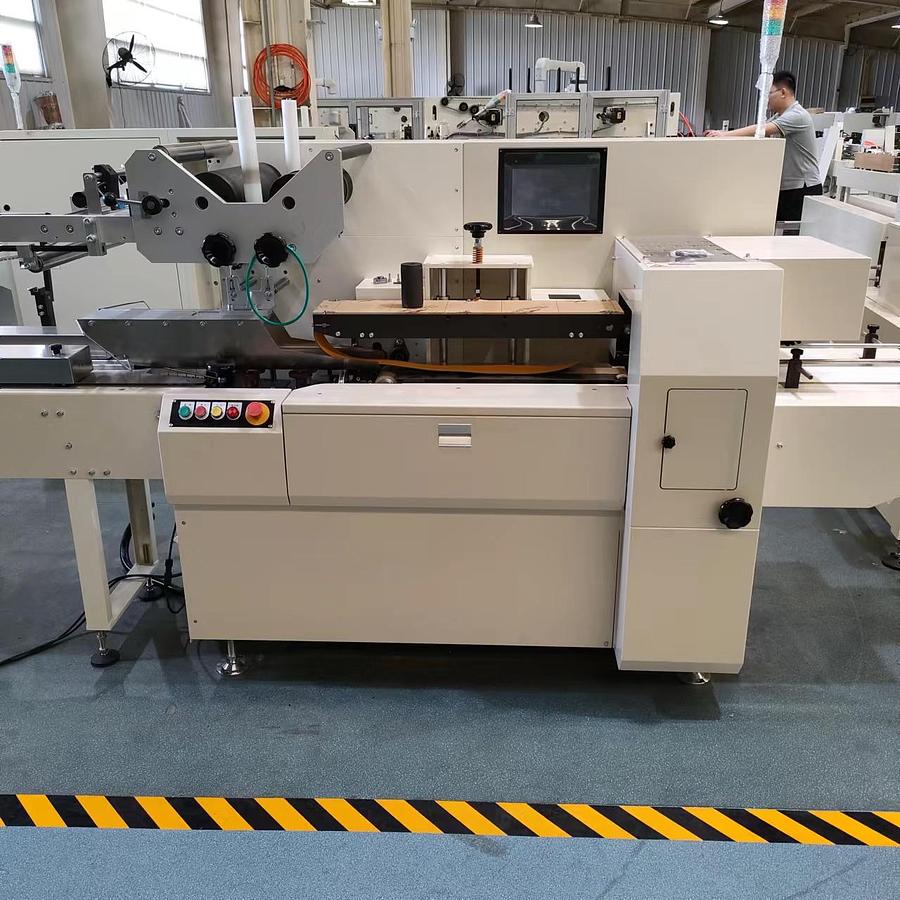

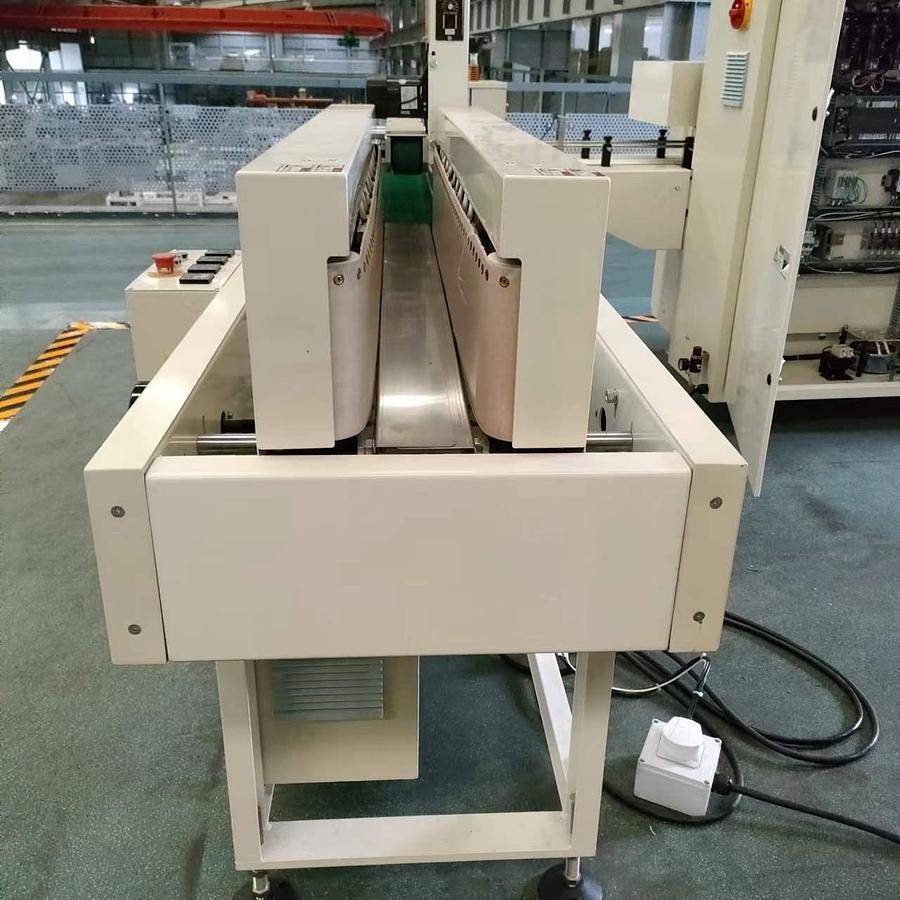

Automatic Single Roll Toilet Paper Packing Machine ZB530

Soontrue ZB530 Toilet Roll Packaging Machine – Technical Specifications

Model: ZB530

Film Size:

• Diameter: 85–135 mm
• Length: 90–220 mm

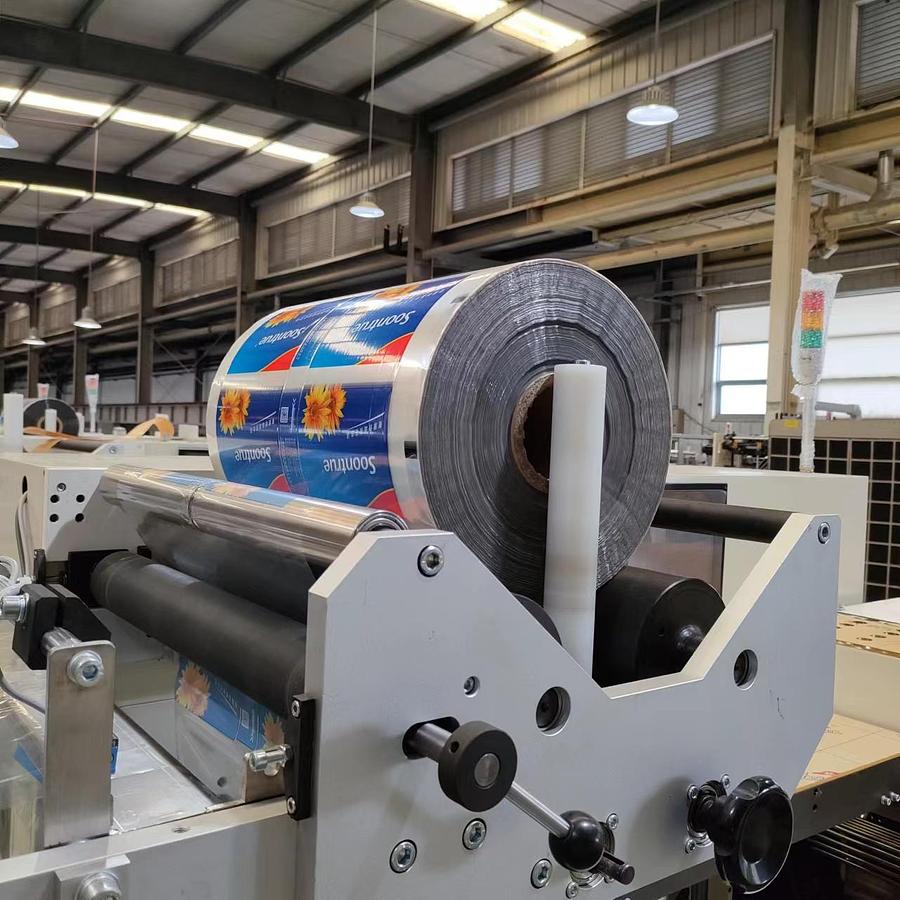

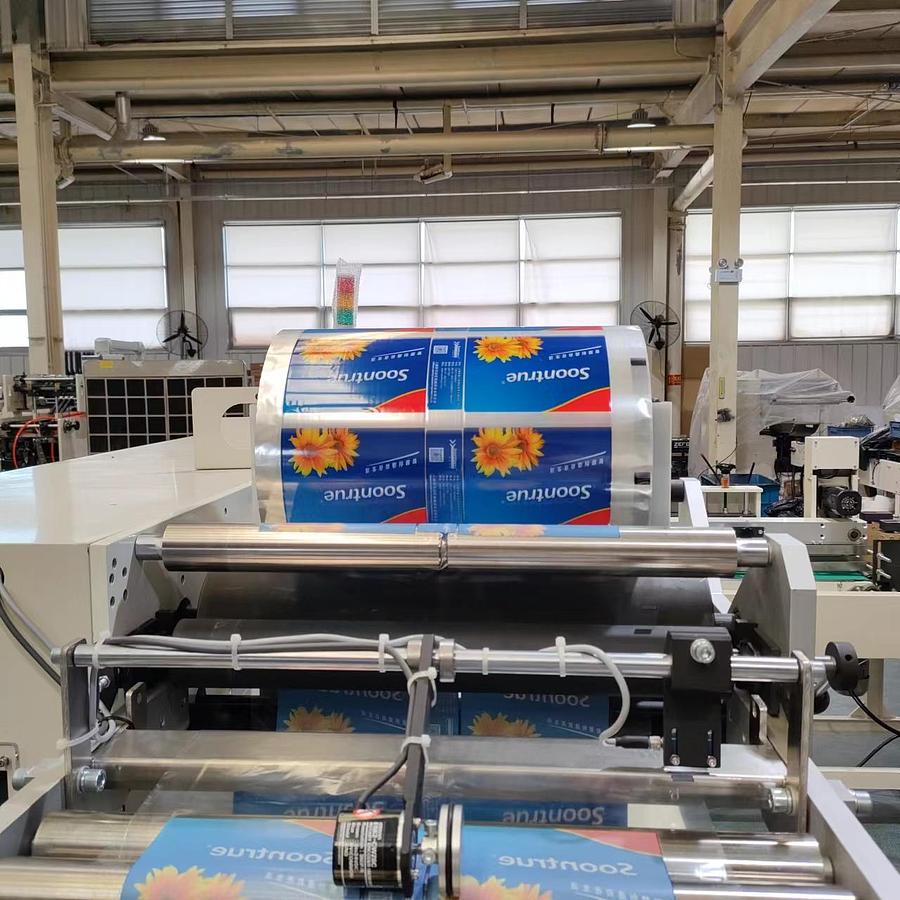

Packaging Film:

• Maximum diaphragm diameter: φ400 mm
• Maximum volume width: 420 mm
• Film thickness: 0.018–0.03 mm
• Film material: SPP double-sided hot sealing film

Design Speed: 200 rolls/min (color mark distance ≤270 mm)

Power:

• Pull film motor: 1.5 kW
• End-sealed motor: 1 kW
• Reverse motor: 0.75 kW
• Tidy & push material motors: 0.75 kW + 0.75 kW
• Host heating power: 5 kW
• Side heating power: 7.2 kW
• Total Power: 15 kW

Performance:

• Pass rate: 97%
• Pattern deviation: ≤3 mm
• Machine operation efficiency: ≥85%

Machine Dimensions & Weight:

• Overall dimensions (L×W×H): 4330 × 3450 × 1700 mm
• Machine weight: 2,200 kg

Power Supply: 3-phase, 4-wire, 380V 50Hz, control voltage DC 24V

Compressed Air: 250 L/min

Noise Level: ≤75 dB

Machine Color: Host color: beige white
