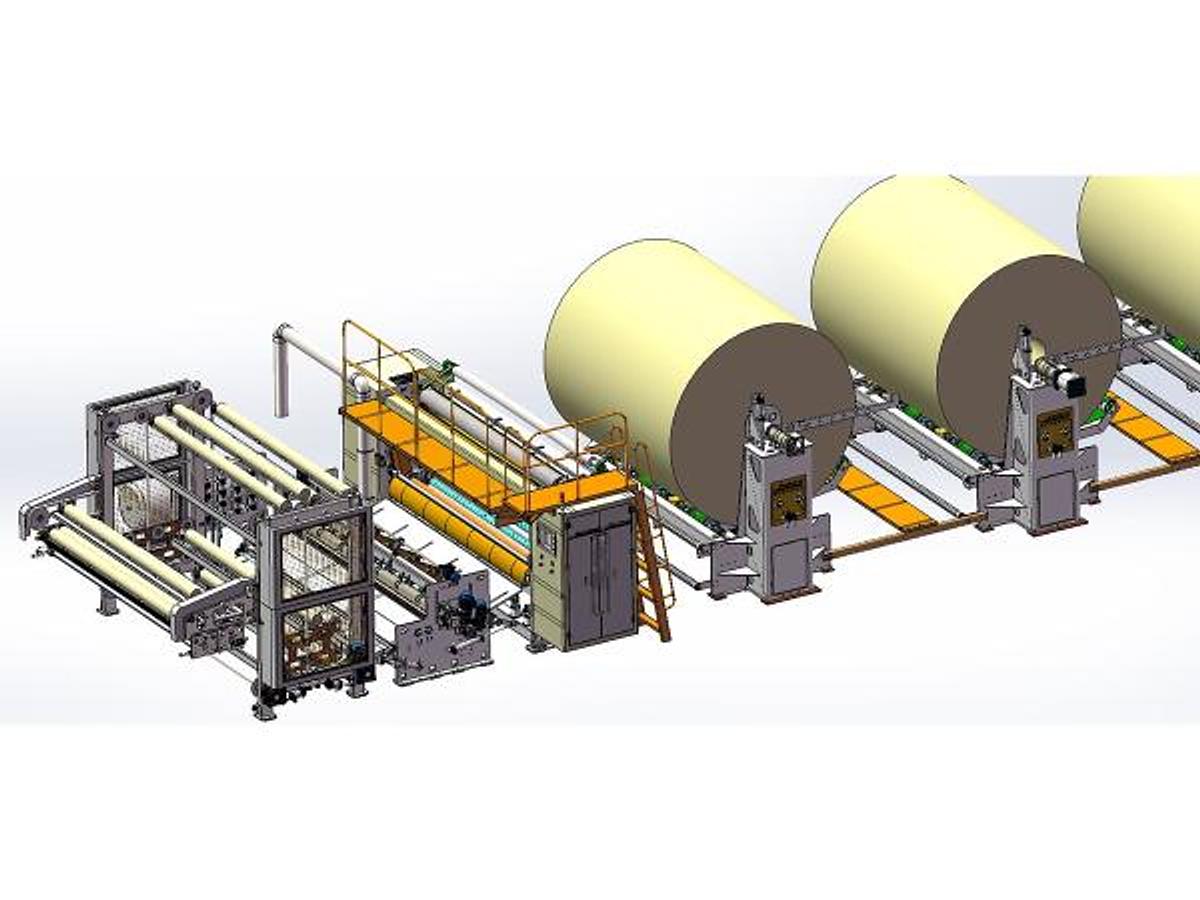

SCF-350C-2900 High Speed Rewinding Machine

The SCF-350C-2900 is the latest high-speed toilet and kitchen roll rewinding line, independently developed by Soontrue Group. It combines advanced international manufacturing concepts and technologies:

• Imported motion controller control
• Large screen true color human-machine interface (HMI)
• Servo + variable frequency independent drive
• Mechanical and optical integrated control

The line automatically detects and adjusts each action to maintain optimal working conditions, making it ideal for high-grade toilet roll and kitchen roll production.

This line integrates both core-rewinding and coreless rewinding, holds multiple invention patents, and is globally leading in high-speed tissue rewinding.Performance Specifications

• Design Speed (with core rewinding): 350 m/min
• Production Speed (with core rewinding): 300 m/min
• Out-feed Logs: 14–15 logs/min
• Valid Roller Width: 2900 mm
• Estimated Daily Production: ~15 tons/day (varies by product specifications)
• Applied Jumbo Roll Materials: Straw pulp paper, wood pulp paper, sugarcane pulp paper, bamboo pulp paper
• Jumbo Roll Specifications: 13–24 g/m² basis weight; 1.5 m back stand width; 4-team unwinding without axis
• Rewinding Types: Core-rewinding and coreless rewinding
• Optional Functions: Single or double embossers, glue lamination
