Continuous Vacuum Film Sugar Machine HTL-T300

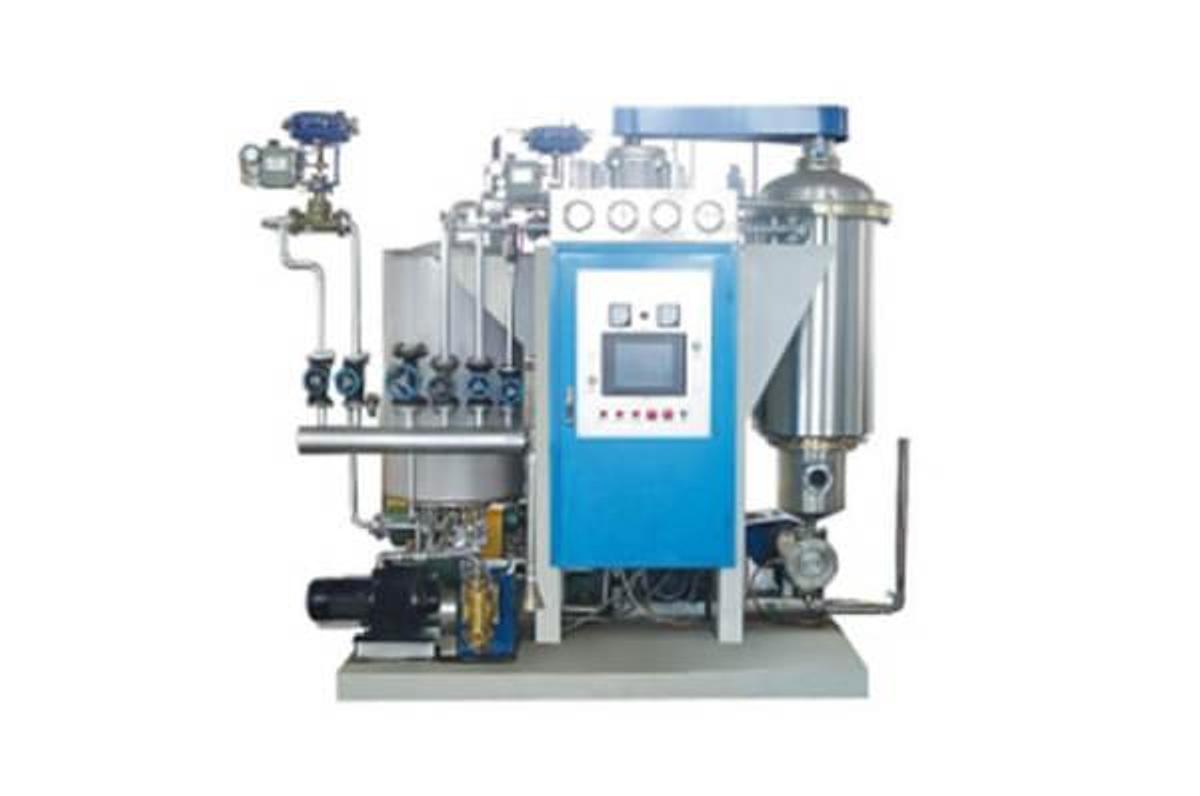

HTL-300 Vacuum Film Sugar Machine

Product Description

The HTL-300 Vacuum Film Sugar Machine is a fully integrated unit designed for the efficient, high-quality production of hard candy syrup. This advanced equipment combines multiple components into a compact, easy-to-operate system, making it ideal for candy manufacturers focused on product consistency, clarity, and production control.

The system includes:

• Syrup metering pump
• Preheater
• Vacuum film evaporator
• Water ring vacuum pump
• Discharge pump
• Temperature and pressure monitoring instruments
• Electrical control box

All components are mounted on a single stainless steel rack and connected via precision-engineered pipelines and valves, allowing for easy maintenance, streamlined workflow, and minimal installation time.

Key Features

• High-quality sugar output with excellent clarity and transparency
• Integrated and compact design for ease of use and minimal footprint
• Stainless steel construction ensures hygiene and durability
• Premium components from leading brands:
• Schneider Electric controls
• Spirax Sarco steam regulator and trap
• Siemens motor and inverter
• Omron temperature controller
• Sterling water ring vacuum pump
• Damped metering pump
• Double rotor discharge pump
• Syrup-contact surfaces made of copper or 304 stainless steel
• Fully stainless steel piping for sanitary processing

Application Scope

This machine is ideal for:

• Hard candy production
• Industrial candy kitchens requiring high-purity, vacuum-cooked syrup

Technical Specifications (Narrative Form)

The HTL-300 has a sugar production capacity of 360 kg/h, offering stable and high-output processing for industrial-scale operations. It consumes approximately 16 kW of electrical power and 450 kg/h of steam, operating at a steam pressure range of 0.6 to 0.8 MPa. Water consumption is rated at 2200 liters per hour, supporting continuous vacuum evaporation and cooling functions.

With an overall machine weight of 3000 kg and dimensions of 2400 × 2000 × 2400 mm, the HTL-300 is designed for heavy-duty use while maintaining a manageable footprint for most candy production facilities.
