CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

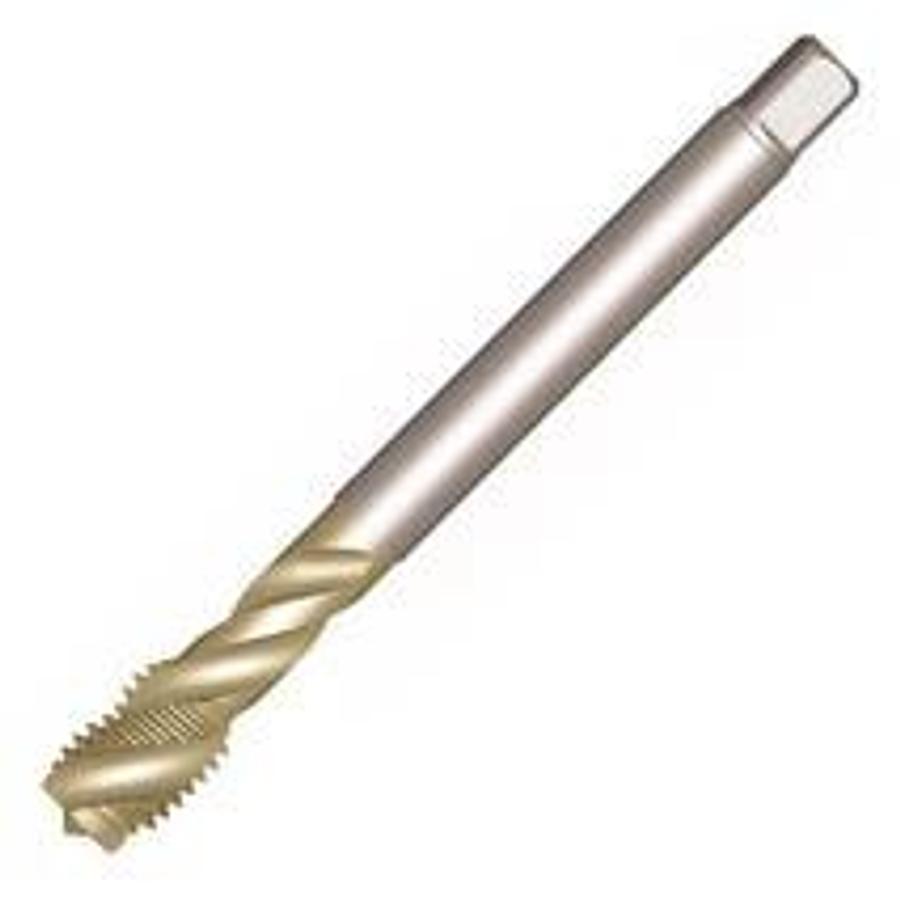

CoroTap™ 300 Spiral Fluted Tap with Spiral Point – UNC 5/8-11

The CoroTap™ 300 by Sandvik Coromant is a robust spiral fluted tap featuring a spiral point, purpose-built for threading UNC 5/8-11 threads. It is made from HSS-PM (High-Speed Steel Powder Metallurgy) and finished with a PVD coating, delivering excellent wear resistance and performance across various materials and applications.

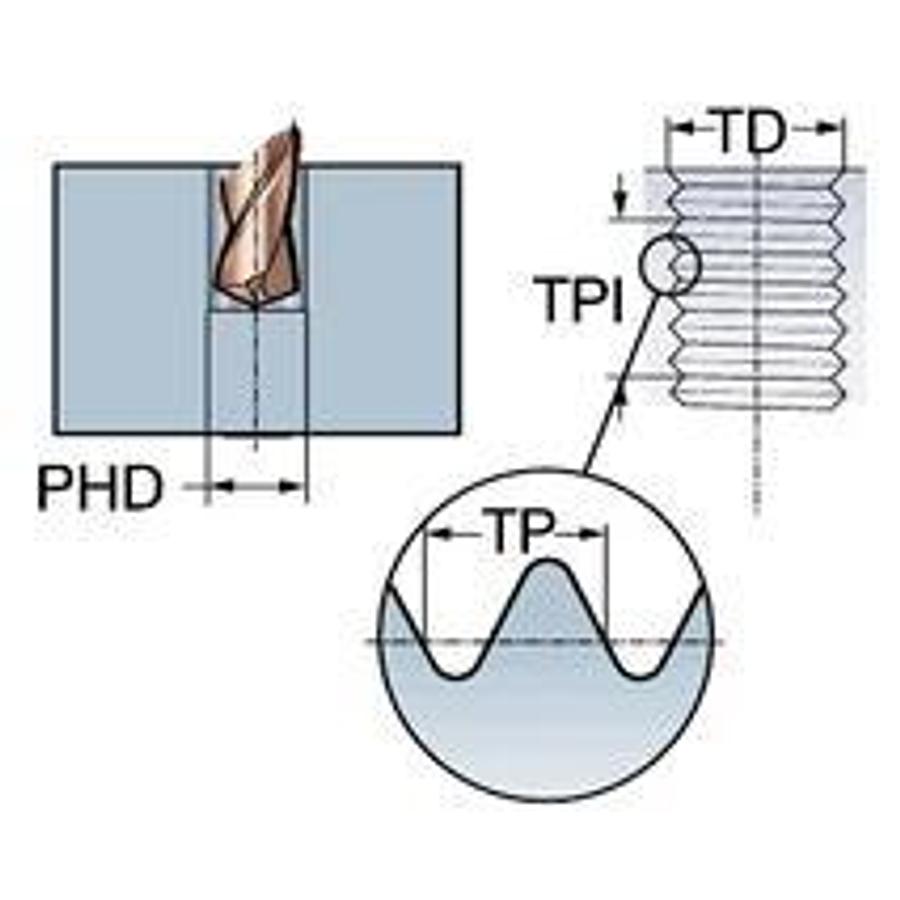

Key Specifications:

• Thread Size: UNC 5/8-11 (Unified National Coarse)
• Nominal Thread Diameter (TD): 15.875 mm
• Threads per Inch (TPI): 11
• Thread Tolerance Class (TCTR): 3BX (precision fit for internal threads)
• Chamfer Design (THCHT): C-type chamfer (suited for through-hole operations)
• Number of Chip Channels (NOF): 4
• Helix Angle (FHA): 45°
• Thread Length (THL): 20.1 mm
• Neck Diameter (DN): 11.85 mm
• Output Diameter (PHD): 13.5 mm
• Shank Size (DCONMS): 12.192 mm
• Tap Shank Interface (ADINTMS): ANSI (inch): 0.480 x 0.360

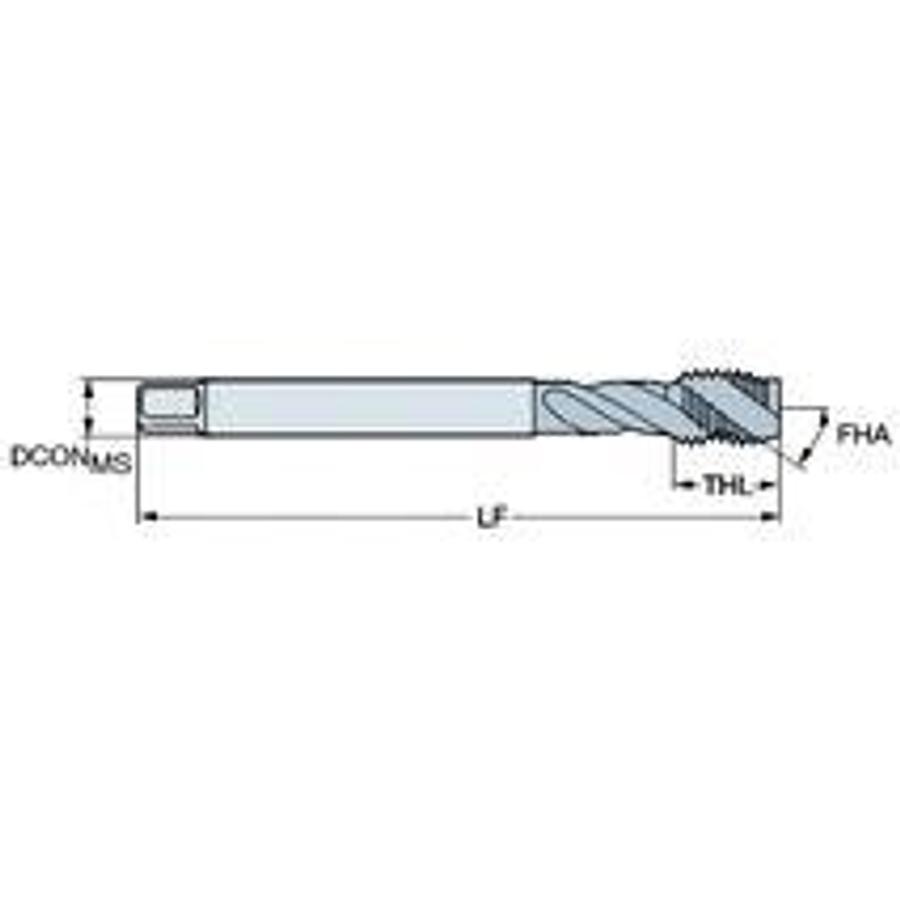

Dimensions:

• Functional Length (LF / L): 110 mm
• Usable (Working) Length (LU): 65.78 mm

Material & Coating:

• Tool Material (ISO): HSS-PM (High-Speed Steel, Powder Metallurgy)
• Coating Type: PVD (Physical Vapor Deposition)
• Substrate: HSS-PM

Application & Standards:

• Standard Compliance: DIN 2184-1 / ANSI
• Bottom Hole Suitability (BHFP): Yes (1 = suitable)
• Coolant Capability (CNSC): Without internal coolant (0)
• Manufacturer Part Number: T300-XM101AE-5/8 C110
• IC Code: 70200
• Grade: C110
• Life Cycle Status (LCS): 20 (indicates active availability)
