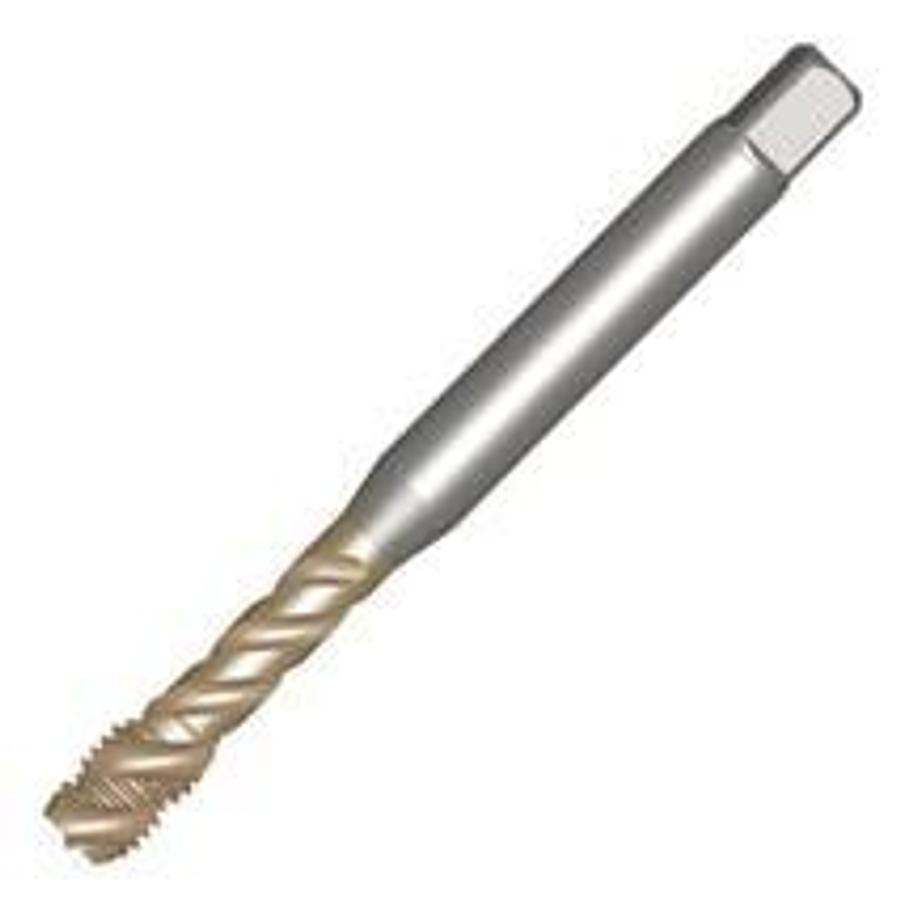

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

CoroTap™ 300 spiral fluted tap with spiral point

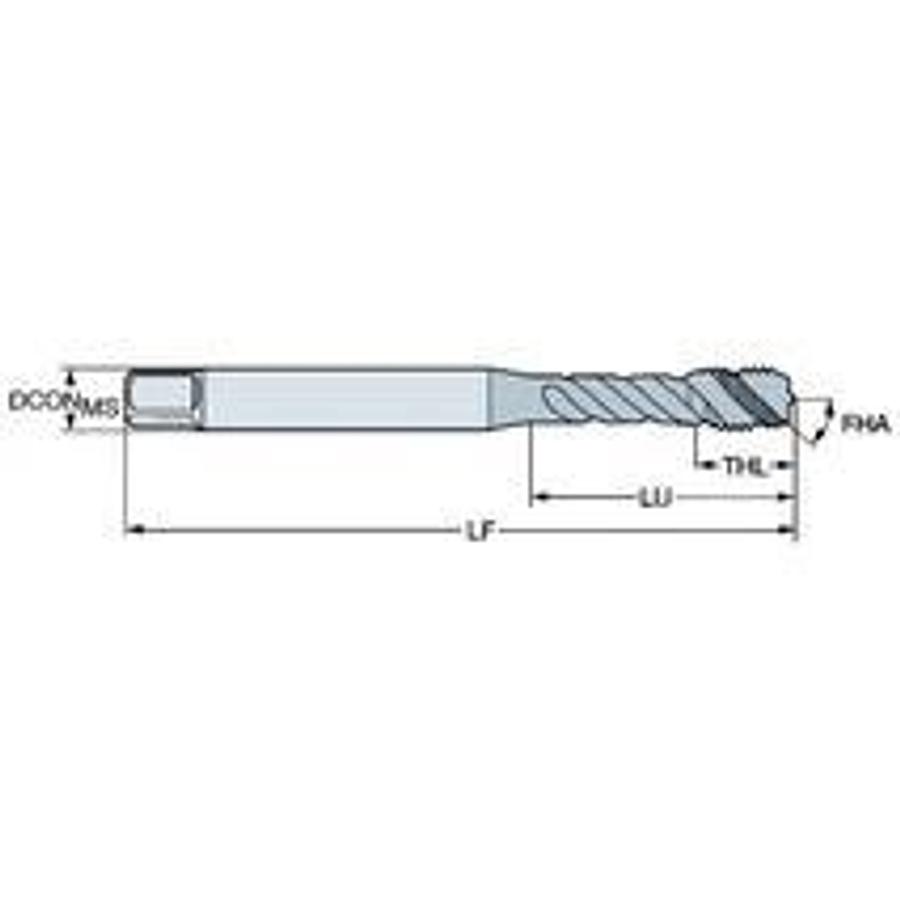

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.318 x 0.238
• Number of chip channels (NOF): 3
• Thread chamfer design (THCHT): C

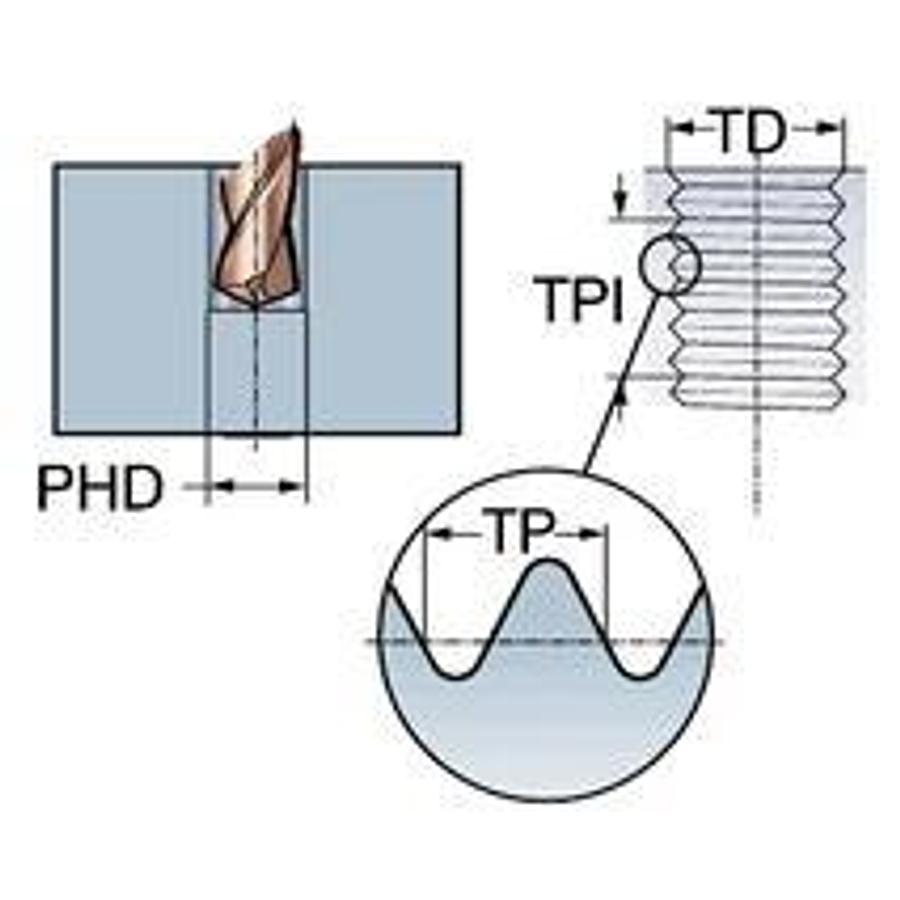

• Output diameter (PHD): 6.6 mm
• Basic Classification (BSG): DIN 2184-1/ANSI
• Coating Process Type: PVD
• DCONMS: 8,0772 mm
• Helix angle (FHA): 45 deg
• Suitability for bottom hole (BHFP): 1
• Functional length (LF): 90 mm
• Number of threads per inch (TPI): 18
• Thread size (TDZ): UNC 5/16-18
• Thread length (THL): 13.1 mm
• Nominal thread diameter (TD): 7.9375 mm
• Thread tolerance class (TCTR): 3BX
• Neck diameter (DN): 5.69 mm
• Manufacturer item number: T300-XM100AE-5/16 C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 34 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 90 mm
• Usable length: 34 mm
• Thread tolerance class TCT: 3BX
