CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

$40 (USD)

Location:Germany

Available quantity:99

Description

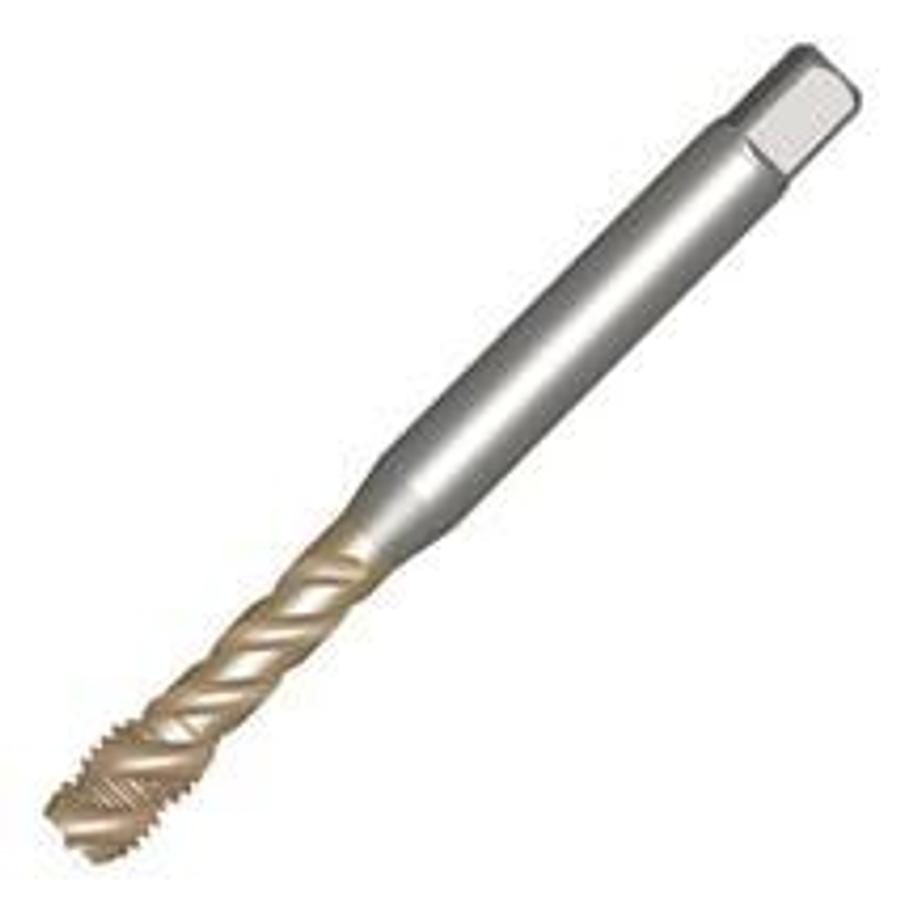

CoroTap™ 300 spiral fluted tap with spiral point

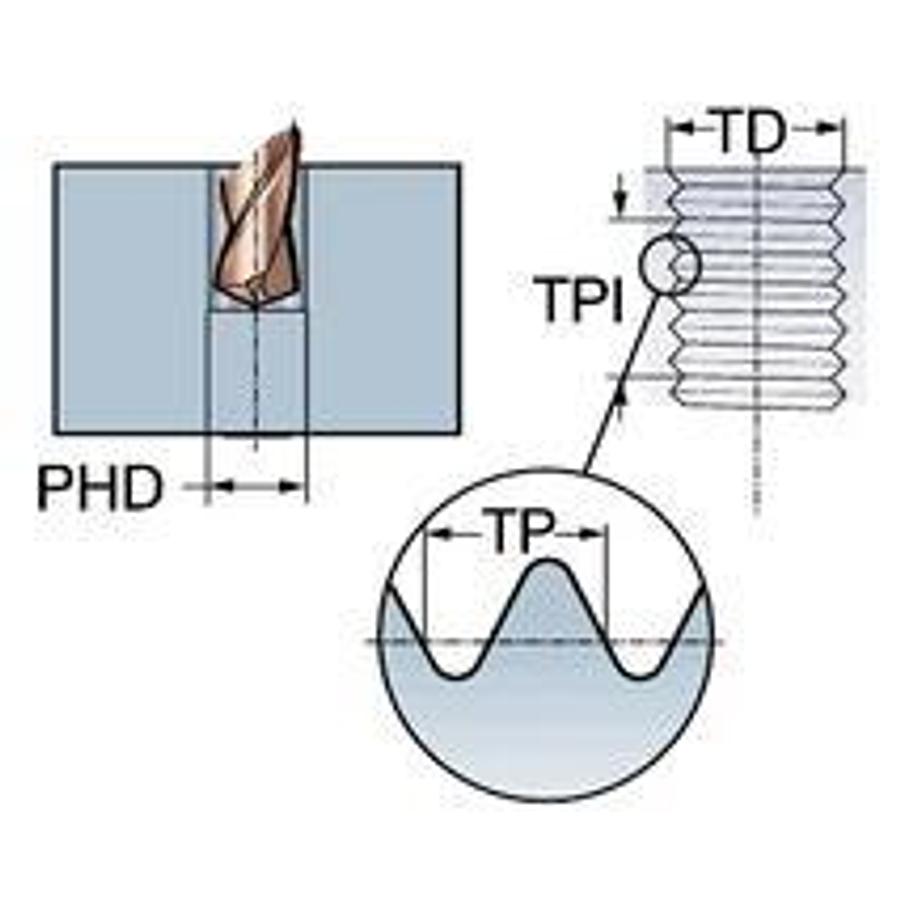

  • Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.141 x 0.110
  • Number of chip channels (NOF): 3
  • Thread chamfer design (THCHT): C
  • Output diameter (PHD): 2.35 mm
  • Basic Classification (BSG): DIN 2184-1/ANSI
  • Coating Process Type: PVD
  • DCONMS: 3,5814 mm
  • Helix angle (FHA): 45 deg
  • Suitability for bottom hole (BHFP): 1
  • Functional length (LF): 56 mm
  • Number of threads per inch (TPI): 40
  • Thread size (TDZ): UNC #4-40
  • Thread length (THL): 7.1 mm
  • Nominal thread diameter (TD): 2.8448 mm
  • Thread tolerance class (TCTR): 3BX
  • Neck diameter (DN): 2.03 mm
  • Manufacturer item number: T300-XM100AE-4-40 C110
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HSS-PM
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Effective length (LU): 17.5 mm
  • Grade: C110
  • Substrate Type: HSS-PM
  • Functional length L: 56 mm
  • Working length: 17.5 mm
  • Thread tolerance class TCT: 3BX


Specifications

ManufacturerSANDVIK COROMANT
ModelT300XM100AE440C110
Year2025
ConditionNew
Stock Number.
