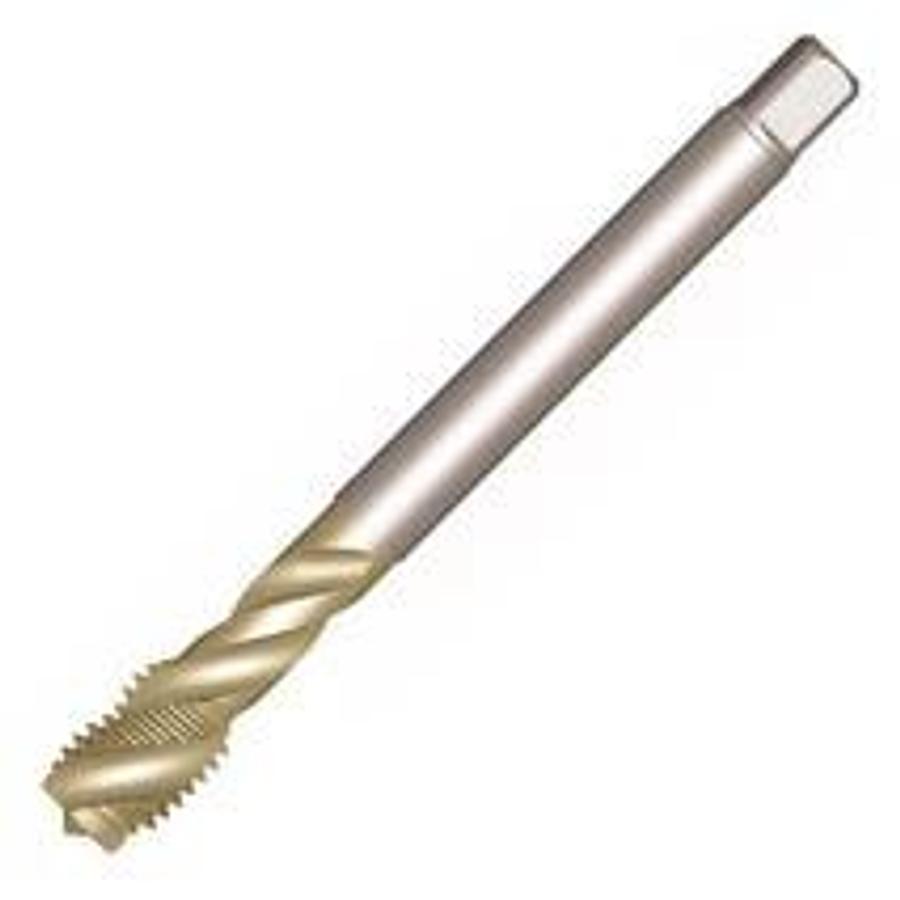

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

CoroTap™ 300 spiral fluted tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.697 x 0.523
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): C

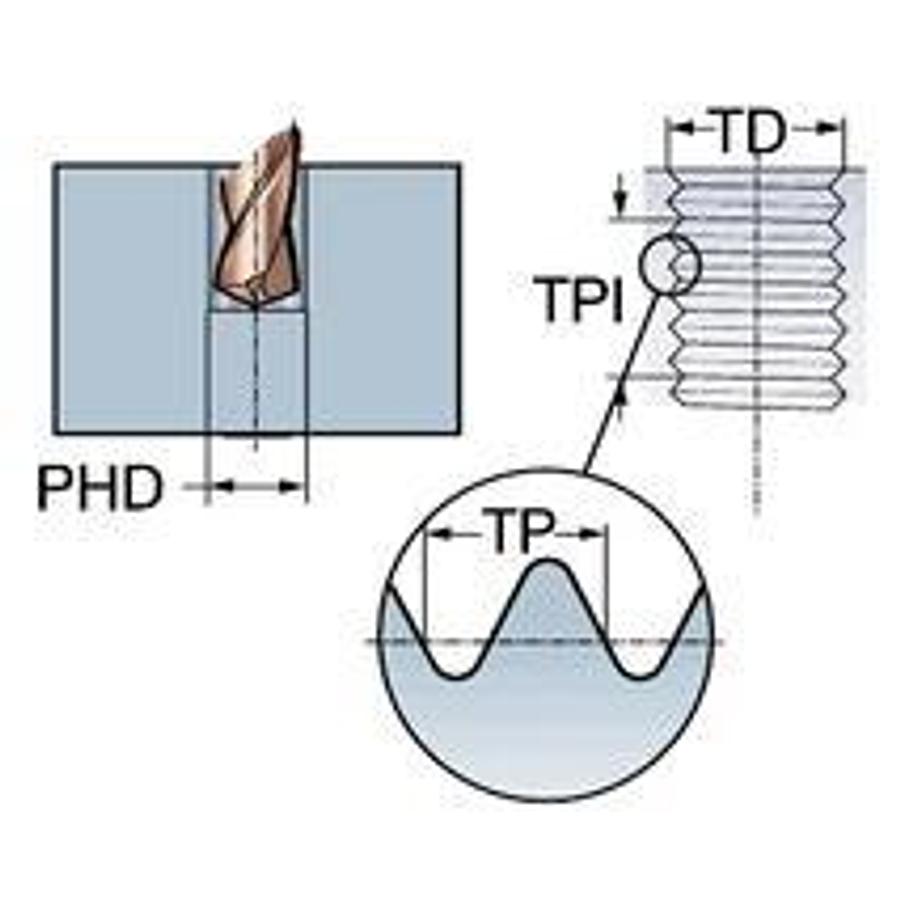

• Output diameter (PHD): 19.5 mm
• Basic Classification (BSG): DIN 2184-1/ANSI
• Coating Process Type: PVD
• DCONMS: 17,7038 mm
• Helix angle (FHA): 45 deg
• Suitability for bottom hole (BHFP): 1
• Functional length (LF): 140 mm
• Number of threads per inch (TPI): 9
• Thread size (TDZ): UNC 7/8-9
• Thread length (THL): 24.9 mm
• Nominal thread diameter (TD): 22.225 mm
• Thread tolerance class (TCTR): 3BX
• Neck diameter (DN): 17.35 mm
• Manufacturer item number: T300-XM101AE-7/8 C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Useful length (LU): 90.95 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 140 mm
• Usable length: 90.95 mm
• Thread tolerance class TCT: 3BX
