CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

$110 (USD)

Location:Germany

Available quantity:99

Description

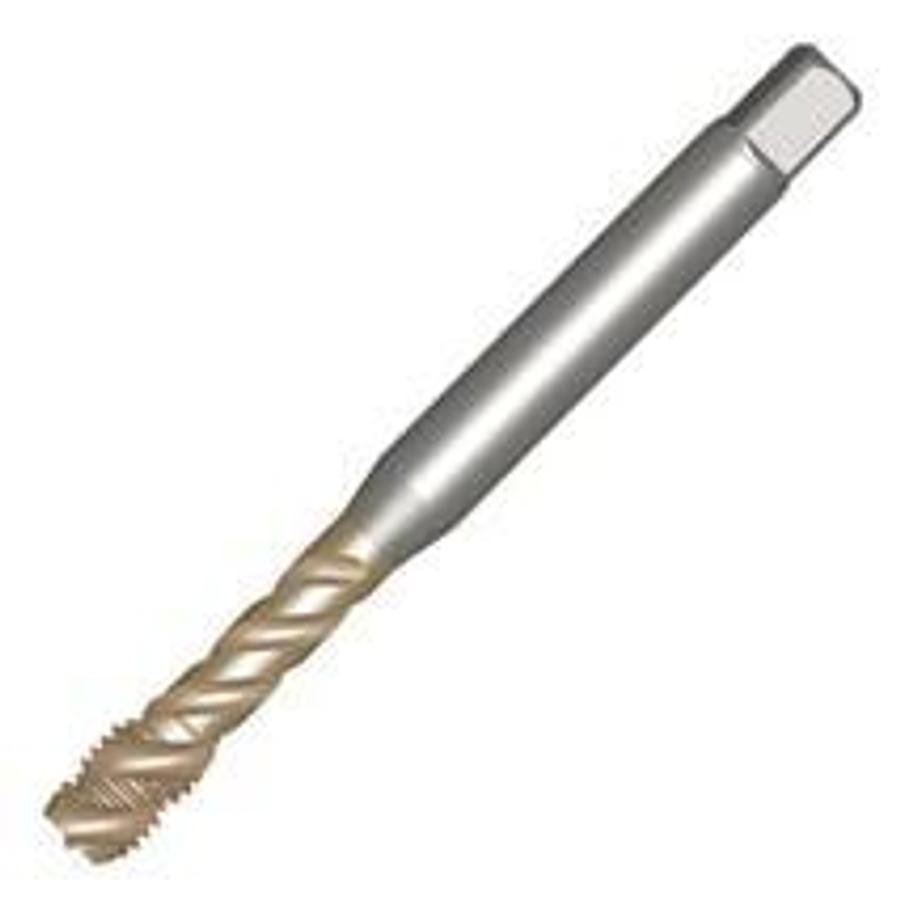

CoroTap™ 300 spiral fluted tap with spiral point


  • Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 12.00 x 9.00
  • Number of chip channels (NOF): 4
  • Thread chamfer design (THCHT): C

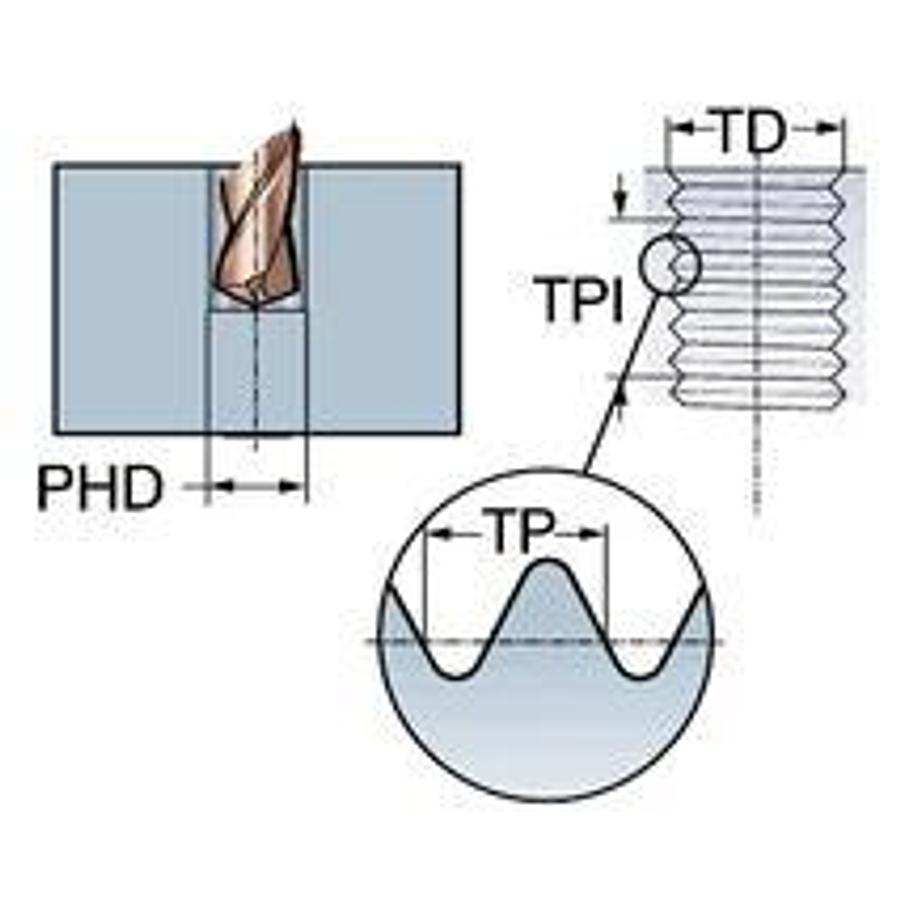

  • Output diameter (PHD): 14.5 mm
  • Basic Classification (BSG): DIN 2184-1
  • Coating Process Type: PVD
  • DCONMS: 12 mm
  • Helix angle (FHA): 45 deg
  • Suitability for bottom hole (BHFP): 1
  • Functional length (LF): 110 mm
  • Number of threads per inch (TPI): 18
  • Thread size (TDZ): UNF 5/8-18
  • Thread length (THL): 20 mm
  • Nominal thread diameter (TD): 15.875 mm
  • Thread tolerance class (TCTR): 2B
  • Neck diameter (DN): 11.6 mm
  • Manufacturer item number: T300-XM101DF-5/8 C110
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HSS-PM
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Usable length (LU): 67.75 mm
  • Grade: C110
  • Substrate Type: HSS-PM
  • Functional length L: 110 mm
  • Usable length: 67.75 mm
  • Thread tolerance class TCT: 2B


Specifications

ManufacturerSANDVIK COROMANT
ModelT300XM101DF58C110
Year2025
ConditionNew
Stock Number.
