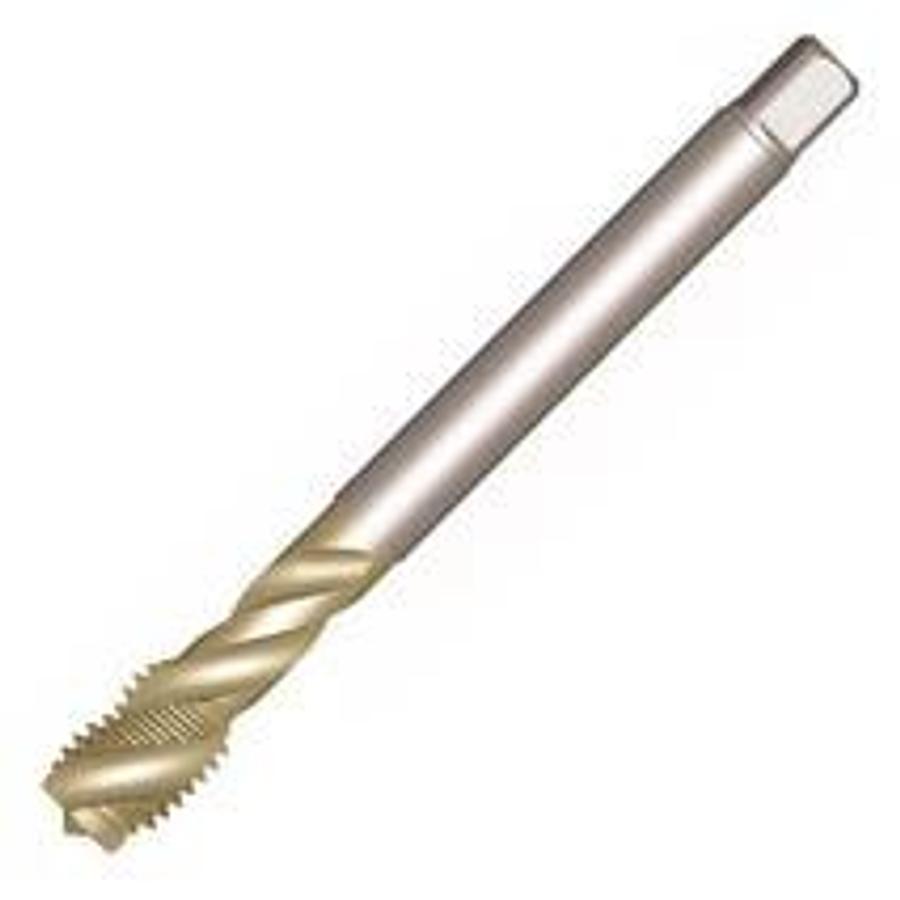

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

CoroTap™ 300 spiral fluted tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.800 x 0.600
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 22.25 mm
• Basic Classification (BSG): DIN 2184-1/ANSI
• Coating Process Type: PVD
• DCONMS: 20.32 mm
• Helix angle (FHA): 45 deg
• Suitability for bottom hole (BHFP): 1
• Functional length (LF): 160 mm
• Number of threads per inch (TPI): 8
• Thread size (TDZ): UNC 1"-8
• Thread length (THL): 30 mm
• Nominal thread diameter (TD): 25.4 mm
• Thread tolerance class (TCTR): 3BX
• Neck diameter (DN): 19.95 mm
• Manufacturer item number: T300-XM101AE-1 C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Effective length (LU): 95.43 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 160 mm
• Usable length: 95.43 mm
• Thread tolerance class TCT: 3BX
