CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

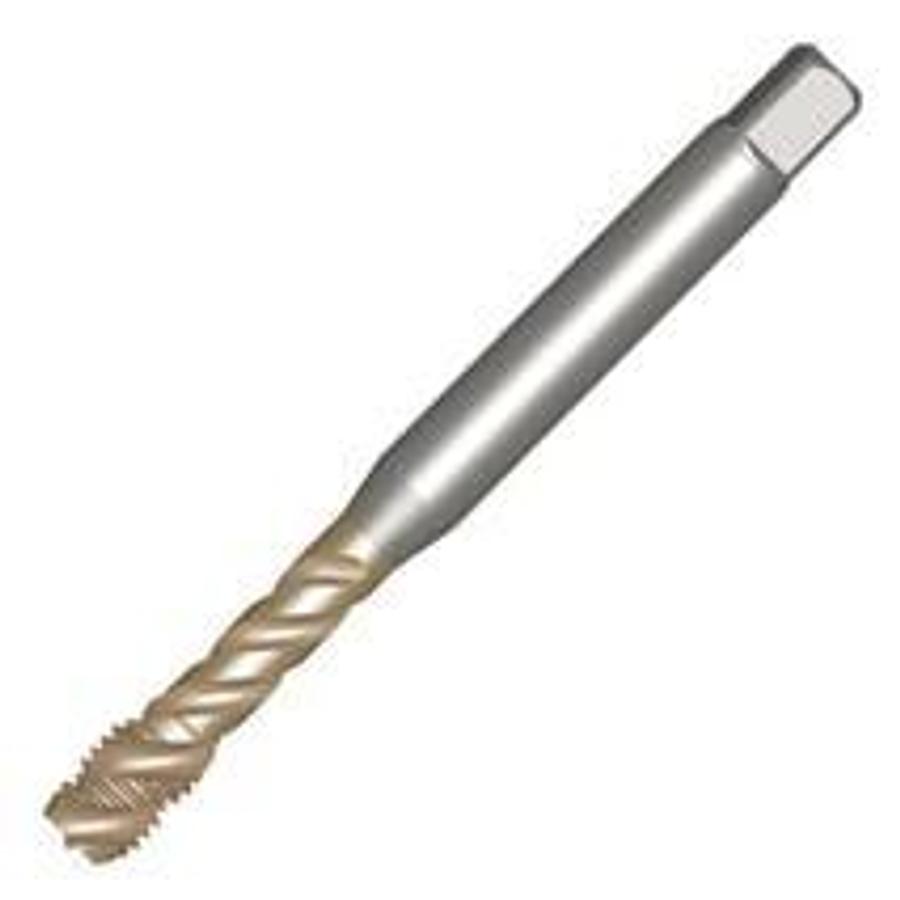

CoroTap™ 300 spiral fluted tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.141 x 0.110
• Number of chip channels (NOF): 3
• Thread chamfer design (THCHT): C

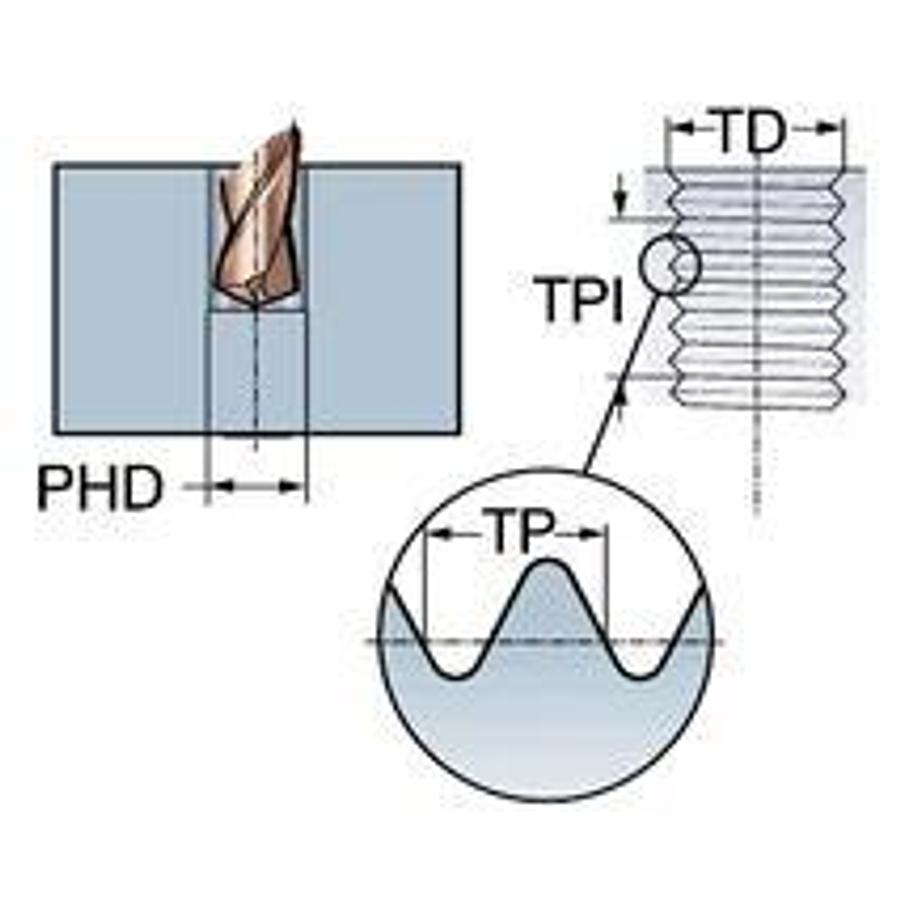

• Output diameter (PHD): 1.85 mm
• Basic Classification (BSG): DIN 2184-1/ANSI
• Coating Process Type: PVD
• DCONMS: 3,5814 mm
• Helix angle (FHA): 48 deg
• Suitability for bottom hole (BHFP): 1
• Functional length (LF): 45 mm
• Number of threads per inch (TPI): 56
• Thread size (TDZ): UNC #2-56
• Thread length (THL): 3.9878 mm
• Nominal thread diameter (TD): 2.1844 mm
• Thread tolerance class (TCTR): 3BX
• Neck diameter (DN): 1.62 mm
• Manufacturer item number: T300-XM100AE-2-56 C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Useful length (LU): 11.9888 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 45 mm
• Useful length: 11.9888 mm
• Thread tolerance class TCT: 3BX
