CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

$150 (USD)

Location:Germany

Available quantity:99

Description

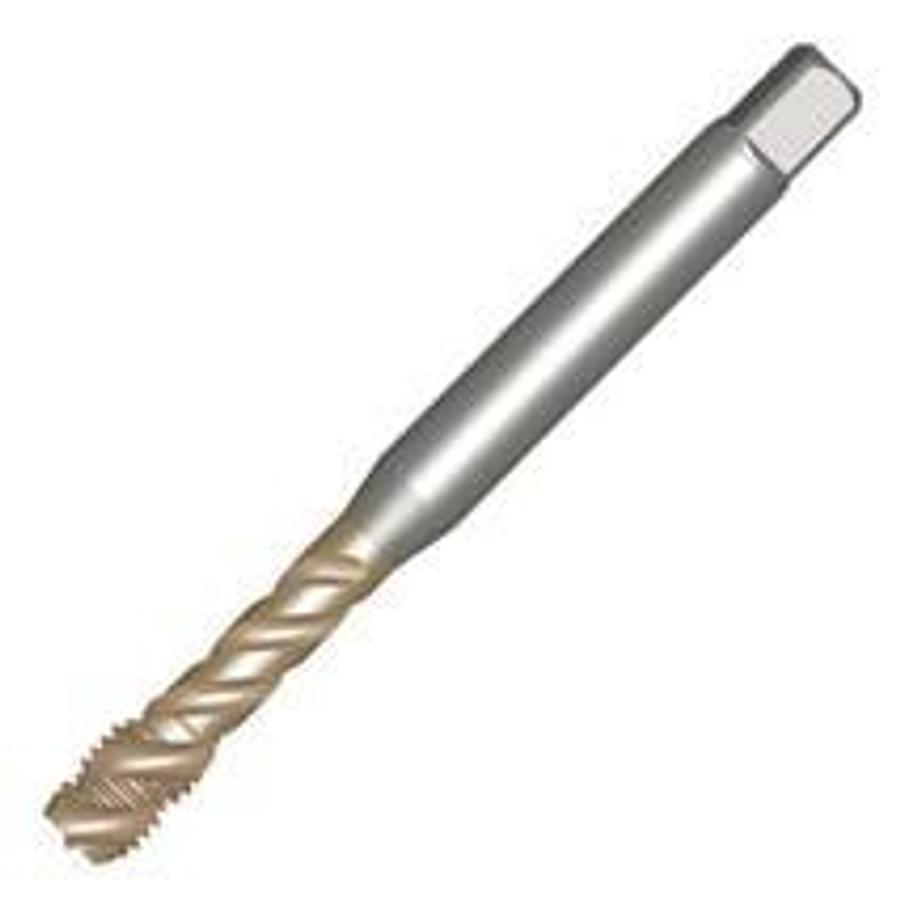

Spiral fluted tap CoroTap 300


  • Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 14.00 x 11.00
  • Number of chip channels (NOF): 4
  • Thread chamfer design (THCHT): C

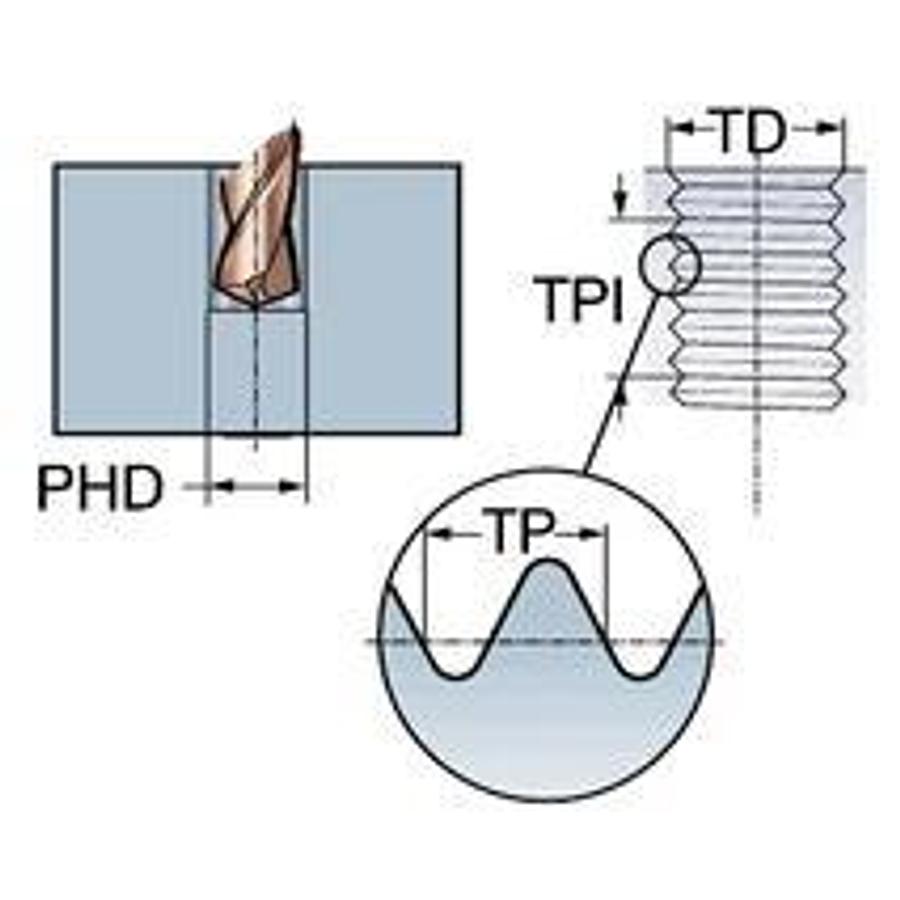

  • Output diameter (PHD): 16.5 mm
  • Basic Classification (BSG): DIN 2184-1
  • Coating Process Type: PVD
  • DCONMS: 14 mm
  • Helix angle (FHA): 45 deg
  • Suitability for bottom hole (BHFP): 1
  • Functional length (LF): 125 mm
  • Number of threads per inch (TPI): 10
  • Thread size (TDZ): UNC 3/4-10
  • Thread length (THL): 25 mm
  • Nominal thread diameter (TD): 19.05 mm
  • Thread tolerance class (TCTR): 2B
  • Neck diameter (DN): 13.6 mm
  • Manufacturer item number: T300-XM101DE-3/4 B110
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HSS-E
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Effective length (LU): 80.75 mm
  • Grade: B110
  • Substrate Type: HSS-E
  • Functional length L: 125 mm
  • Usable length: 80.75 mm
  • Thread tolerance class TCT: 2B


Specifications

ManufacturerSANDVIK COROMANT
ModelT300XM101DE34B110
Year2025
ConditionNew
Stock Number.
