CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - inch version

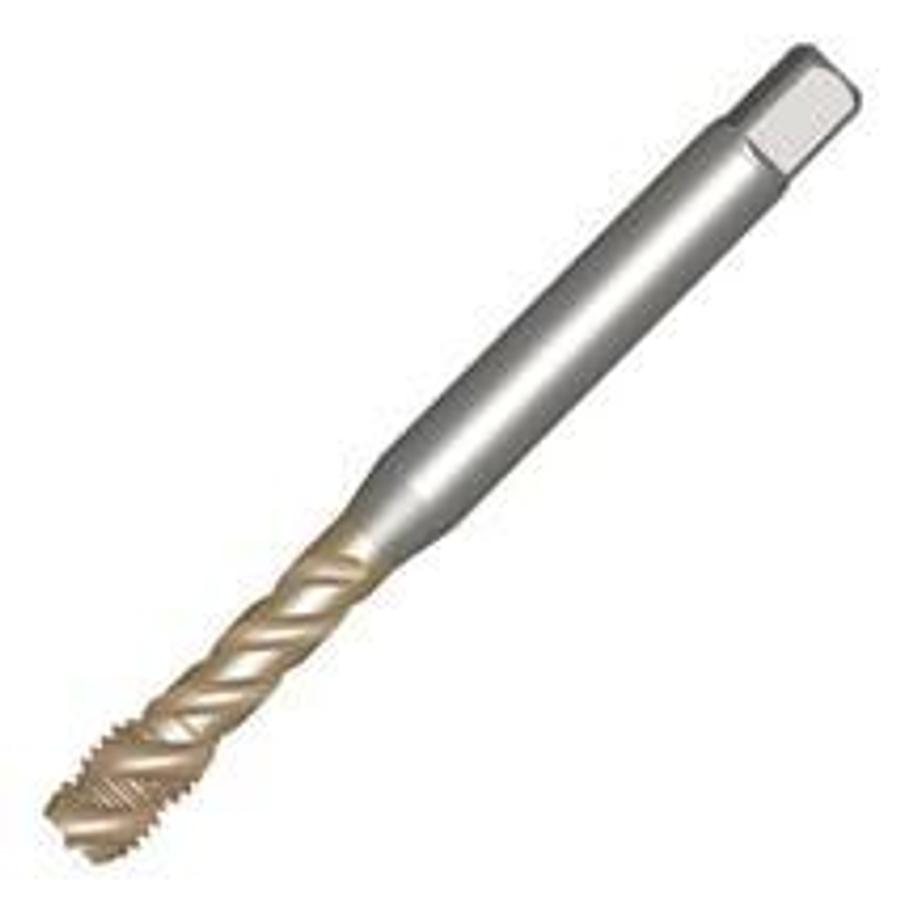

CoroTap™ 300 spiral fluted tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 7.00 x 5.50
• Number of chip channels (NOF): 3
• Thread chamfer design (THCHT): C

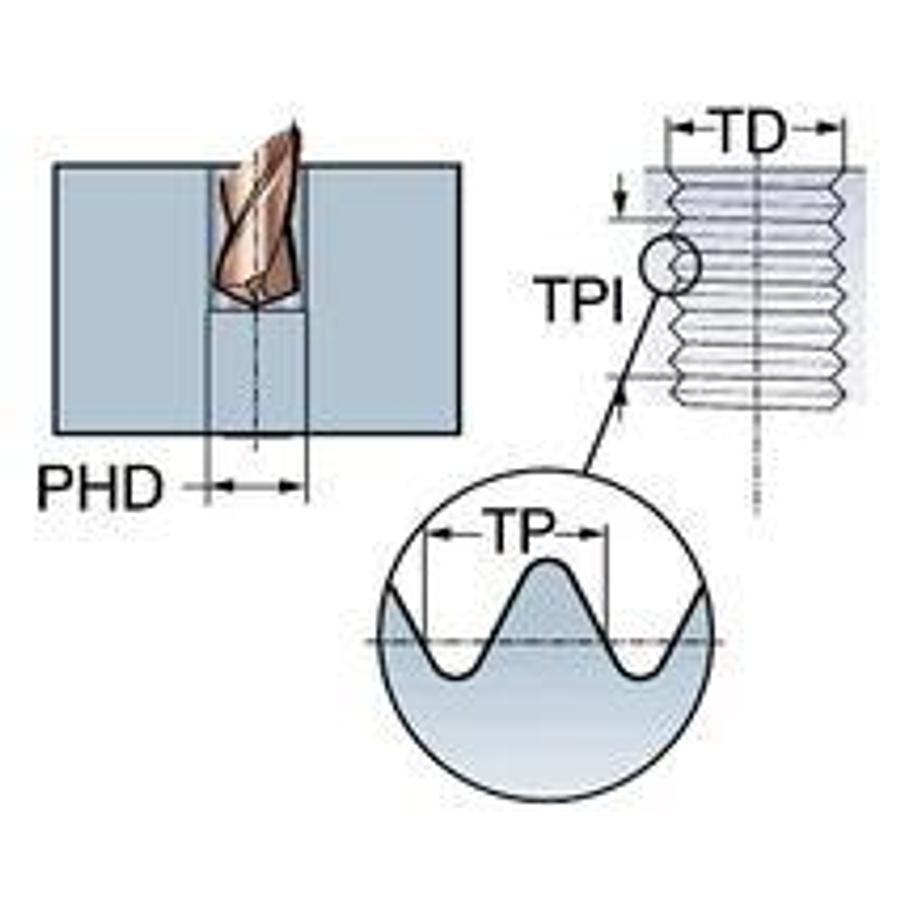

• Output diameter (PHD): 5.1 mm
• Basic Classification (BSG): DIN 2184-1
• Coating Process Type: PVD
• DCONMS: 7 mm
• Helix angle (FHA): 45 deg
• Suitability for bottom hole (BHFP): 1
• Functional length (LF): 80 mm
• Number of threads per inch (TPI): 20
• Thread size (TDZ): UNC 1/4-20
• Thread length (THL): 10 mm
• Nominal thread diameter (TD): 6.35 mm
• Thread tolerance class (TCTR): 2B
• Neck diameter (DN): 4.85 mm
• Manufacturer item number: T300-XM100DE-1/4 C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 30 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 80 mm
• Usable length: 30 mm
• Thread tolerance class TCT: 2B
