CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

$75 (USD)

Location:Germany

Available quantity:99

Description

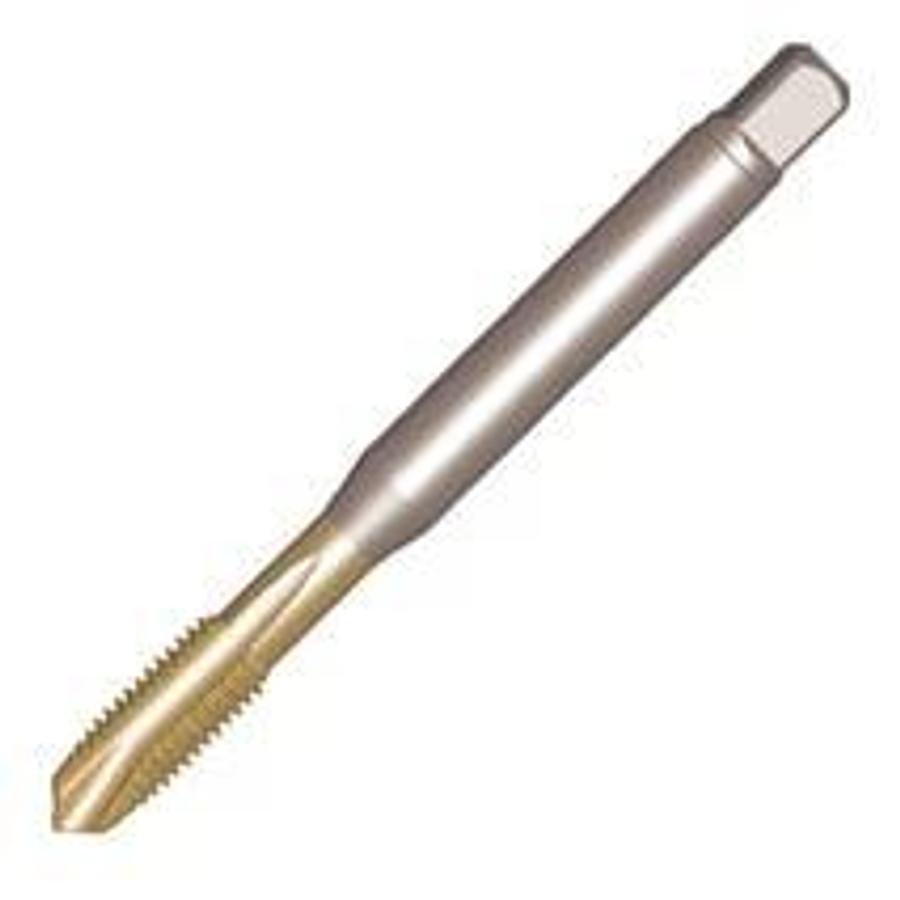

CoroTap™ 200 straight flute tap with spiral point


  • Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 9.00 x 7.00
  • Number of chip channels (NOF): 3
  • Thread chamfer design (THCHT): B
  • Output diameter (PHD): 10.2 mm
  • Basic Classification (BSG): DIN 376
  • Coating Process Type: PVD
  • DCONMS: 9 mm
  • Functional length (LF): 110 mm
  • Thread size (TDZ): M 12
  • Thread length (THL): 23 mm
  • Nominal thread diameter (TD): 12 mm
  • Thread pitch (TP): 1.75 mm
  • Thread tolerance class (TCTR): 6G
  • Neck diameter (DN): 8.6 mm
  • Manufacturer item number: T200-XM105DA-M12 C110
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HSS-PM
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Usable length (LU): 83 mm
  • Grade: C110
  • Substrate Type: HSS-PM
  • Functional length L: 110 mm
  • Usable length: 83 mm
  • Thread tolerance class TCT: 6G


Specifications

ManufacturerSANDVIK COROMANT
ModelT200XM105DAM12C110
Year2025
ConditionNew
Stock Number.
