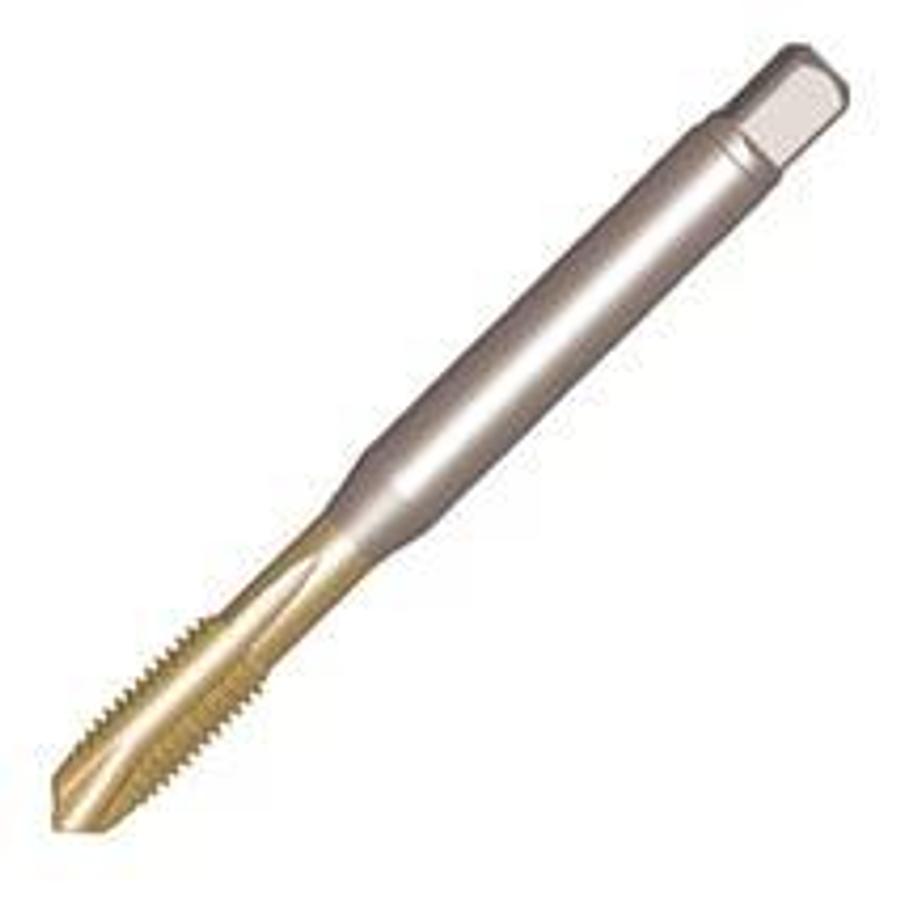

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

$45 (USD)

Location:Germany

Available quantity:99

Description

CoroTap™ 200 straight flute tap with spiral point


  • Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.318 x 0.238
  • Number of chip channels (NOF): 3
  • Thread chamfer design (THCHT): B
  • Output diameter (PHD): 6.8 mm
  • Basic Classification (BSG): DIN 371/ANSI
  • Coating Process Type: PVD
  • DCONMS: 8,0772 mm
  • Functional length (LF): 90 mm
  • Thread size (TDZ): M 8
  • Thread length (THL): 18.9 mm
  • Nominal thread diameter (TD): 8 mm
  • Thread pitch (TP): 1.25 mm
  • Thread tolerance class (TCTR): 6H
  • Neck diameter (DN): 5.69 mm
  • Manufacturer item number: T200-XM100AA-M8 C110
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HSS-PM
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Usable length (LU): 34 mm
  • Grade: C110
  • Substrate Type: HSS-PM
  • Functional length L: 90 mm
  • Usable length: 34 mm
  • Thread tolerance class TCT: 6H


Specifications

ManufacturerSANDVIK COROMANT
ModelT200XM100AAM8C110
Year2025
ConditionNew
Stock Number.
