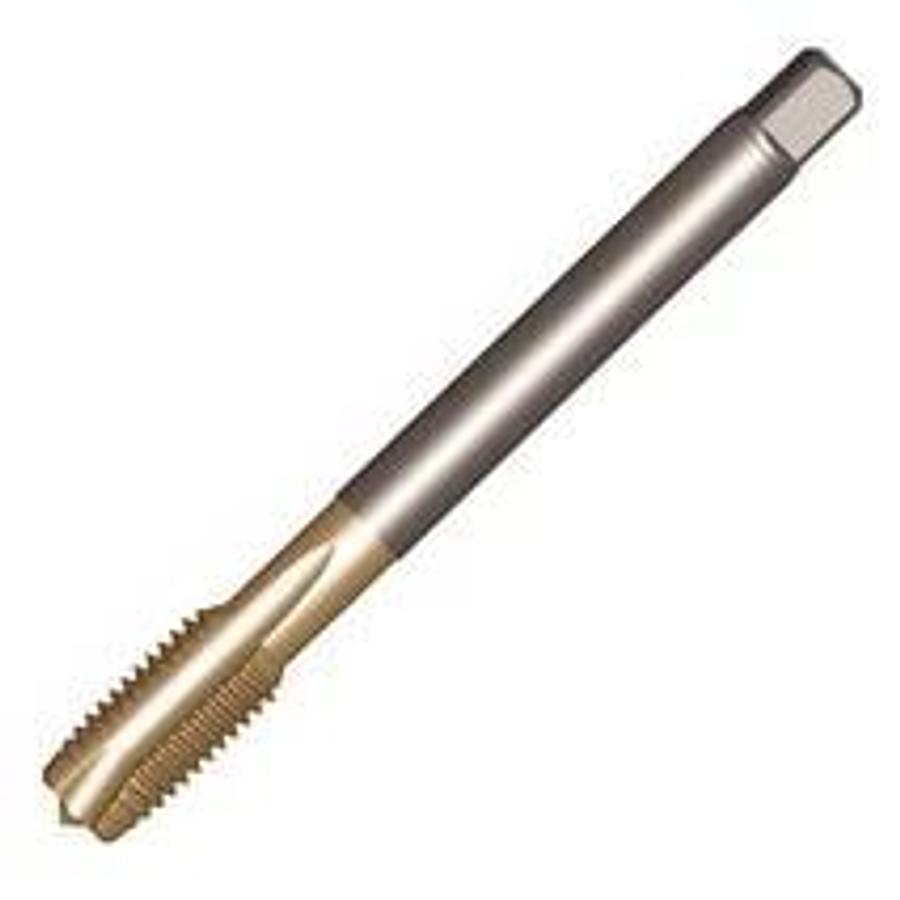

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

CoroTap™ 200 straight flute tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.480 x 0.360
• Number of chip channels (NOF): 3
• Thread chamfer design (THCHT): B
• Output diameter (PHD): 14 mm
• Basic Classification (BSG): DIN 376/ANSI
• Coating Process Type: PVD
• DCONMS: 12,192 mm
• Functional length (LF): 110 mm
• Thread size (TDZ): M 16
• Thread length (THL): 23.1 mm
• Nominal thread diameter (TD): 16 mm
• Thread pitch (TP): 2 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 11.85 mm
• Manufacturer item number: T200-XM101AA-M16 C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Useful length (LU): 65.78 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 110 mm
• Usable length: 65.78 mm
• Thread tolerance class TCT: 6H
