CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

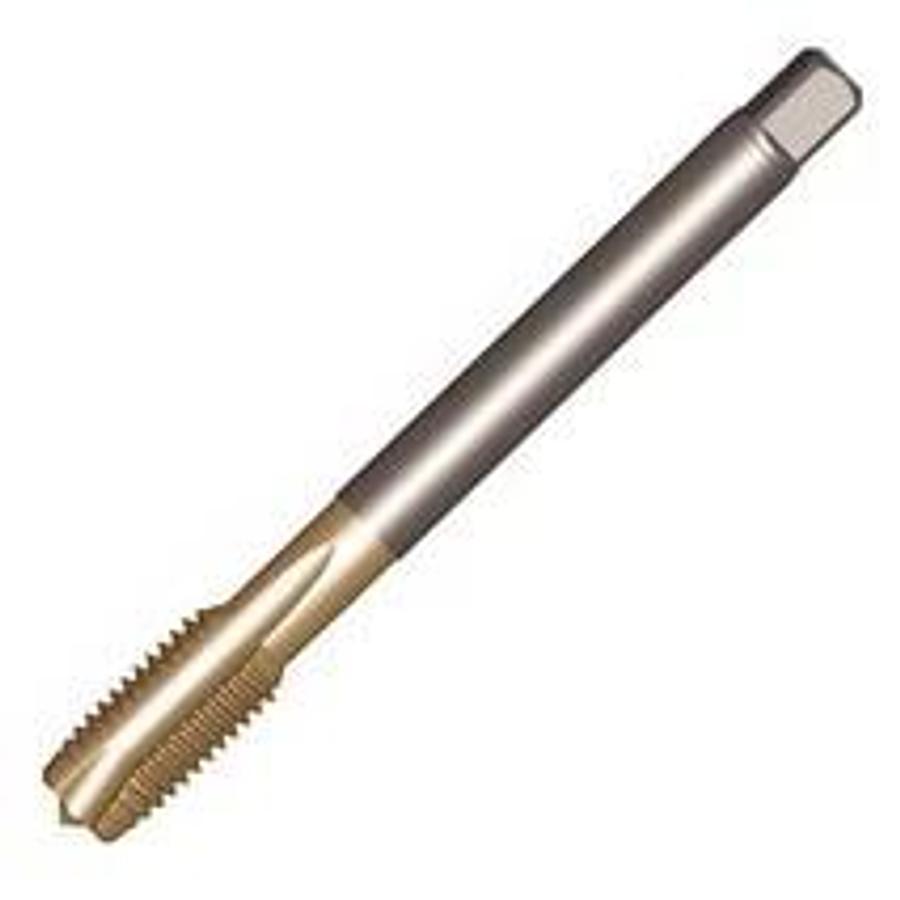

CoroTap™ 200 straight flute tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 14.00 x 11.00
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): B
• Output diameter (PHD): 16.5 mm
• Basic Classification (BSG): DIN 374
• Coating Process Type: PVD
• DCONMS: 14 mm
• Functional length (LF): 110 mm
• Thread size (TDZ): MF 18x1.5
• Thread length (THL): 24 mm
• Nominal thread diameter (TD): 18 mm
• Thread pitch (TP): 1.5 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 13.6 mm
• Manufacturer item number: T200-XM100DB-M18X150B110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-E
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Usable length (LU): 66 mm
• Grade: B110
• Substrate Type: HSS-E
• Functional length L: 110 mm
• Usable length: 66 mm
• Thread tolerance class TCT: 6H
