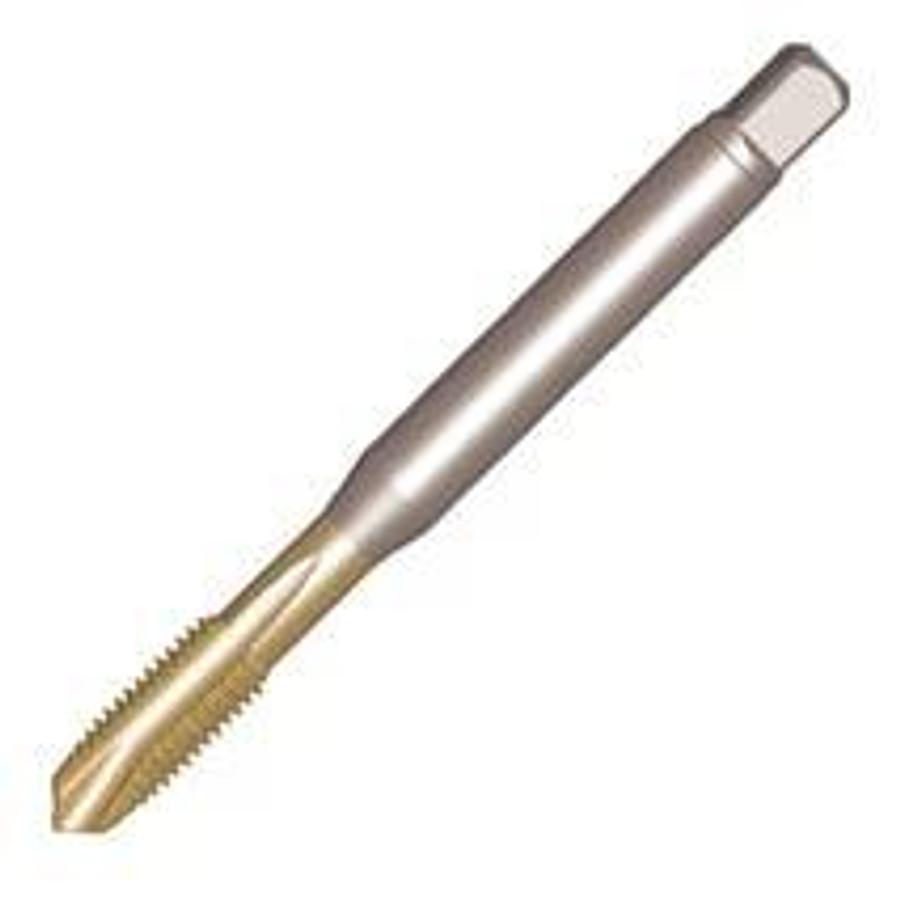

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

CoroTap™ 200 straight flute tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 22.00 x 18.00
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): B
• Output diameter (PHD): 26.5 mm
• Basic Classification (BSG): DIN 376
• Coating Process Type: PVD
• DCONMS: 22 mm
• Functional length (LF): 180 mm
• Thread size (TDZ): M 30
• Thread length (THL): 45 mm
• Nominal thread diameter (TD): 30 mm
• Thread pitch (TP): 3.5 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 21.6 mm
• Manufacturer item number: T200-XM101DA-M30 B110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-E
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 115 mm
• Grade: B110
• Substrate Type: HSS-E
• Functional length L: 180 mm
• Usable length: 115 mm
• Thread tolerance class TCT: 6H
