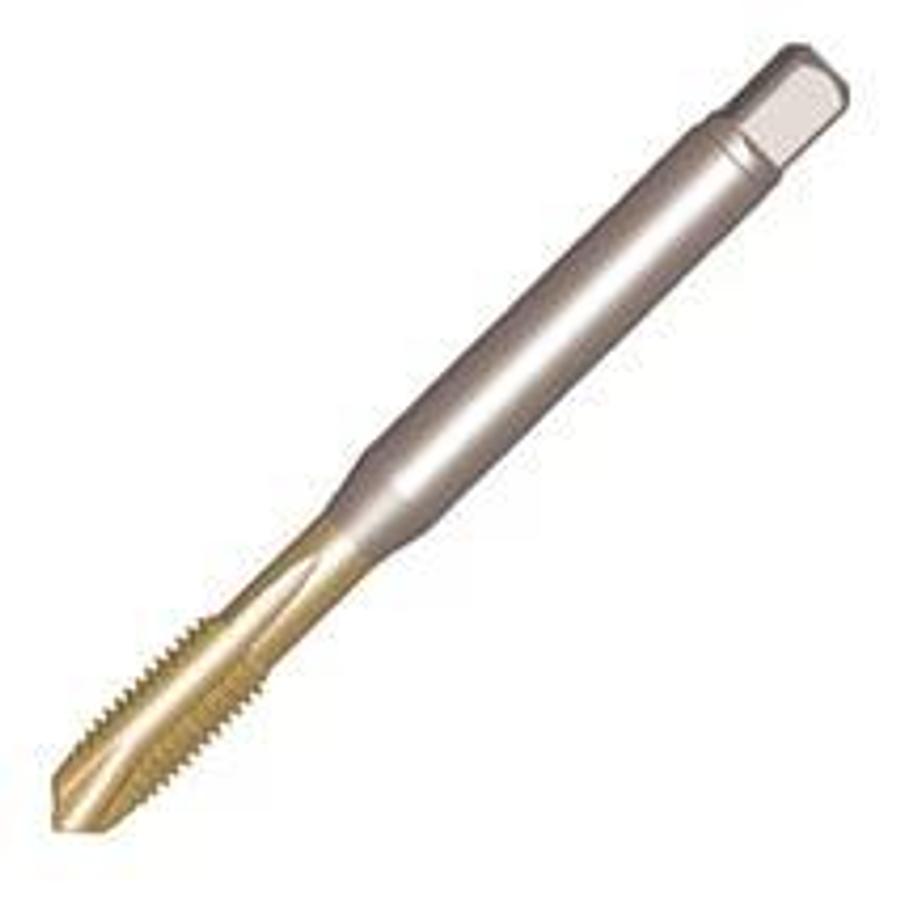

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

CoroTap™ 200 straight flute tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 8.00 x 6.20
• Number of chip channels (NOF): 3
• Thread chamfer design (THCHT): B
• Output diameter (PHD): 6.8 mm
• Basic Classification (BSG): DIN 371
• Coating Process Type: PVD
• DCONMS: 8 mm
• Functional length (LF): 90 mm
• Thread size (TDZ): M 8
• Thread length (THL): 18 mm
• Nominal thread diameter (TD): 8 mm
• Thread pitch (TP): 1.25 mm
• Thread tolerance class (TCTR): 6G
• Neck diameter (DN): 5.96 mm
• Manufacturer item number: T200-XM104DA-M8 C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 35 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 90 mm
• Usable length: 35 mm
• Thread tolerance class TCT: 6G
