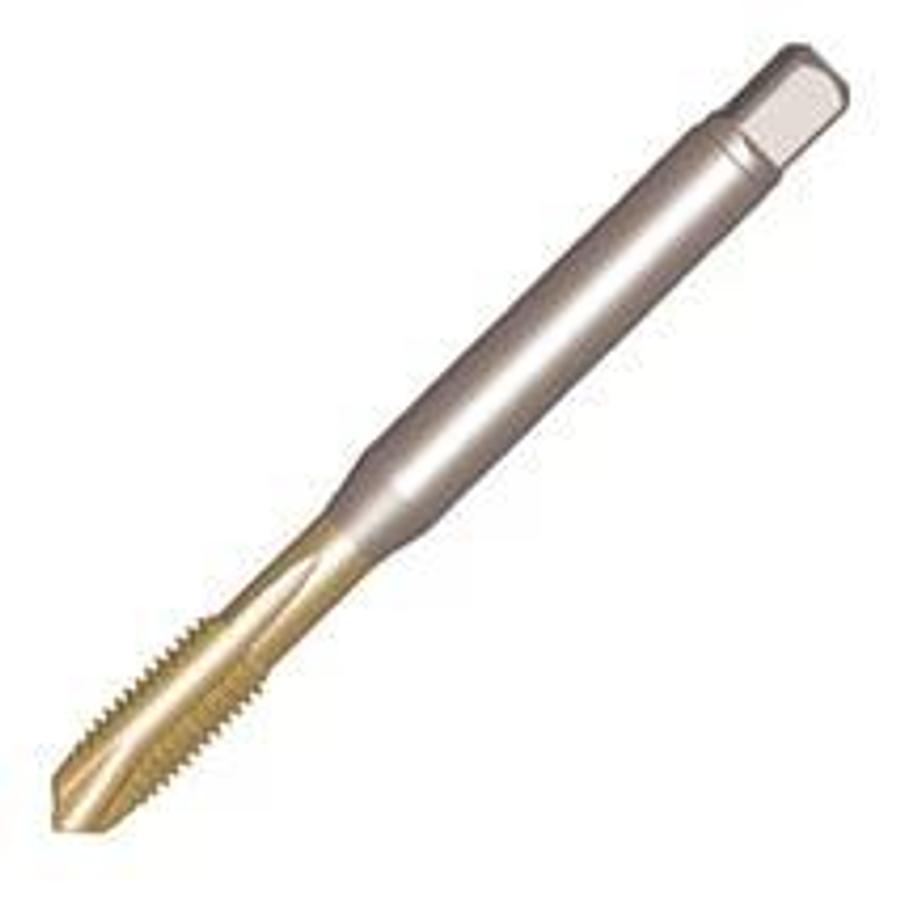

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

CoroTap™ 200 straight flute tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 2.80 x 2.10
• Number of chip channels (NOF): 2
• Thread chamfer design (THCHT): B
• Output diameter (PHD): 2.05 mm
• Basic Classification (BSG): DIN 371
• Coating Process Type: PVD
• DCONMS: 2.8 mm
• Functional length (LF): 50 mm
• Thread size (TDZ): M 2.5
• Thread length (THL): 8 mm
• Nominal thread diameter (TD): 2.5 mm
• Thread pitch (TP): 0.45 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 1.95 mm
• Manufacturer item number: T200-XM100DA-M2.5 C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Effective length (LU): 12.5 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 50 mm
• Working length: 12.5 mm
• Thread tolerance class TCT: 6H
