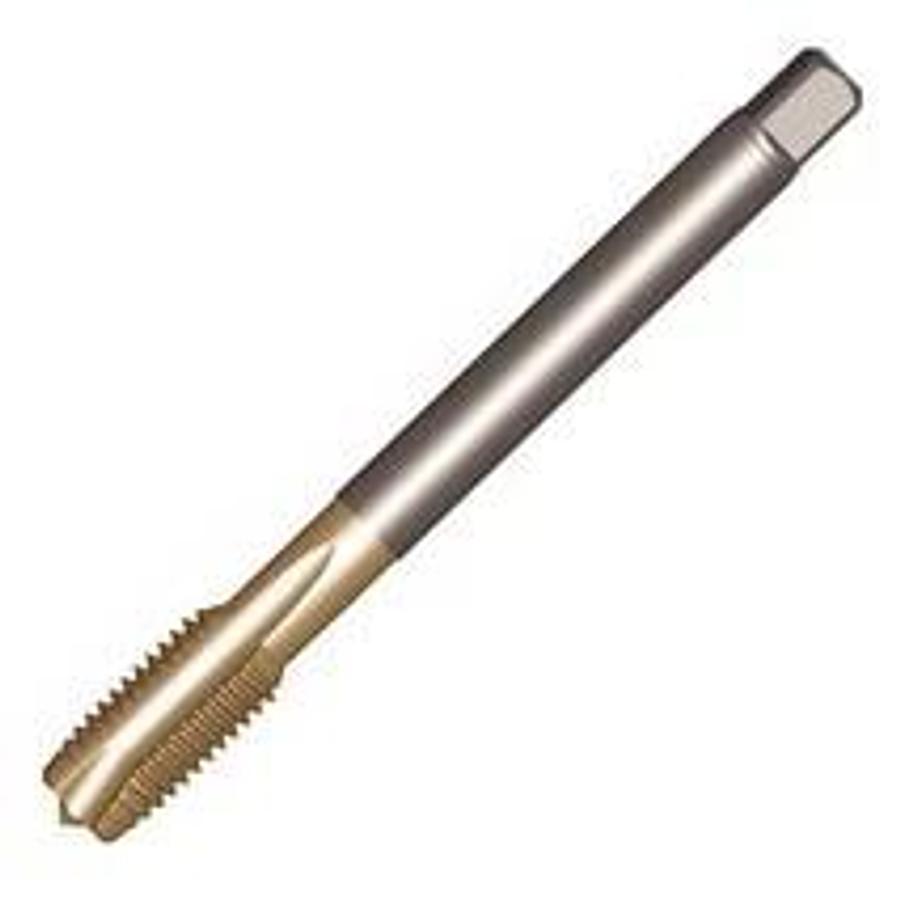

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

CoroTap 200 tap for ISO PMKNS / DL - 2.5 x D - B 3.5 - 5 - Metric version

$70 (USD)

Location:Germany

Available quantity:99

Description

Spiral tip tap CoroTap 200

  • Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 7.00 x 5.50
  • Number of chip channels (NOF): 3
  • Thread chamfer design (THCHT): B
  • Output diameter (PHD): 9 mm
  • Basic Classification (BSG): DIN 374
  • Coating Process Type: PVD
  • DCONMS: 7 mm
  • Functional length (LF): 90 mm
  • Thread size (TDZ): MF 10x1
  • Thread length (THL): 17.6 mm
  • Nominal thread diameter (TD): 10 mm
  • Thread pitch (TP): 1 mm
  • Thread tolerance class (TCTR): 6H
  • Neck diameter (DN): 6.7 mm
  • Manufacturer item number: T200-XM100DB-M10X100C110
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HSS-PM
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Backward flattened teeth (THBTP): 1
  • Usable length (LU): 67 mm
  • Grade: C110
  • Substrate Type: HSS-PM
  • Functional length L: 90 mm
  • Usable length: 67 mm
  • Thread tolerance class TCT: 6H



Specifications

ManufacturerSANDVIK COROMANT
ModelT200XM100DBM10X100C110
Year2025
ConditionNew
Stock Number.
