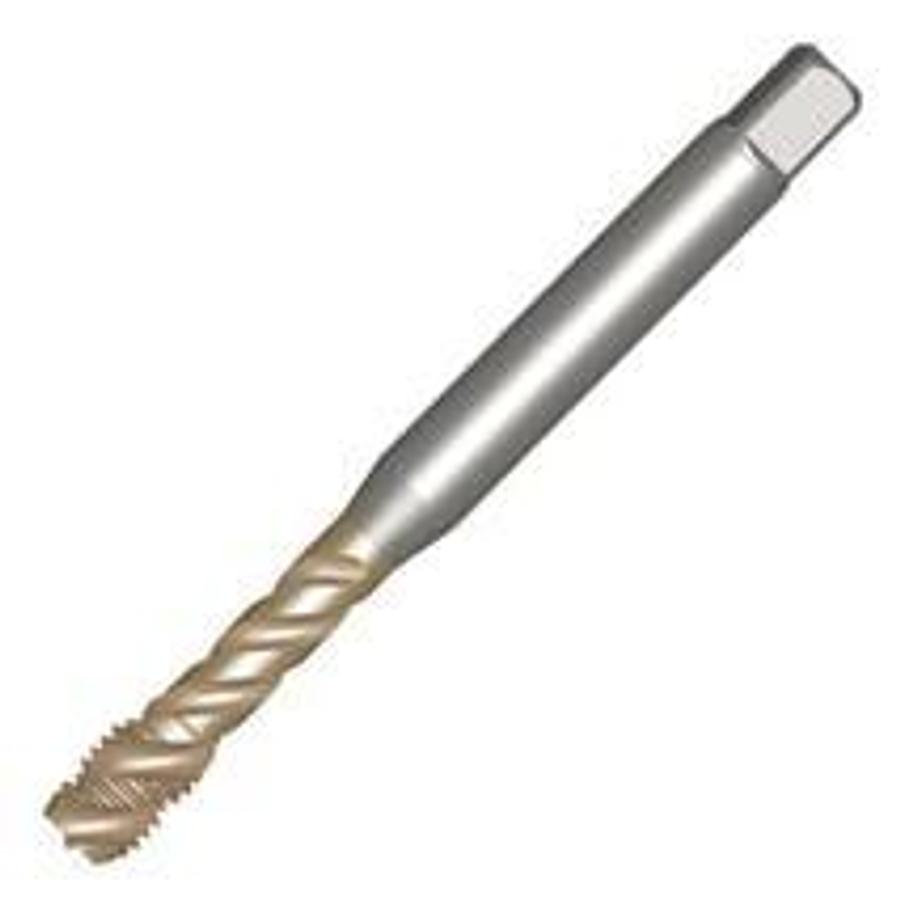

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - Metric version

CoroTap™ 300 spiral fluted tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.381 x 0.286
• Number of chip channels (NOF): 3
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 9 mm
• Basic Classification (BSG): DIN 374/ANSI
• Coating Process Type: PVD
• DCONMS: 9.6774 mm
• Helix angle (FHA): 45 deg
• Suitability for bottom hole (BHFP): 1
• Functional length (LF): 90 mm
• Thread size (TDZ): MF 10x1
• Thread length (THL): 13 mm
• Nominal thread diameter (TD): 10 mm
• Thread pitch (TP): 1 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 7.3 mm
• Manufacturer item number: T300-XM100AB-M10X100C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 37.5 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 90 mm
• Usable length: 37.5 mm
• Thread tolerance class TCT: 6H
