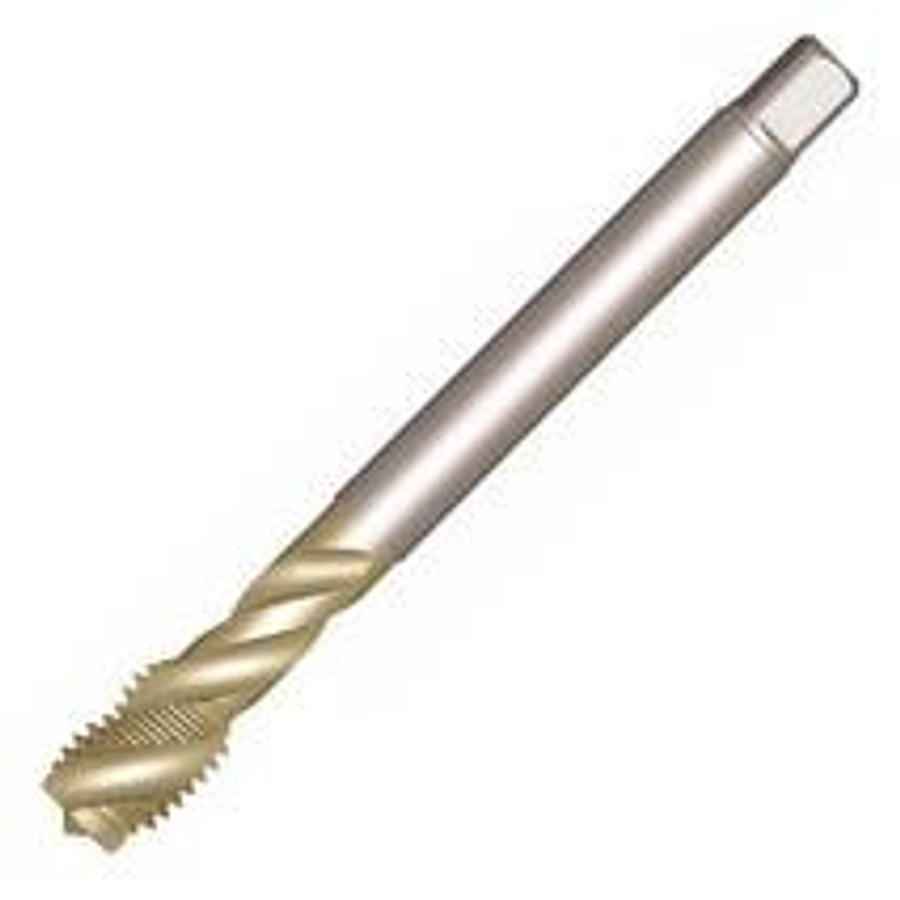

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - Metric version

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - Metric version

$165 (USD)

Location:Germany

Available quantity:99

Description

CoroTap™ 300 spiral fluted tap with spiral point


  • Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.652 x 0.489
  • Number of chip channels (NOF): 4
  • Thread chamfer design (THCHT): C
  • Output diameter (PHD): 17.5 mm
  • Basic Classification (BSG): DIN 376/ANSI
  • Coating Process Type: PVD
  • DCONMS: 16,5608 mm
  • Helix angle (FHA): 45 deg
  • Suitability for bottom hole (BHFP): 1
  • Functional length (LF): 140 mm
  • Thread size (TDZ): M 20
  • Thread length (THL): 24.9 mm
  • Nominal thread diameter (TD): 20 mm
  • Thread pitch (TP): 2.5 mm
  • Thread tolerance class (TCTR): 6H
  • Neck diameter (DN): 16.2 mm
  • Manufacturer item number: T300-XM101AA-M20 C110
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HSS-PM
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Useful length (LU): 92.47 mm
  • Grade: C110
  • Substrate Type: HSS-PM
  • Functional length L: 140 mm
  • Usable length: 92.47 mm
  • Thread tolerance class TCT: 6H


Specifications

ManufacturerSANDVIK COROMANT
ModelT300XM101AAM20C110
Year2025
ConditionNew
