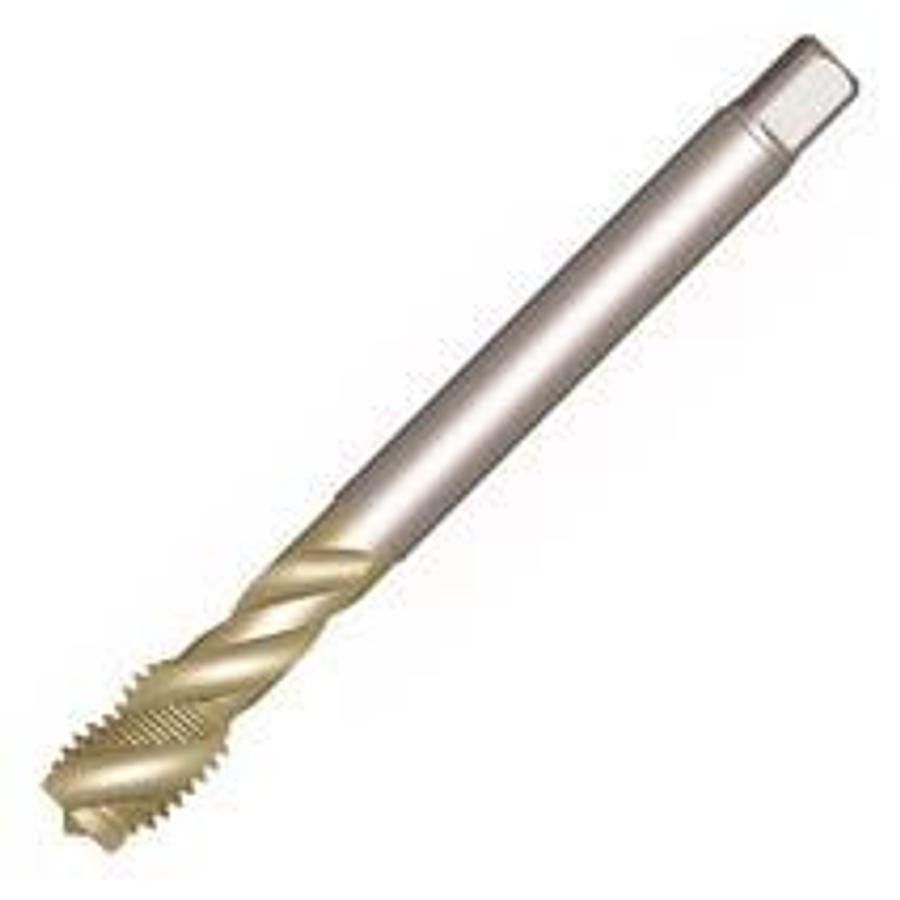

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - Metric version

CoroTap™ 300 spiral fluted tap with spiral point

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 7.00 x 5.50
• Number of chip channels (NOF): 3
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 8.8 mm
• Basic Classification (BSG): DIN 374
• Coating Process Type: PVD
• DCONMS: 7 mm
• Helix angle (FHA): 45 deg
• Suitability for bottom hole (BHFP): 1
• Functional length (LF): 100 mm
• Thread size (TDZ): MF 10x1.25
• Thread length (THL): 15 mm
• Nominal thread diameter (TD): 10 mm
• Thread pitch (TP): 1.25 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 6.7 mm
• Manufacturer item number: T300-XM100DB-M10X125C110
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 77 mm
• Grade: C110
• Substrate Type: HSS-PM
• Functional length L: 100 mm
• Usable length: 77 mm
• Thread tolerance class TCT: 6H
