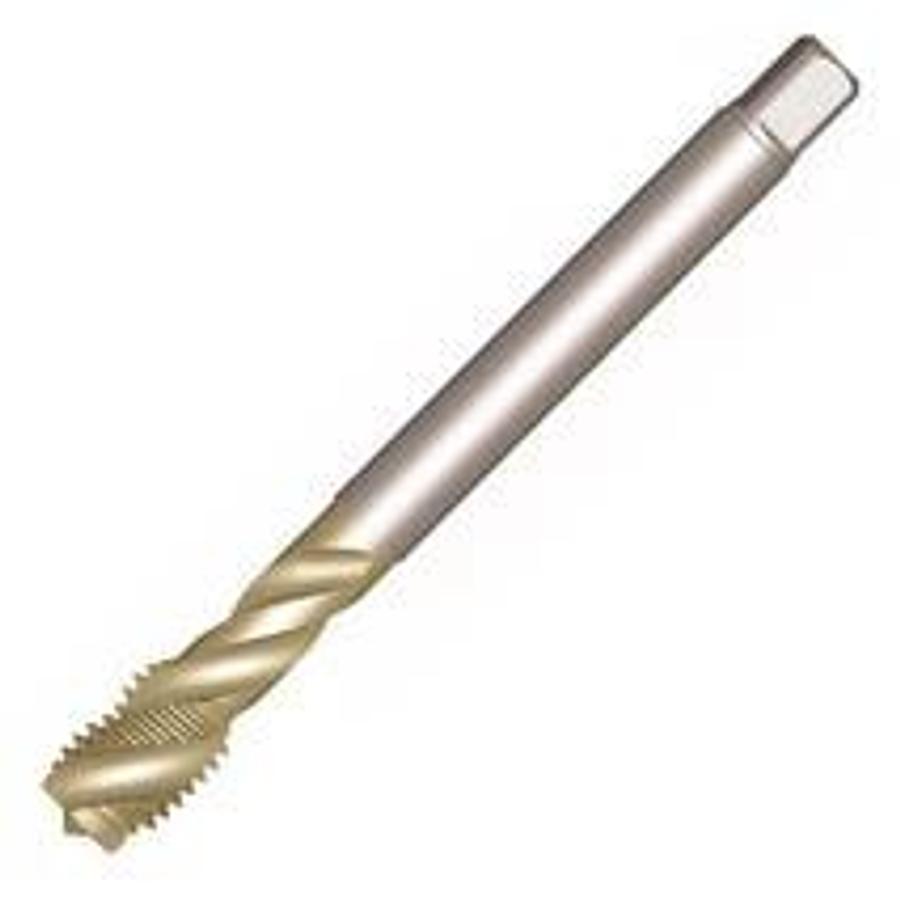

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - Metric version
CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - Metric version
$60 (USD)
Location:Germany
Available quantity:99
or
Call +971 58 579 4328
Description
Spiral fluted tap CoroTap 300
- Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 6.00 x 4.90
- Number of chip channels (NOF): 3
- Thread chamfer design (THCHT): C
- Output diameter (PHD): 7 mm
- Basic Classification (BSG): DIN 374
- Coating Process Type: PVD
- DCONMS: 6 mm
- Helix angle (FHA): 45 deg
- Suitability for bottom hole (BHFP): 1
- Functional length (LF): 90 mm
- Thread size (TDZ): MF 8x1
- Thread length (THL): 13 mm
- Nominal thread diameter (TD): 8 mm
- Thread pitch (TP): 1 mm
- Thread tolerance class (TCTR): 6H
- Neck diameter (DN): 5.7 mm
- Manufacturer item number: T300-XM100DB-M8X100 C110
- Manufacturer: SANDVIK COROMANT
- IC Code: 70200
- ISO Cutting Tool Material: HSS-PM
- Coolant inlet (CNSC): 0: without coolant
- Life Cycle Status (LCS): 20
- Usable length (LU): 67 mm
- Grade: C110
- Substrate Type: HSS-PM
- Functional length L: 90 mm
- Usable length: 67 mm
- Thread tolerance class TCT: 6H
Specifications
| Manufacturer | SANDVIK COROMANT |
| Model | T300XM100DBM8X100C110 |
| Year | 2025 |
| Condition | New |
| Serial Number | 520 T300-XM100DB-M8X100 C110 |
| Stock Number | . |
