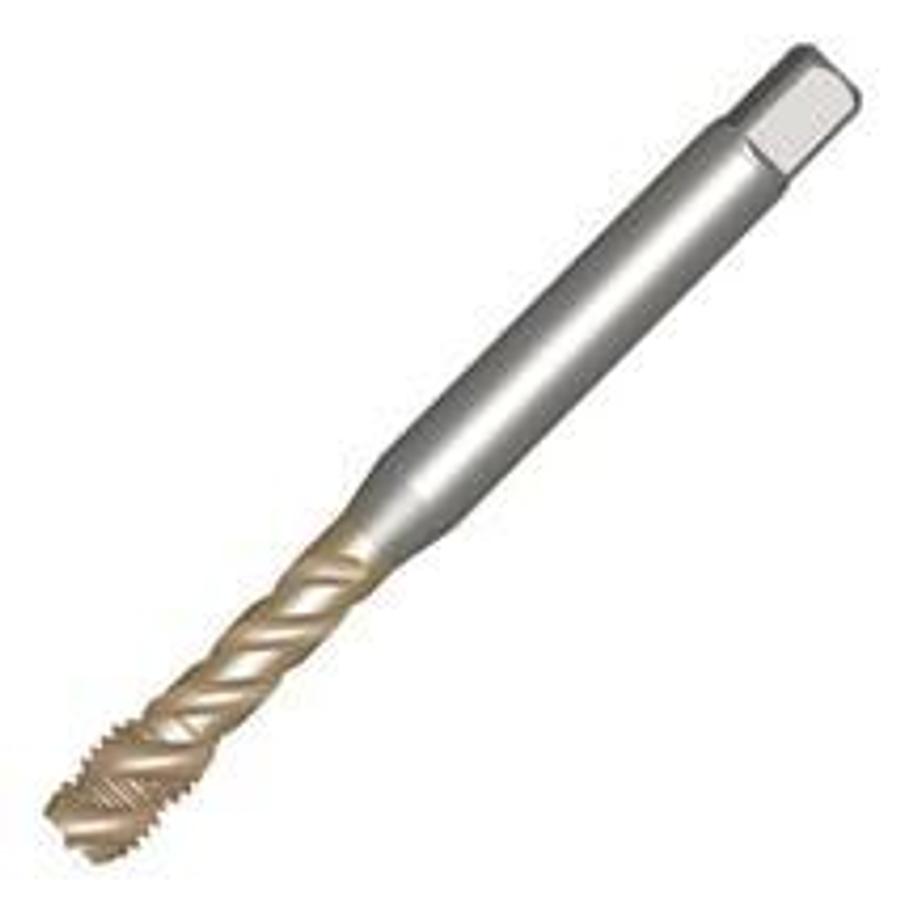

CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - Metric version
CoroTap 300 tap for ISO PMKNS / SL - 2.5 x D - C 2 - 3 - Metric version
$60 (USD)
Location:Germany
Available quantity:99
or
Call +971 58 579 4328
Description
- CoroTap™ 300 spiral fluted tap with spiral pointAdapter interface machine direction (ADINTMS): Tap shank DIN -metric: 10.00 x 8.00
- Number of chip channels (NOF): 3
- Thread chamfer design (THCHT): C
- Output diameter (PHD): 8.5 mm
- Basic Classification (BSG): DIN 371
- Coating Process Type: PVD
- DCONMS: 10 mm
- Helix angle (FHA): 45 deg
- Suitability for bottom hole (BHFP): 1
- Functional length (LF): 100 mm
- Thread size (TDZ): M 10
- Thread length (THL): 15.1 mm
- Nominal thread diameter (TD): 10 mm
- Thread pitch (TP): 1.5 mm
- Thread tolerance class (TCTR): 6H
- Neck diameter (DN): 8.2 mm
- Manufacturer item number: T300-XM100DA-M10 C110
- Manufacturer: SANDVIK COROMANT
- IC Code: 70200
- ISO Cutting Tool Material: HSS-PM
- Coolant inlet (CNSC): 0: without coolant
- Life Cycle Status (LCS): 20
- Usable length (LU): 39 mm
- Grade: C110
- Substrate Type: HSS-PM
- Functional length L: 100 mm
- Usable length: 39 mm
- Thread tolerance class TCT: 6H
Specifications
| Manufacturer | SANDVIK COROMANT |
| Model | T300XM100DAM10C110 |
| Year | 2025 |
| Condition | New |
| Serial Number | 520 T300-XM100DA-M10 C110 |
| Stock Number | . |
