CoroDrill 452

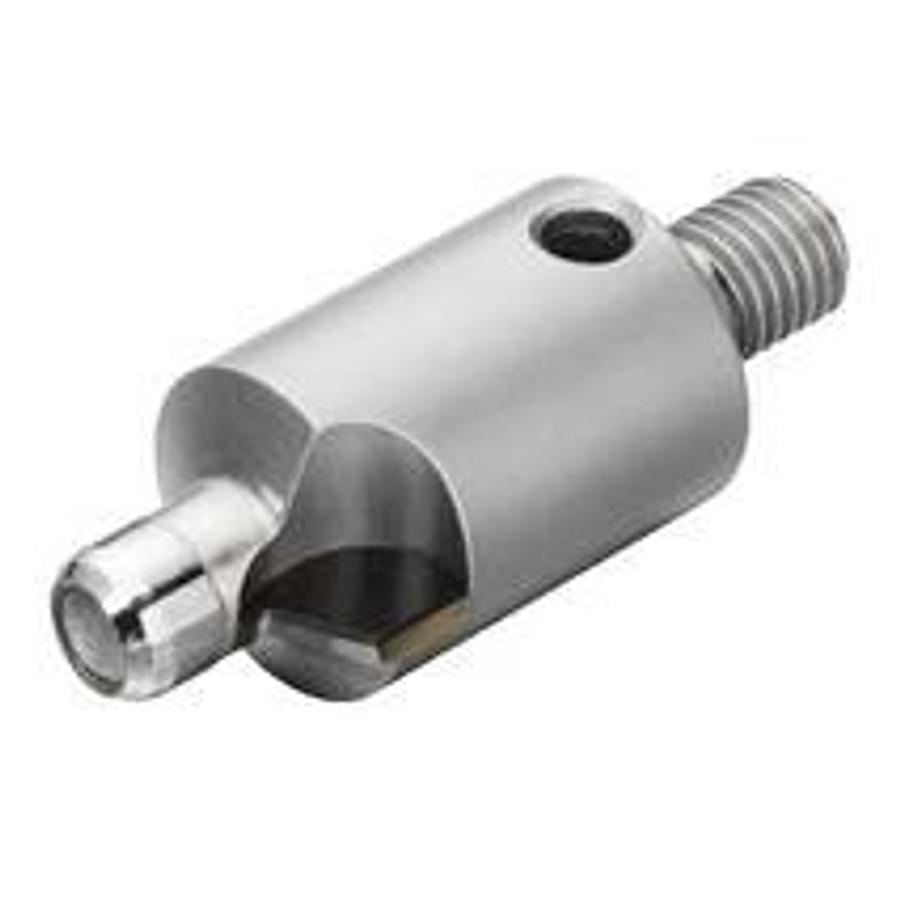

CoroDrill® 452 countersinking tool

• Adapter interface machine direction (ADINTMS): Threaded coupling (Microstop) -inch: 1/4-28
• Number of chip channels (NOF): 1
• Output diameter (PHD): 5,532 mm
• Basic Classification (BSG): COROMANT
• Max. speed (-81, -82: Maximum speed) (RPMX): 6000 rpm
• Functional length (LF): 7.9 mm
• Total length (OAL): 36.58 mm
• Manufacturer item number: 452.C1-0553-130T-C CD10
• Manufacturer: SANDVIK COROMANT
• IC Code: 9090
• ISO Cutting Tool Material: DP
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 5
• Cutting diameter (DC1): 5,532 mm
• Cutting diameter (DC2): 10 mm
• Grade: CD10
• Chip flute length (LCF): 12.01 mm
• Substrate Type: PCD
• Angle, 1st stage (SIG): 130 deg
• Chip flute length LC: 12.01 mm
• Adapter interface machine direction ADINTM: Threaded coupling (Microstop) -inch: 1/4-28
• Tip angle 1 step SI: 130
• Total length: 36.58 mm
