CoroDrill 452

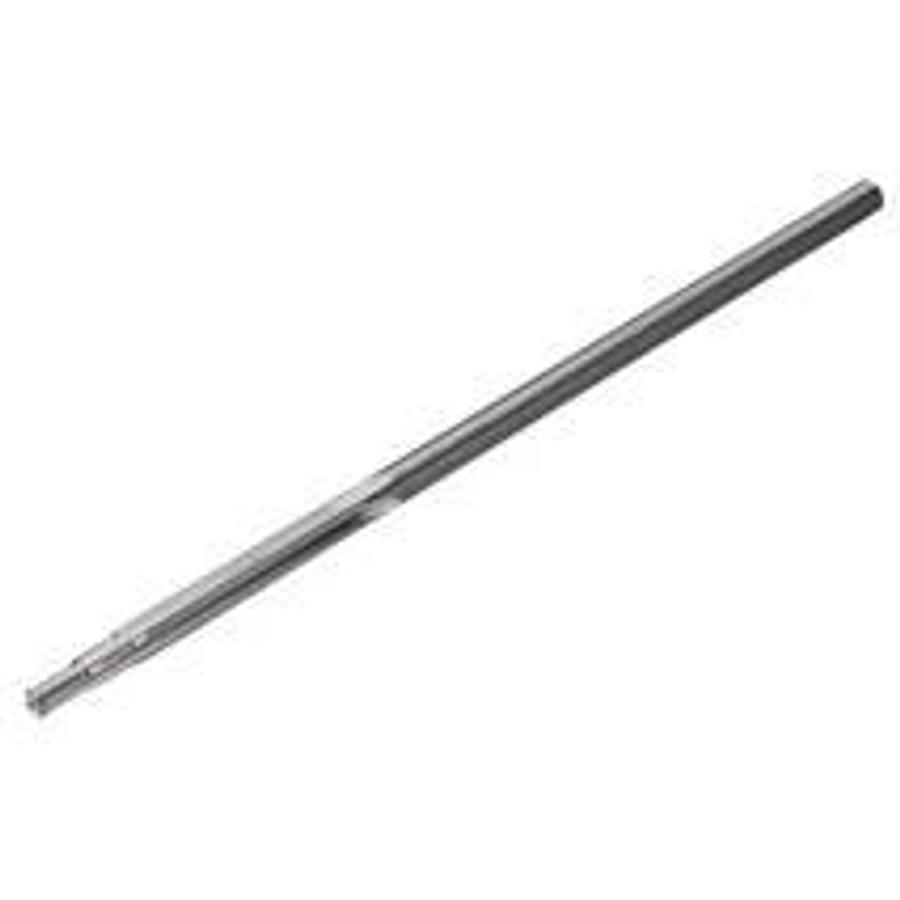

Solid carbide reamer CoroDrill® 452

• Adapter interface machine direction (ADINTMS): Cylindrical shank without clamping features -inch: 3/8
• Lead length (PLGL): 19.52 mm
• Number of chip channels (NOF): 6
• Output diameter (PHD): 7,927 mm
• Basic Classification (BSG): COROMANT
• DCONMS: 9,525 mm
• Max. speed (-81, -82: Maximum speed) (RPMX): 50000 rpm
• Functional length (LF): 82.08 mm
• Total length (OAL): 101.6 mm
• Manufacturer item number: 452.R-0953-025A0-CM H10F
• Manufacturer: SANDVIK COROMANT
• IC Code: 71200
• ISO Cutting Tool Material: HF
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 4
• Effective length (LU): 50.8 mm
• Upper achievable bore tolerance (TCHAU): 9,537 mm
• Cutting diameter (DC): 9,527 mm
• Cutting edge length (L): 50.8 mm
• Grade: H10F
• Chip flute length (LCF): 55.88 mm
• Substrate Type: WC
• Lower achievable bore tolerance (TCHAL): 9.509 mm
• Cutting diameter: 9,527 mm
• Upper achievable bore tolerance TCHA: 9,537 mm
• Chip flute length LC: 55.88 mm
• Usable length: 50.8 mm
