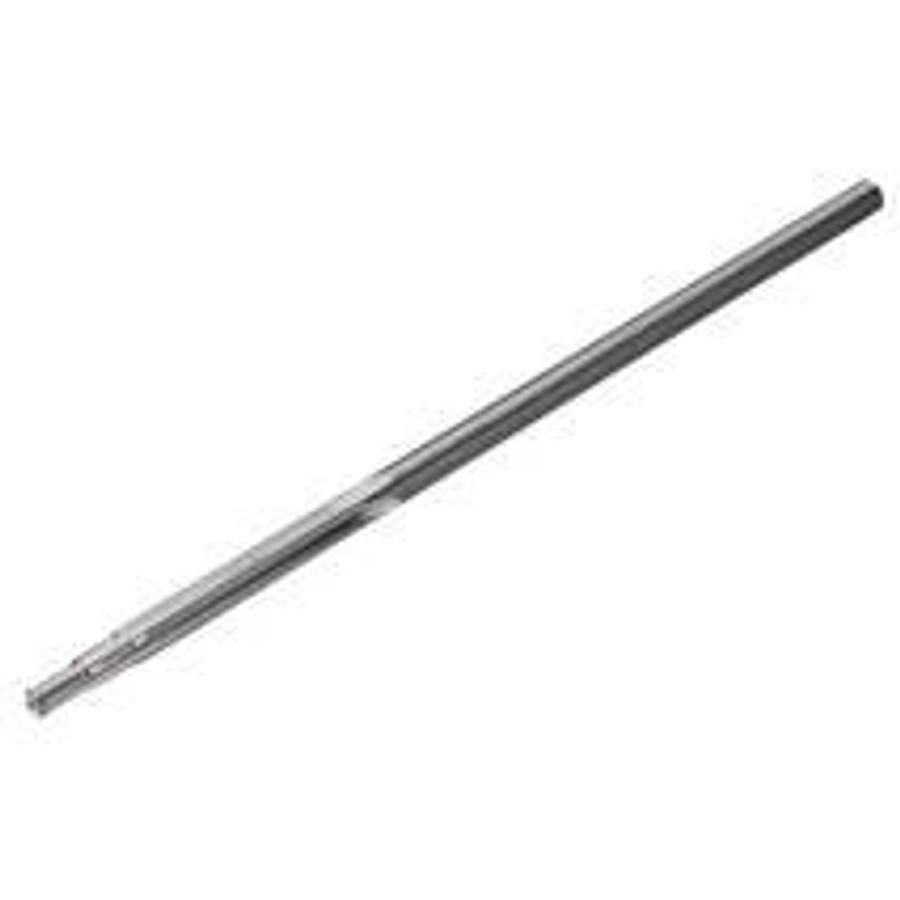

CoroDrill 452

Solid carbide reamer CoroDrill® 452

• Adapter interface machine direction (ADINTMS): Cylindrical shank without clamping features -inch: 1/4
• Lead length (PLGL): 13.16 mm
• Number of chip channels (NOF): 4
• Output diameter (PHD): 4,752 mm
• Basic Classification (BSG): COROMANT
• DCONMS: 6.35 mm
• Max. speed (-81, -82: Maximum speed) (RPMX): 50000 rpm
• Functional length (LF): 88.44 mm
• Total length (OAL): 101.6 mm
• Manufacturer No.: 452.R-0635-032A0-CM H10F
• Manufacturer: SANDVIK COROMANT
• IC Code: 71200
• ISO Cutting Tool Material: HF
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 4
• Effective length (LU): 50.8 mm
• Upper achievable bore tolerance (TCHAU): 6,362 mm
• Cutting diameter (DC): 6,352 mm
• Cutting edge length (L): 50.8 mm
• Grade: H10F
• Chip flute length (LCF): 55.88 mm
• Substrate Type: WC
• Lower achievable bore tolerance (TCHAL): 6,334 mm
• Cutting diameter: 6,352 mm
• Upper achievable bore tolerance TCHA: 6,362 mm
• Chip flute length LC: 55.88 mm
• Usable length: 50.8 mm
