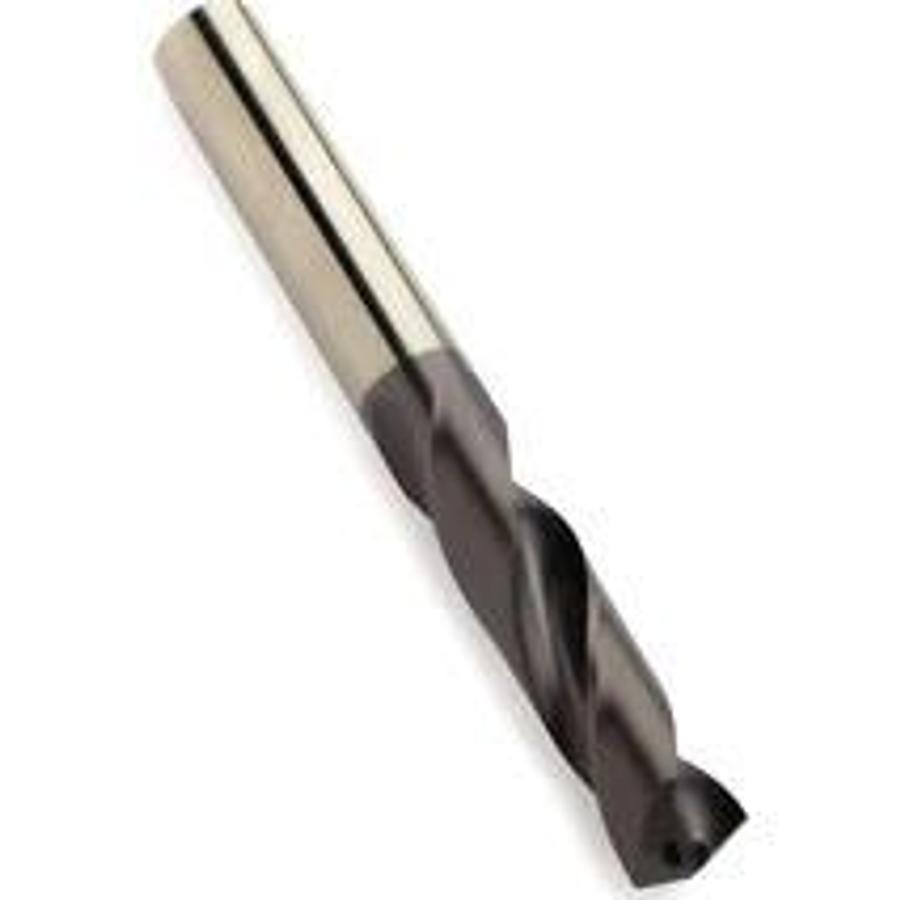

CoroDrill 460.2

SANDVIK HM twist drill, short, IK, DIN 6535HA

• Distance cutting edge to cutting tip (PL): 1 mm
• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 10
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 10 mm
• Max. speed (-81, -82: Maximum speed) (RPMX): 13642 rpm
• Achievable hole tolerance (TCHA): H9
• Functional length (LF): 88 mm
• Total length (OAL): 89 mm
• Manufacturer ArtNo: 460.2-0700-021A1-XM GC34
• Manufacturer: SANDVIK COROMANT
• IC Code: 9050
• ISO Cutting Tool Material: HC
• Coolant pressure (CP): 20 bar
• Coolant inlet (CNSC): 4: axial concentric entry on circle
• Life Cycle Status (LCS): 30
• Maximum regrinding operations (NORGMX): 3
• Usable length (LU): 22 mm
• Cutting diameter (DC1): 7 mm
• Cutting diameter (DC2): 9.45 mm
• Grade: GC34
• Chip flute length (LCF): 38 mm
• Step length, 1st step (SDL): 19.8 mm
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Angle, 1st stage (SIG): 140 deg
• Mounting size: 8 mm
• Drill type: solid carbide step drill
• ISO H: H
• ISO N: N
• Variety: GC34
• ISO K: K
• ISO M: M
• Coolant supply: Internal coolant supply
• Drilling diameter Dc: 7 mm
• Drilling tool: Mounting type: cylindrical shank
• Geometry / Cutting edge: XM
• ISO P: P
• ISO S: S
• Tolerance: H9
• eClass-5.1: 21010101
• ISO scope: P|M|K|N|S|H
