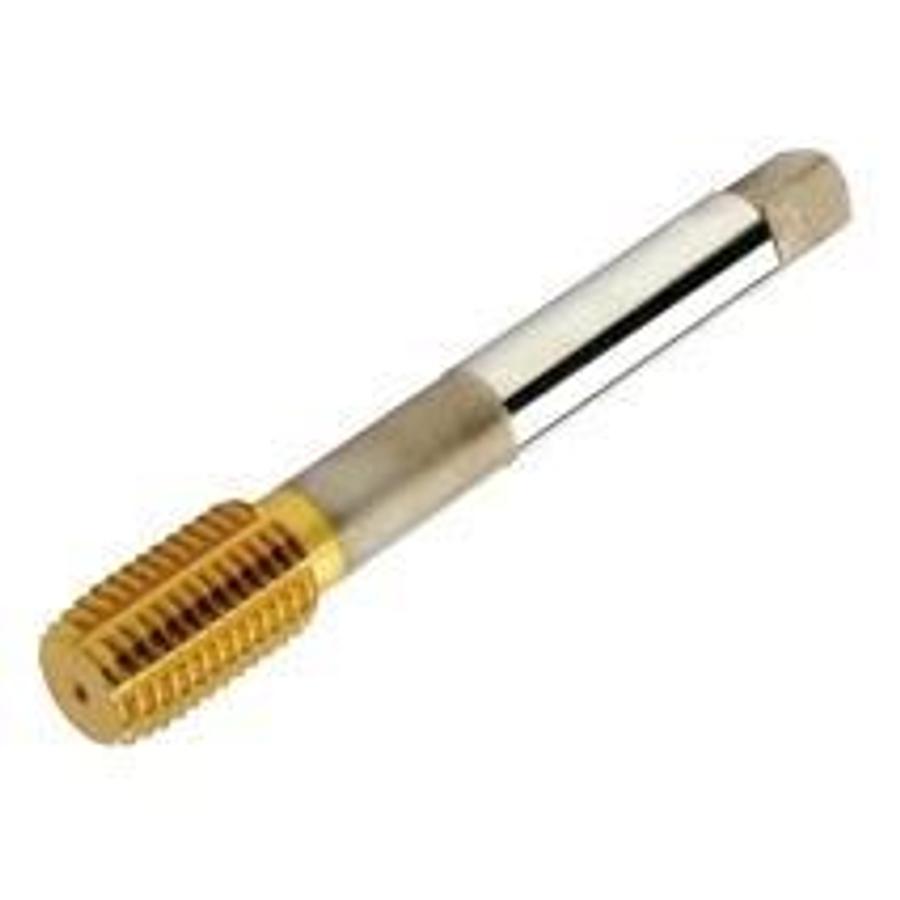

CoroTap 400 Gewindeformer für ISO P-M-N-S / DL und SL - 3 x D - C 2 - 3 - Metrische Ausführung

CoroTap™ 400 thread former

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.381 x 0.286
• Number of chip channels (NOF): 6
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 9.4 mm
• Basic Classification (BSG): DIN/ANSI
• Coating Process Type: PVD
• DCONMS: 9.6774 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 100 mm
• Thread size (TDZ): MF 10x1.25
• Thread length (THL): 19.9898 mm
• Nominal thread diameter (TD): 10 mm
• Thread pitch (TP): 1.25 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 7.25 mm
• Manufacturer No.: E891M10X1.25
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Useful length (LU): 36.6141 mm
• Substrate Type: HSS-PM
• Functional length L: 100 mm
• Usable length: 36.6141 mm
• Thread tolerance class TCT: 6H
