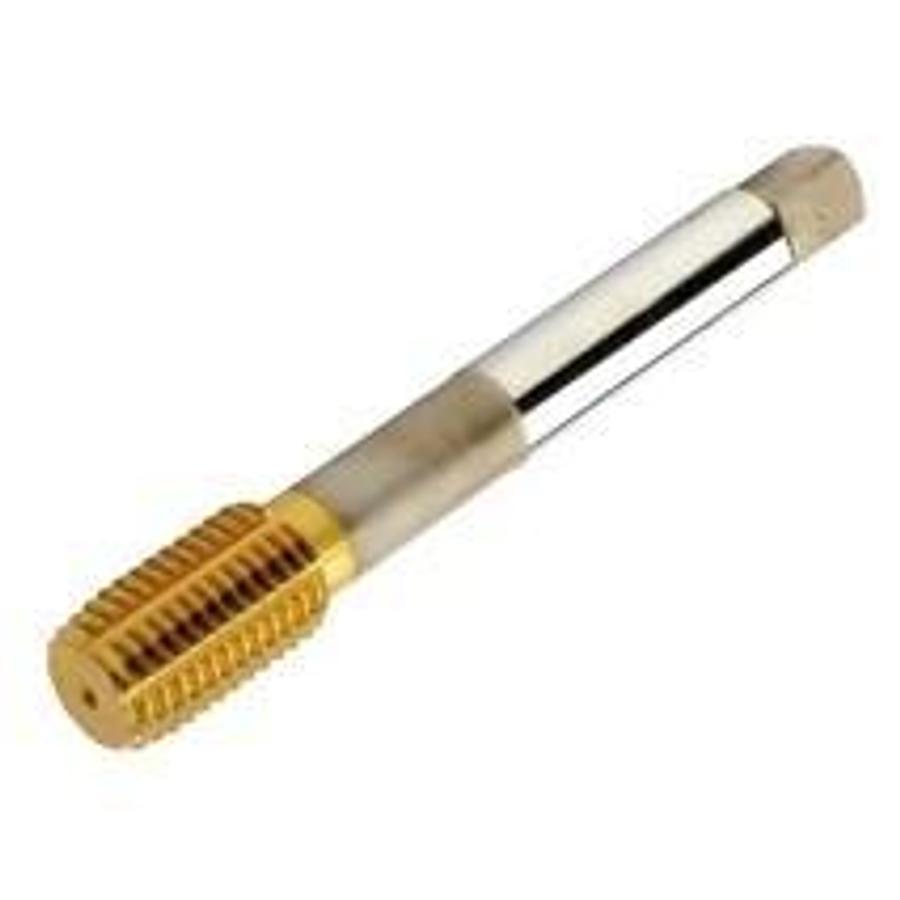

CoroTap 400 thread former for ISO PMNS / DL and SL - 3 x D - C 2 - 3 - Metric version

CoroTap™ 400 thread former

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.255 x 0.191
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 5.5 mm
• Basic Classification (BSG): DIN/ANSI
• Coating Process Type: PVD

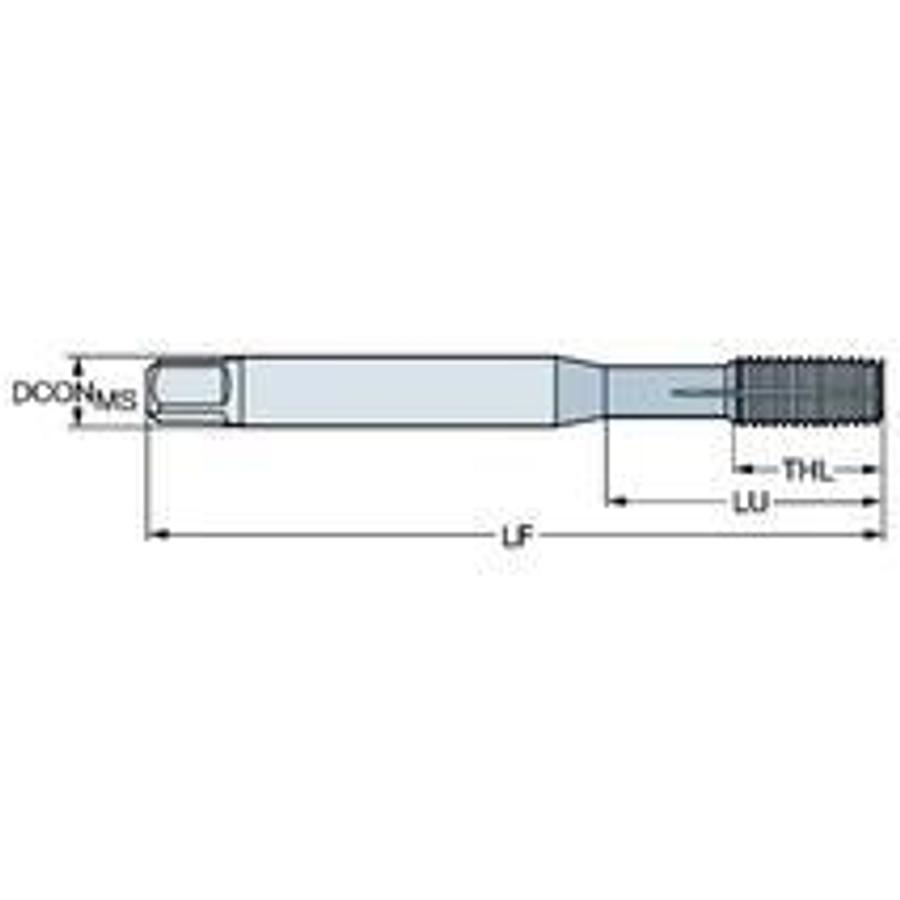

• DCONMS: 6,477 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 80 mm
• Thread size (TDZ): M 6
• Thread length (THL): 15.0114 mm
• Nominal thread diameter (TD): 6 mm
• Thread pitch (TP): 1 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 4.55 mm
• Manufacturer No.: E890M6
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Useful length (LU): 25.58542 mm
• Substrate Type: HSS-PM
• Functional length L: 80 mm
• Useful length: 25.58542 mm
• Thread tolerance class TCT: 6H
