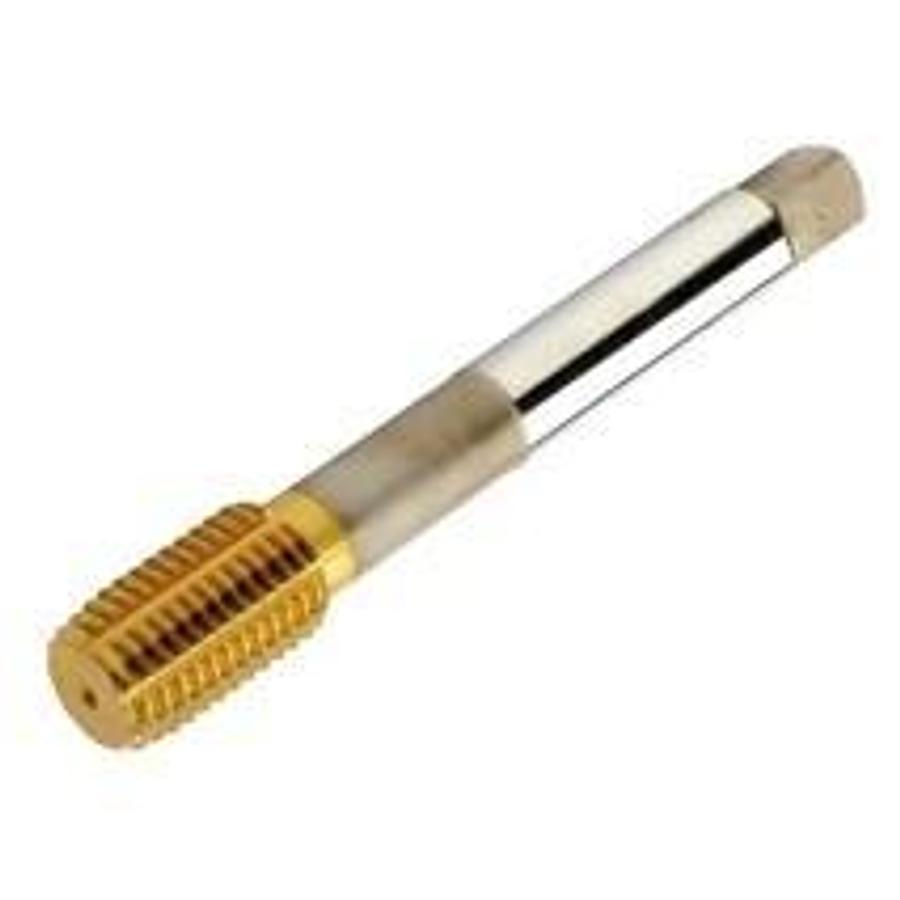

CoroTap 400 thread former for ISO PMNS / DL and SL - 3 x D - C 2 - 3 - Metric version

CoroTap™ 400 thread former

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.141 x 0.110
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 2.8 mm
• Basic Classification (BSG): DIN/ANSI
• Coating Process Type: PVD

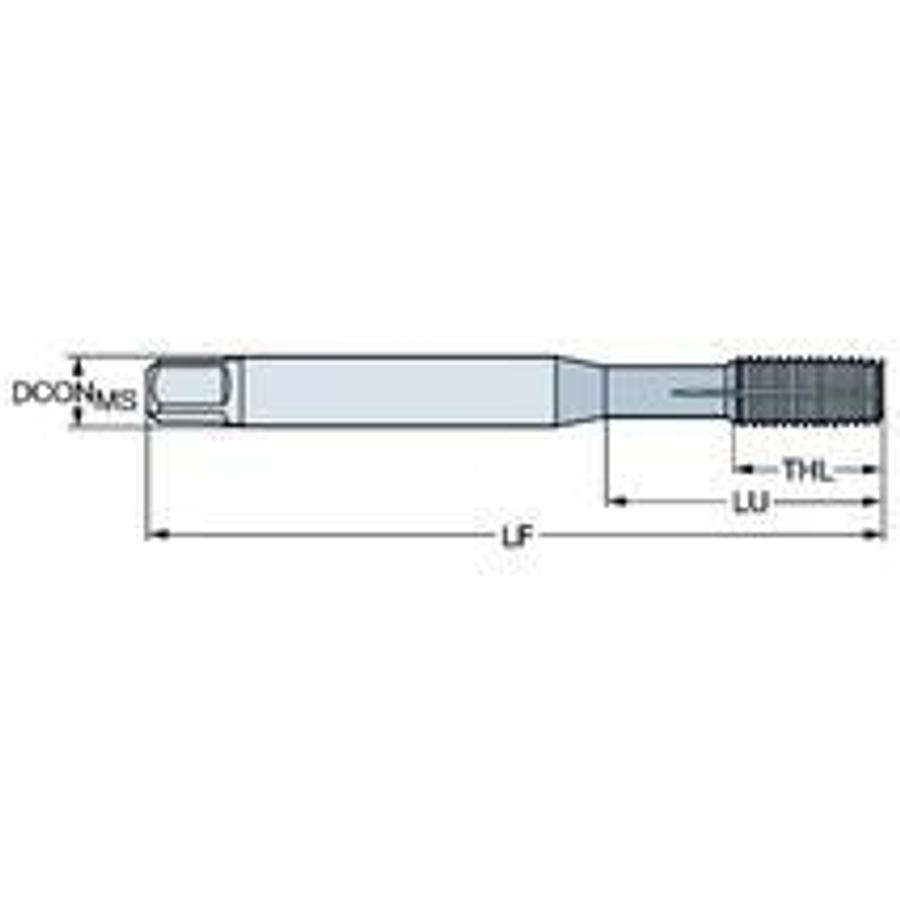

• DCONMS: 3,5814 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 56 mm
• Thread size (TDZ): M 3
• Thread length (THL): 18.80616 mm
• Nominal thread diameter (TD): 3 mm
• Thread pitch (TP): 0.5 mm
• Thread tolerance class (TCTR): 6H
• Neck diameter (DN): 2.47 mm
• Manufacturer No.: E890M3
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Useful length (LU): 18.80616 mm
• Substrate Type: HSS-PM
• Functional length L: 56 mm
• Useful length: 18.80616 mm
• Thread tolerance class TCT: 6H
