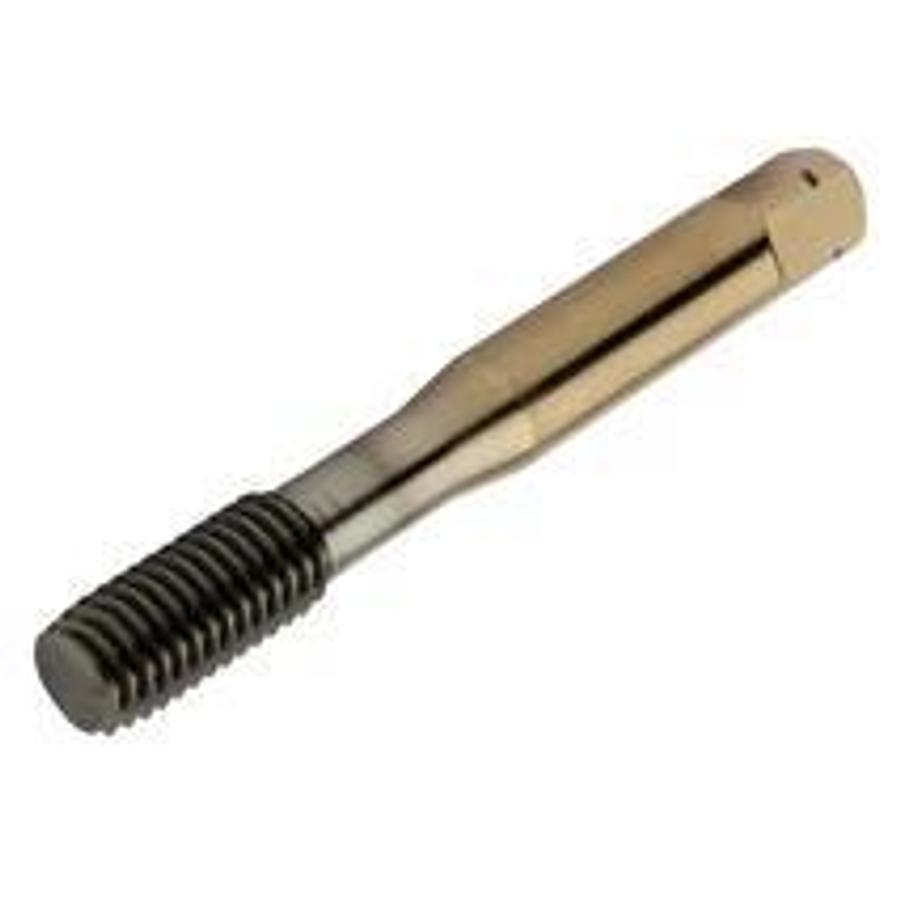

CoroTap 400 thread former for ISO PMNS / DL and SL - 2.5 x D - C 2 - 3 - Metric version

SANDVIK M MTT-X machine thread former

• Adapter interface machine direction (ADINTMS): Tap shank ISO -metric: 3.15 x 2.50
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): C

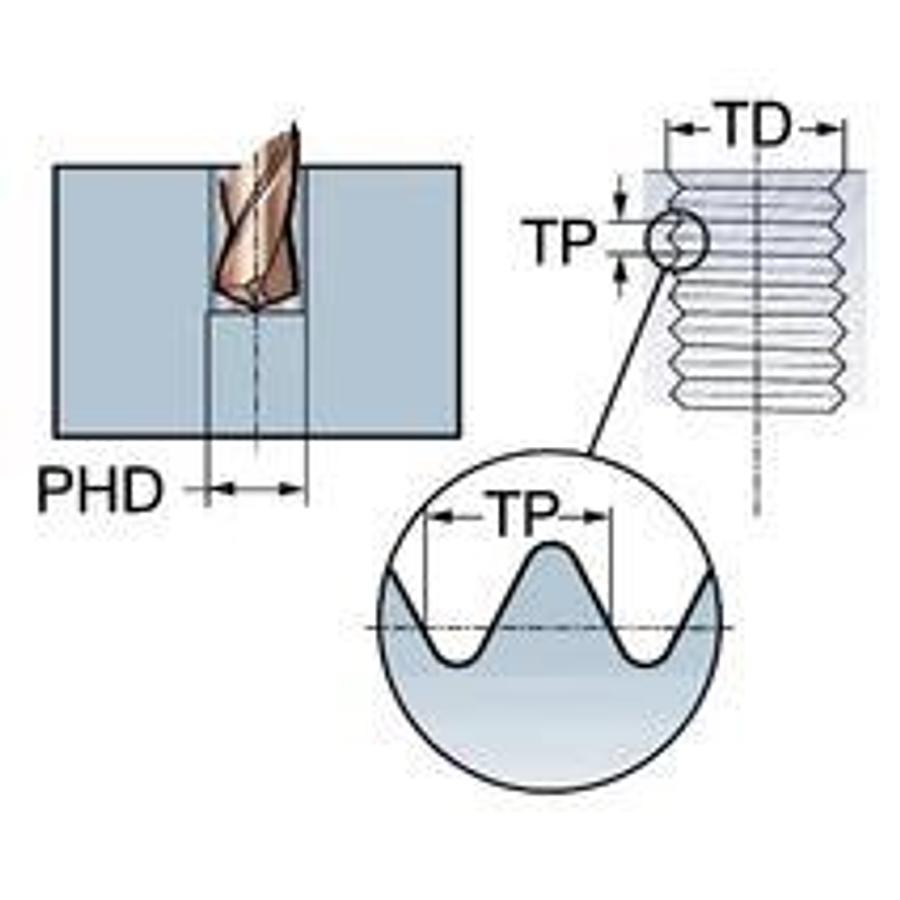

• Output diameter (PHD): 2.8 mm
• Basic Classification (BSG): ISO 529
• Coating Process Type: PVD
• DCONMS: 3.15 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 48 mm
• Thread size (TDZ): M 3
• Thread length (THL): 12.5 mm
• Nominal thread diameter (TD): 3 mm
• Thread pitch (TP): 0.5 mm
• Thread tolerance class (TCTR): 6HX
• Neck diameter (DN): 3.15 mm
• Manufacturer No.: E097M3
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 30
• Backward flattened teeth (THBTP): 1
• Effective length (LU): 12.5 mm
• Substrate Type: HSS-PM
• Functional length L: 48 mm
• Working length: 12.5 mm
• Thread tolerance class TCT: 6HX
• ISO M: M
• ISO N: N
• Coolant supply: Without coolant supply
• Length square l3: 5
• d1 nom: n/a
• Thread pitch/number of threads: M3 - 0.50
• Shaft diameter: 3.15 x 2.50
• Drill total length l1 / l1s: 48 mm
• ISO scope: P|M|N|S
• Type designation: E097
• l4 Dimension: kA
• Drill type: thread former
• Number of teeth: n/a
• Through/blind hole: Through and blind hole
• ISO P: P
• ISO S: S
• Core hole diameter: 2.8
• Tolerance: 6HX
• Square a: 2.5
• eClass-5.1: 21010210
• Standard: ISO 529
• Cutting shape: C 2 - 3
• Recommended thread depth: 2.5 x D
• Length of threaded head l2: 12.5
