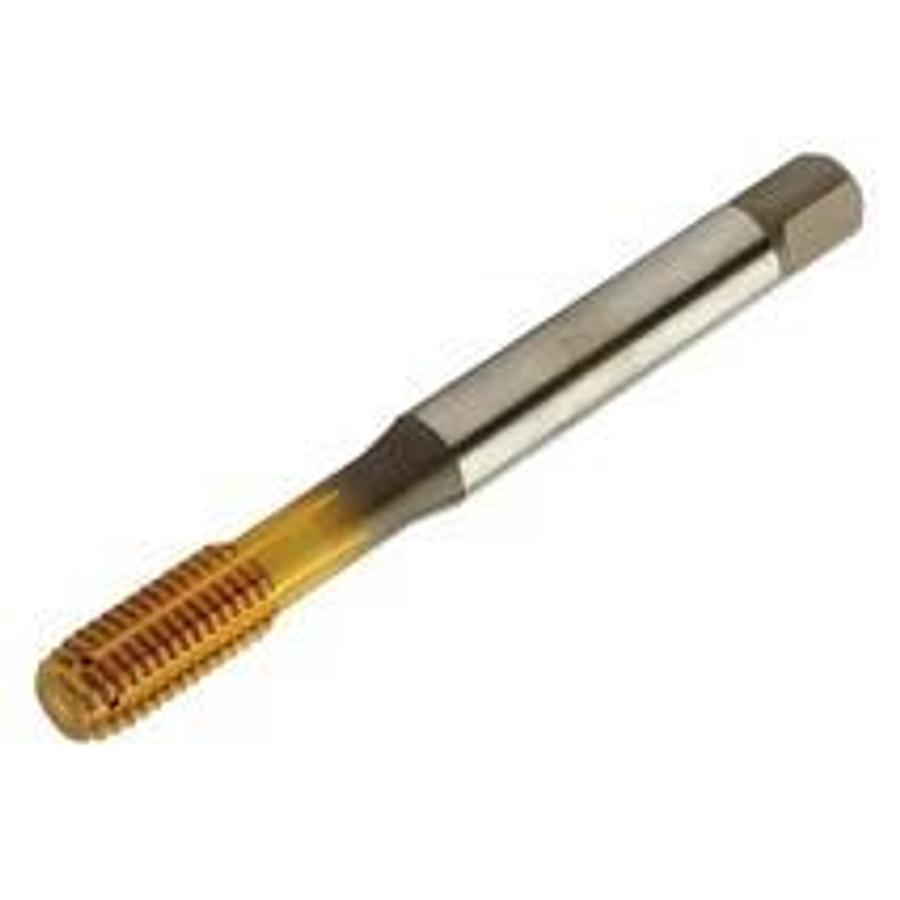

CoroTap 400 thread former for ISO PMNS / DL and SL - 3.5 x D - C 2 - 3.5

CoroTap™ 400 thread former

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 9.00 x 7.00
• Number of chip channels (NOF): 5
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 11.2 mm
• Basic Classification (BSG): DIN 2174
• Coating Process Type: PVD

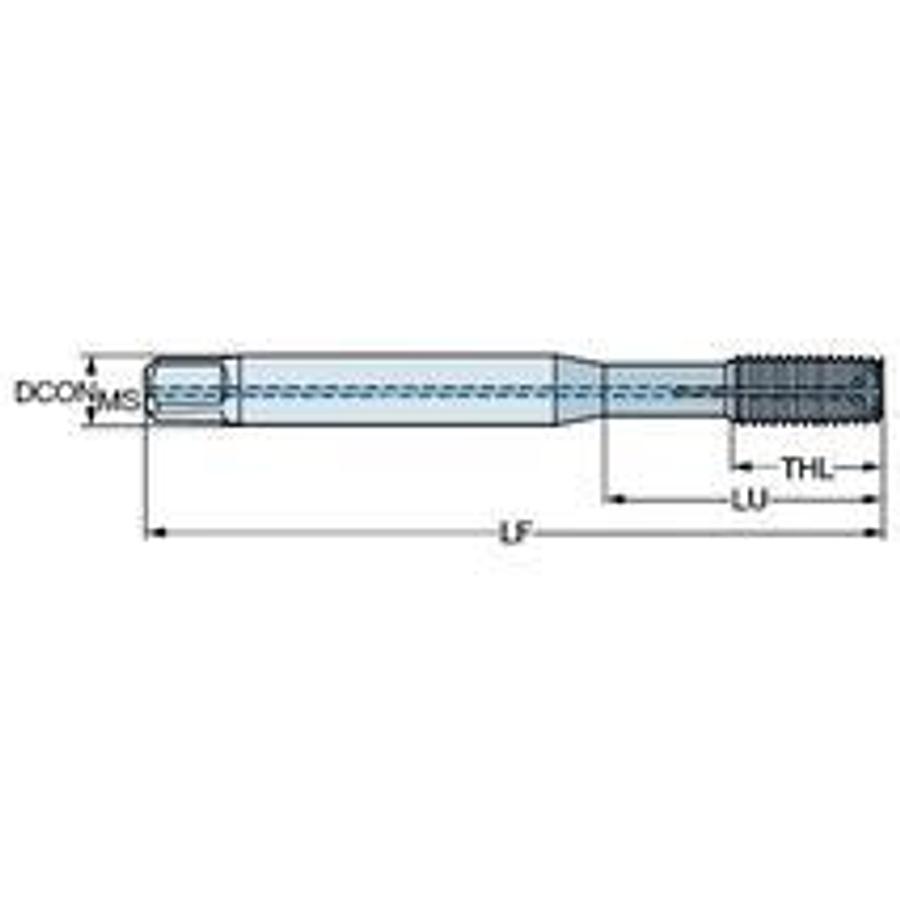

• DCONMS: 9 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 110 mm
• Thread size (TDZ): M 12
• Thread length (THL): 23 mm
• Nominal thread diameter (TD): 12 mm
• Thread pitch (TP): 1.75 mm
• Thread tolerance class (TCTR): 6HX
• Neck diameter (DN): 8.7 mm
• Manufacturer No.: E315M12
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-E
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Usable length (LU): 83 mm
• Substrate Type: HSS-E
• Functional length L: 110 mm
• Usable length: 83 mm
• Thread tolerance class TCT: 6HX
