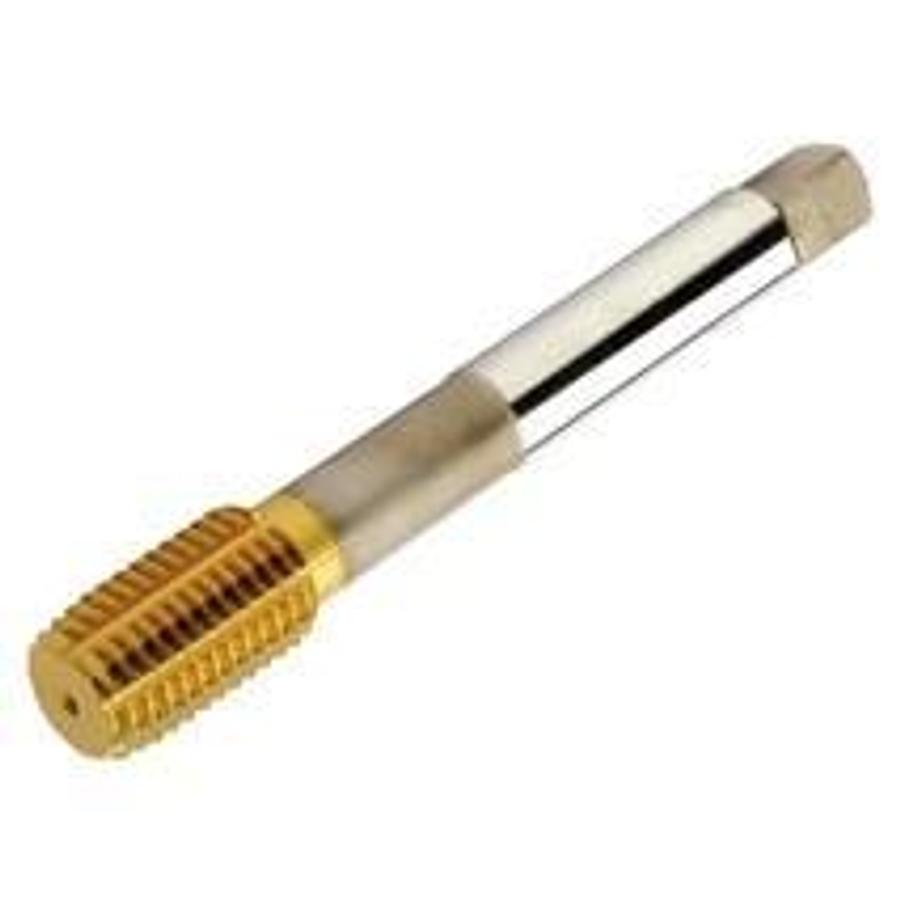

CoroTap 400 thread former for ISO PMNS / DL and SL - 3.5 x D - C 2 - 3.5

CoroTap™ 400 thread former

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 18.00 x 14.50
• Number of chip channels (NOF): 8
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 22.5 mm
• Basic Classification (BSG): DIN 2174
• Coating Process Type: PVD
• DCONMS: 18 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 160 mm
• Thread size (TDZ): M 24
• Thread length (THL): 36 mm
• Nominal thread diameter (TD): 24 mm
• Thread pitch (TP): 3 mm
• Thread tolerance class (TCTR): 6HX
• Neck diameter (DN): 17.7 mm
• Manufacturer No.: E308M24
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-E
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Usable length (LU): 113 mm
• Substrate Type: HSS-E
• Functional length L: 160 mm
• Usable length: 113 mm
• Thread tolerance class TCT: 6HX
