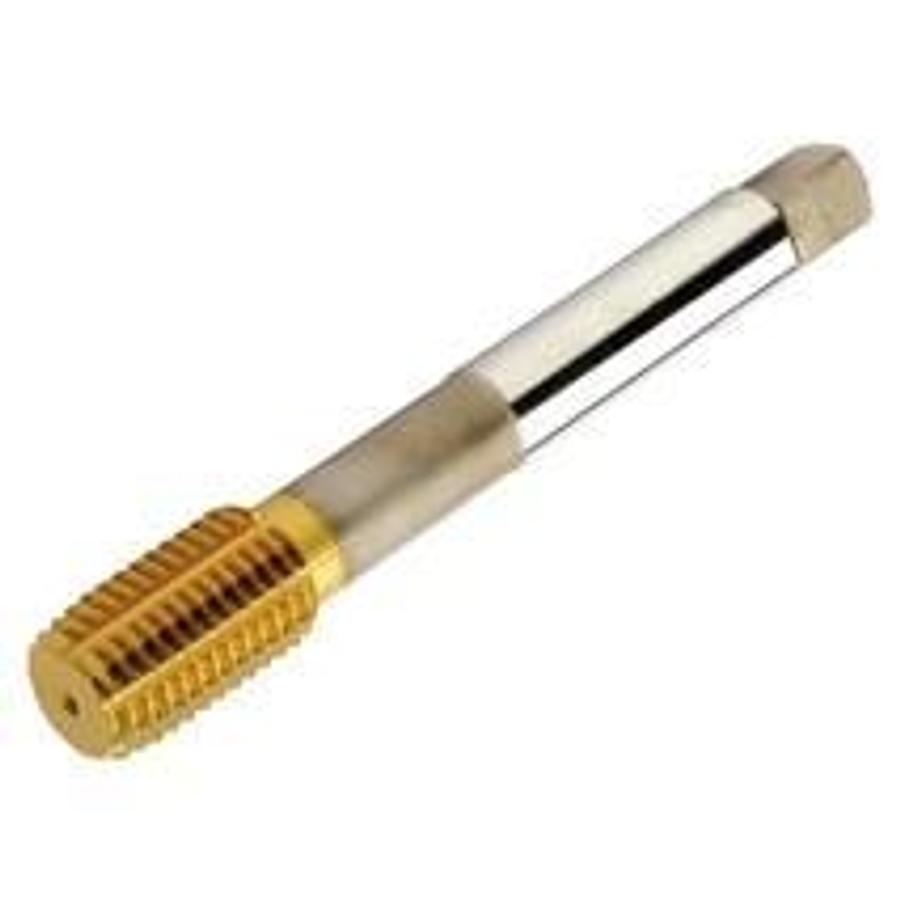

CoroTap 400 thread former for ISO PMNS / DL and SL - 3.5 x D - C 2 - 3.5

CoroTap™ 400 thread former

• Adapter interface machine direction (ADINTMS): Tap shank DIN -metric: 16.00 x 12.00
• Number of chip channels (NOF): 7
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 18.8 mm
• Basic Classification (BSG): DIN 2174
• Coating Process Type: PVD
• DCONMS: 16 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 140 mm
• Thread size (TDZ): M 20
• Thread length (THL): 30 mm
• Nominal thread diameter (TD): 20 mm
• Thread pitch (TP): 2.5 mm
• Thread tolerance class (TCTR): 6HX
• Neck diameter (DN): 15.7 mm
• Manufacturer No.: E308M20
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-E
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Usable length (LU): 95 mm
• Substrate Type: HSS-E
• Functional length L: 140 mm
• Usable length: 95 mm
• Thread tolerance class TCT: 6HX
