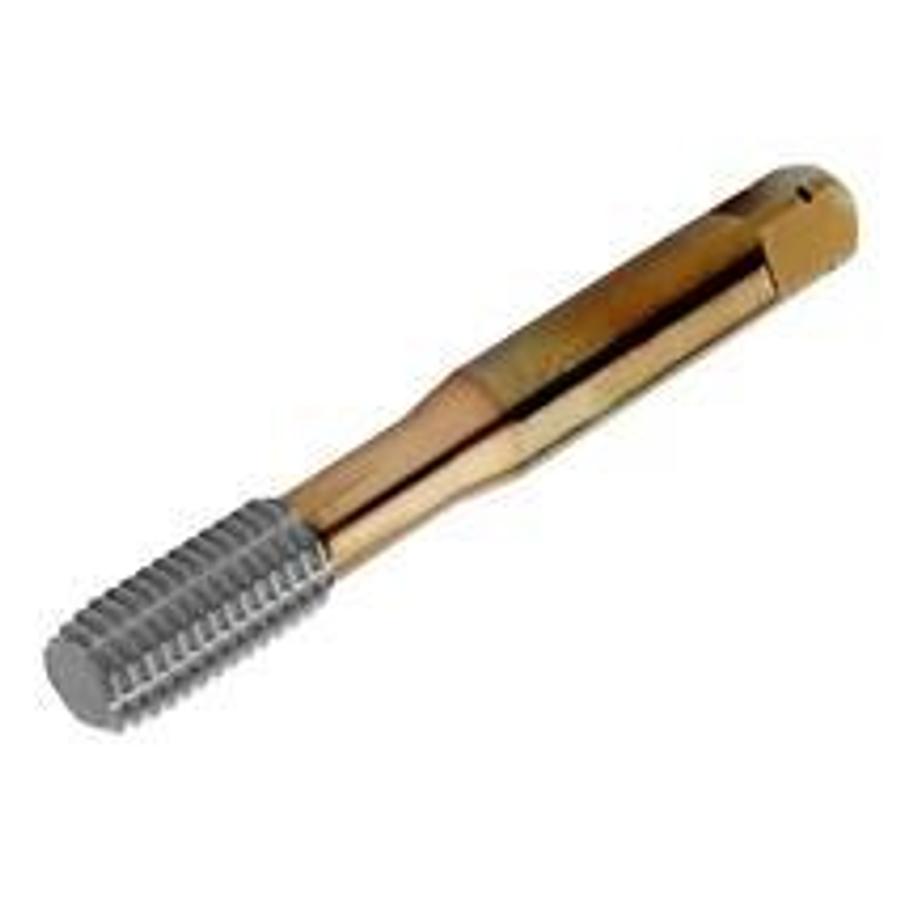

CoroTap 400 Gewindeformer für ISO P-N / DL und SL - 2,5 x D - C 2 - 3 - Metrische Ausführung

CoroTap™ 400 thread former

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.194 x 0.152
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): C
• Output diameter (PHD): 4.6 mm
• Basic Classification (BSG): ANSI
• DCONMS: 4,9276 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 60.325 mm
• Thread size (TDZ): M 5
• Thread length (THL): 12.7 mm
• Nominal thread diameter (TD): 5 mm
• Thread pitch (TP): 0.8 mm
• Thread tolerance class (TCTR): 6HX
• Neck diameter (DN): 3.76 mm
• Manufacturer No.: E094M5
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Useful length (LU): 21.42236 mm
• Substrate Type: HSS-PM
• Functional length L: 60,325 mm
• Useful length: 21.42236 mm
• Thread tolerance class TCT: 6HX
