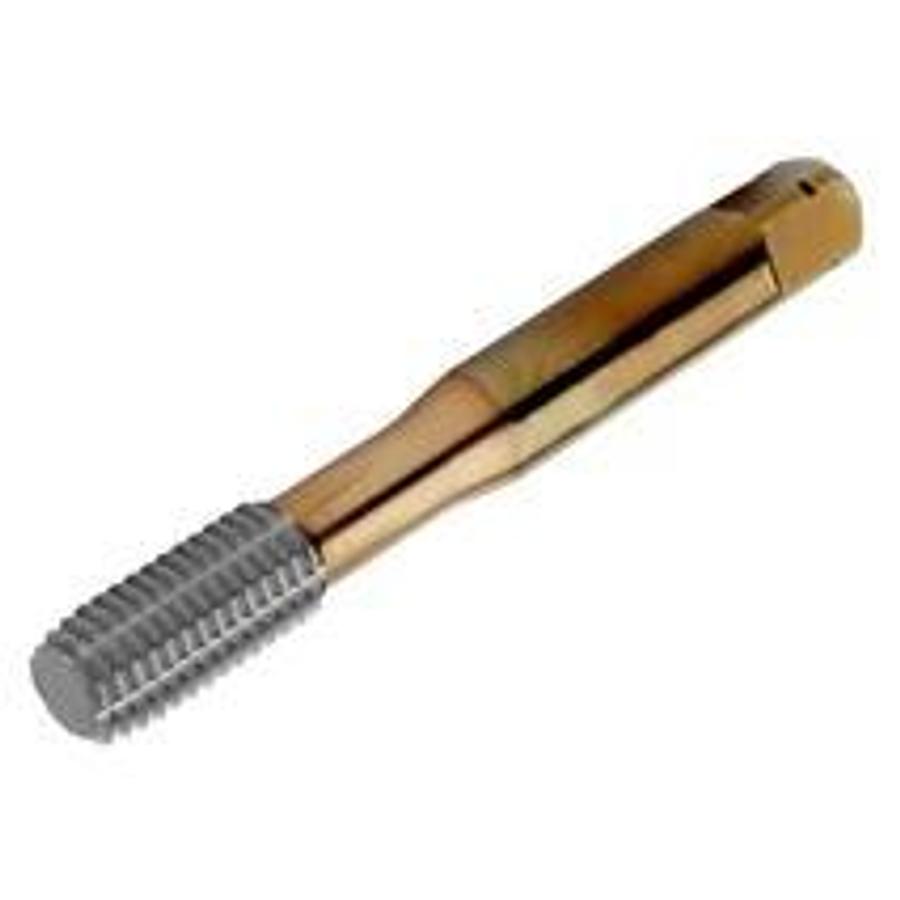

CoroTap 400 thread former for ISO PN / DL and SL - 2.5 x D - C 2 - 3 - inch version

CoroTap™ 400 thread former

• Adapter interface machine direction (ADINTMS): Tap shank ANSI -inch: 0.168 x 0.131
• Number of chip channels (NOF): 4
• Thread chamfer design (THCHT): C

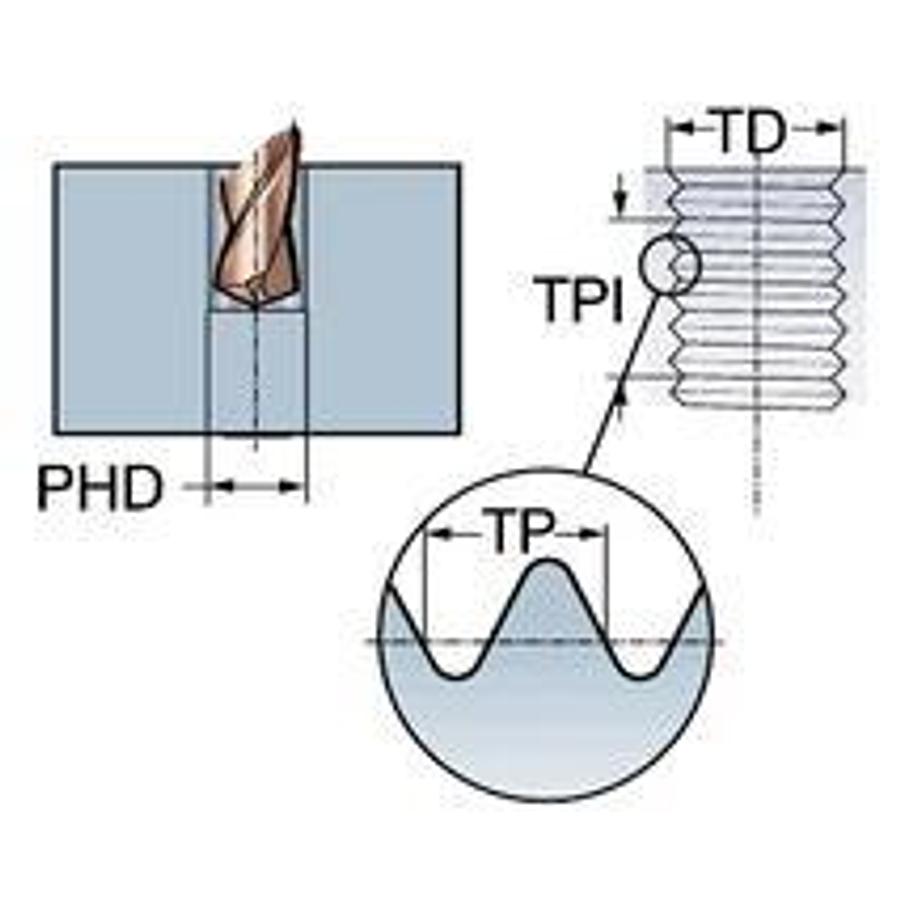

• Output diameter (PHD): 3.8 mm
• Basic Classification (BSG): ANSI
• DCONMS: 4,2672 mm
• Suitability for through hole (THFP): 1
• Functional length (LF): 53.975 mm
• Number of threads per inch (TPI): 32
• Thread size (TDZ): UNC #8-32
• Thread length (THL): 7.9 mm
• Nominal thread diameter (TD): 4.1656 mm
• Thread tolerance class (TCTR): 2B
• Neck diameter (DN): 2.97 mm
• Manufacturer No.: E0648-32
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HSS-PM
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Backward flattened teeth (THBTP): 1
• Useful length (LU): 16.57604 mm
• Substrate Type: HSS-PM
• Functional length L: 53.975 mm
• Useful length: 16.57604 mm
• Thread tolerance class TCT: 2B
