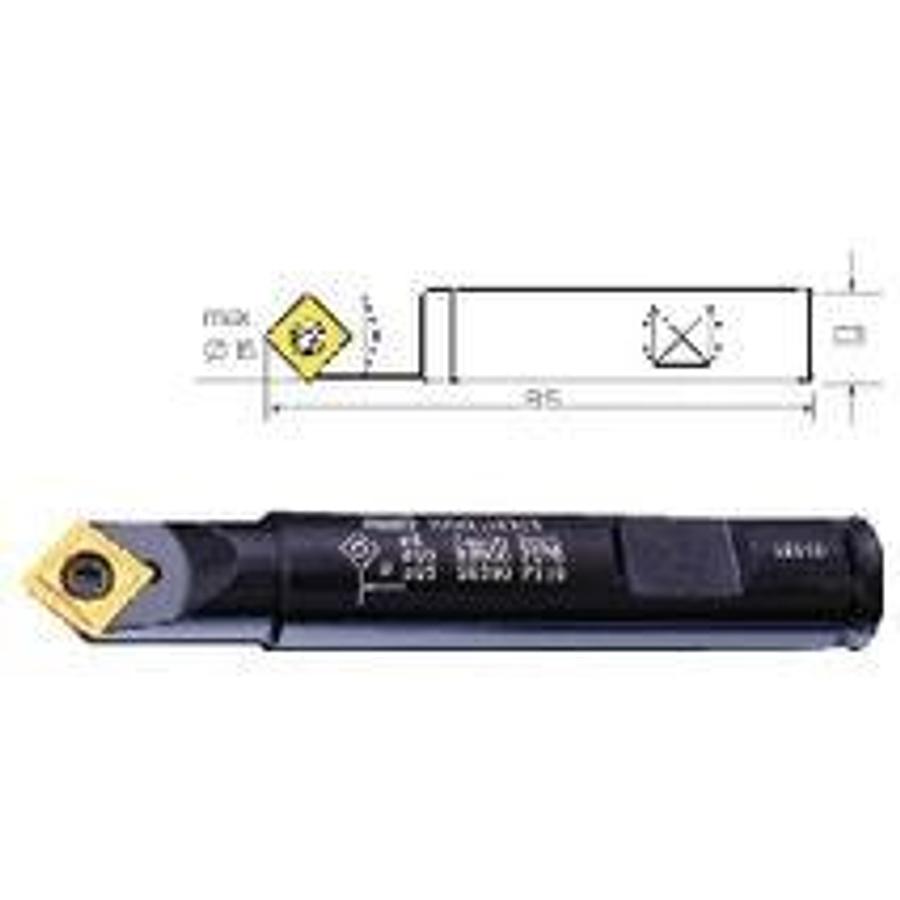

Indexable insert NC spotting drill Indexable insert NC spotting drill 90°

Design:

- Universal NC spotting drill for patented, interchangeable indexable inserts

Insert grades:

NC10: highly positive and all-side ground insert for Al, Al alloys, non-ferrous metals and stainless steels

NC40: for unhardened steels and cast iron

NC2071: K20F, TiN, 2-cutting edge insert for unalloyed and alloyed steels as well as cast iron

NC9076: highly positive geometry and special ground grind, DLC coated, for Al, Al alloys, copper, brass and bronze. 2 cutting edges

NC60: Cermet insert for hardened steels up to 55 HRC

Use:

Enables multiple applications such as engraving, centering, chamfering, countersinking and radius milling.

Note:

Shank design 6 and 10 mm = cylindrical

Shank design 12 and 16 mm = with clamping surface

Technical features:

106300 Indexable insert NC spot drill 90°
