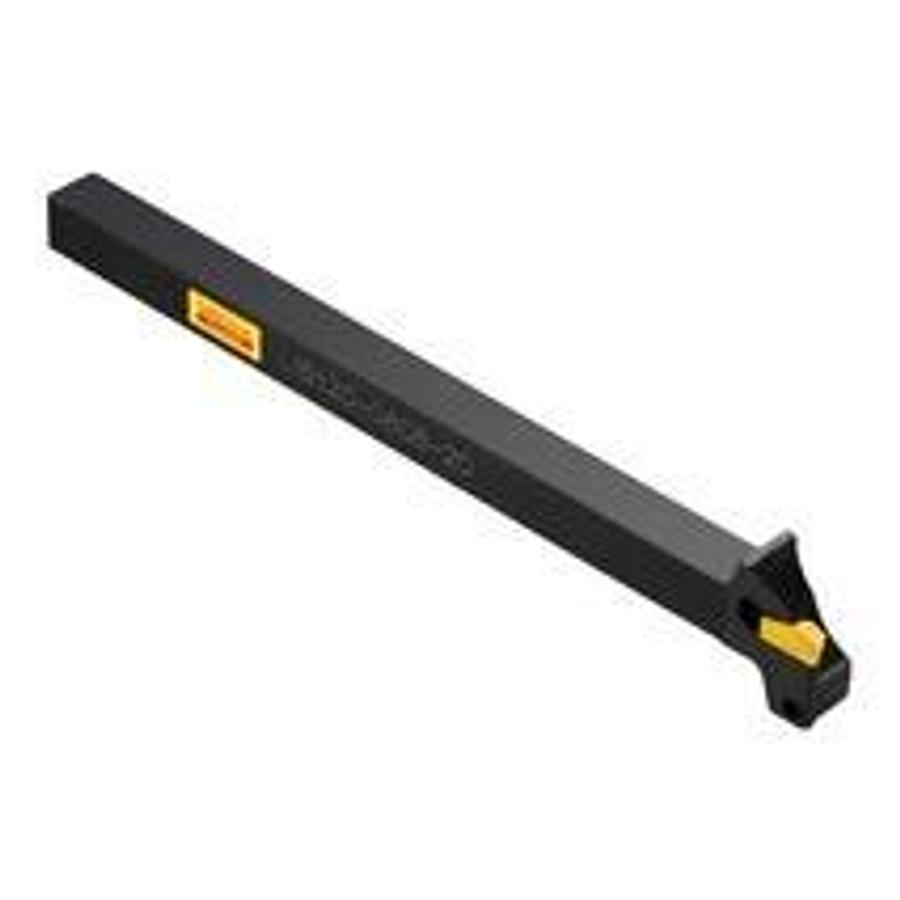

T-Max Q-Cut shank tool

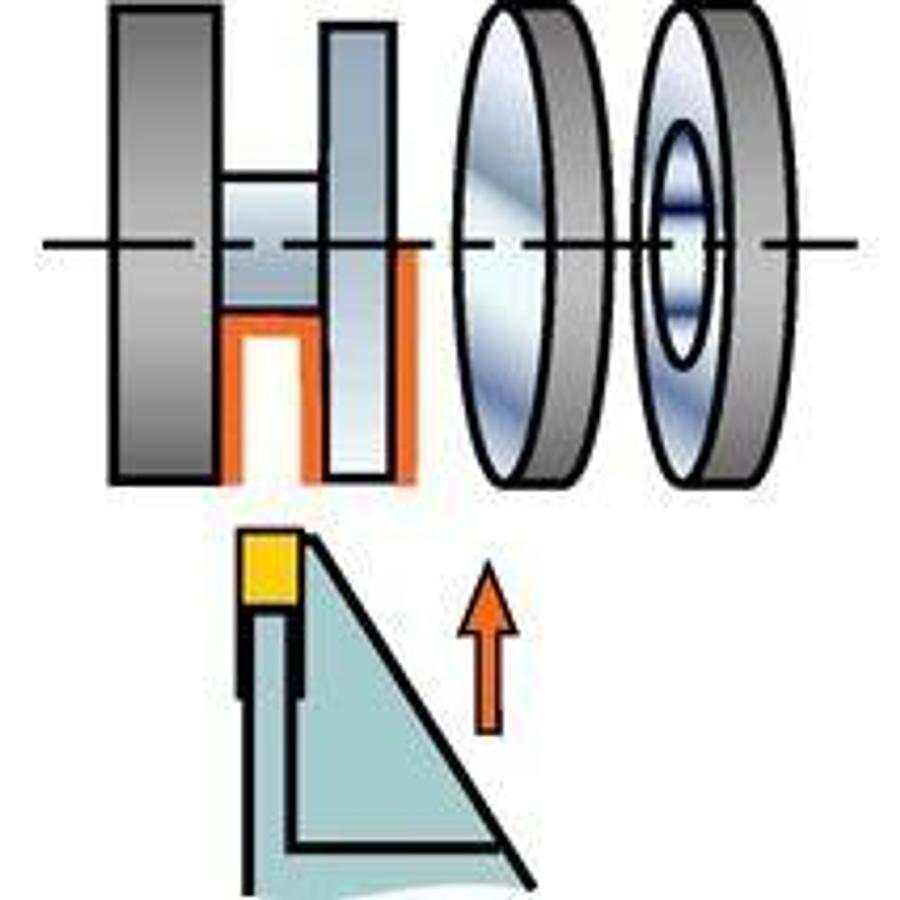

T-Max® Q-Cut shank tool for parting and grooving

• Parting diameter (CUTDIA): 44.958 mm
• Adapter interface machine direction (ADINTMS): Rectangular shank -inch: 3/4 x 3/4
• Functional width (WF): 19.4056 mm
• Functional height (HF): 19.05 mm
• Functional length (LF): 114.3 mm
• Manufacturer No.: L151.20-12-30A
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant outlet (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 31,496 mm
• Shaft width (B): 19.05 mm
• Shaft height (H): 19.05 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 22,5044 mm
• Part 2 of the cutting part interface identifiers (CUTIN: Q-Cut -size 30 (N151.2-300-5E)
• Functional width W: 19.4056 mm
• Adapter interface machine direction ADINTM: Rectangular shank -inch: 3/4 x 3/4
• Functional length L: 114.3 mm
