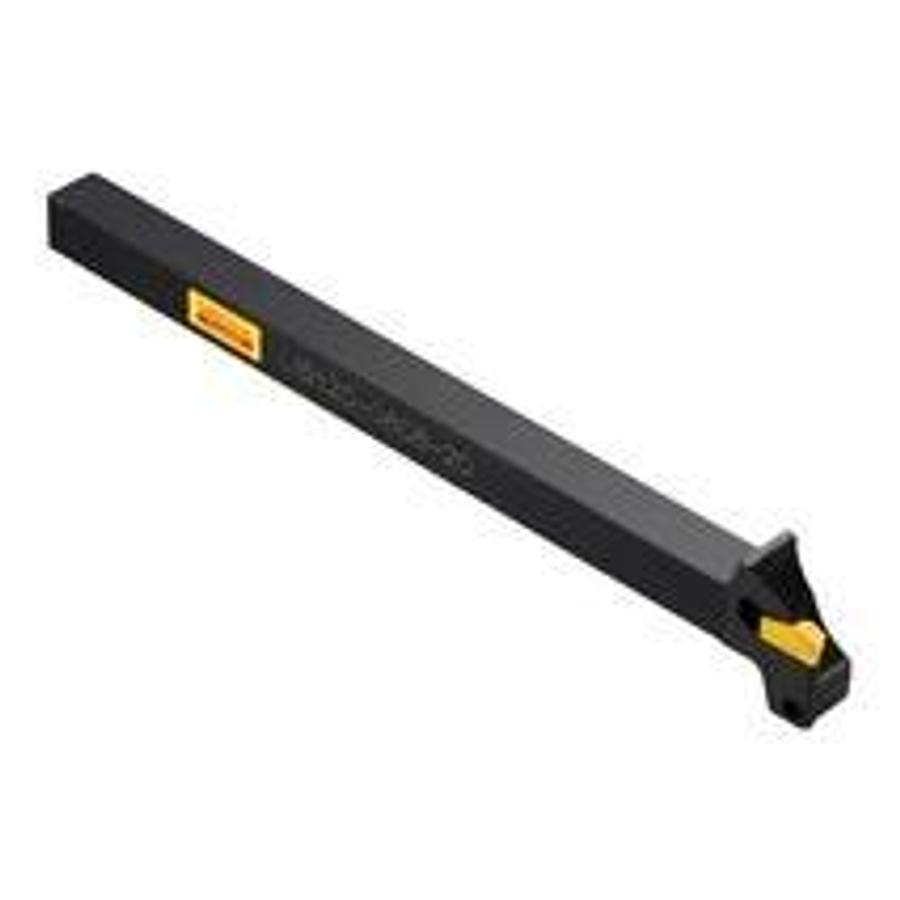

T-Max Q-Cut shank tool

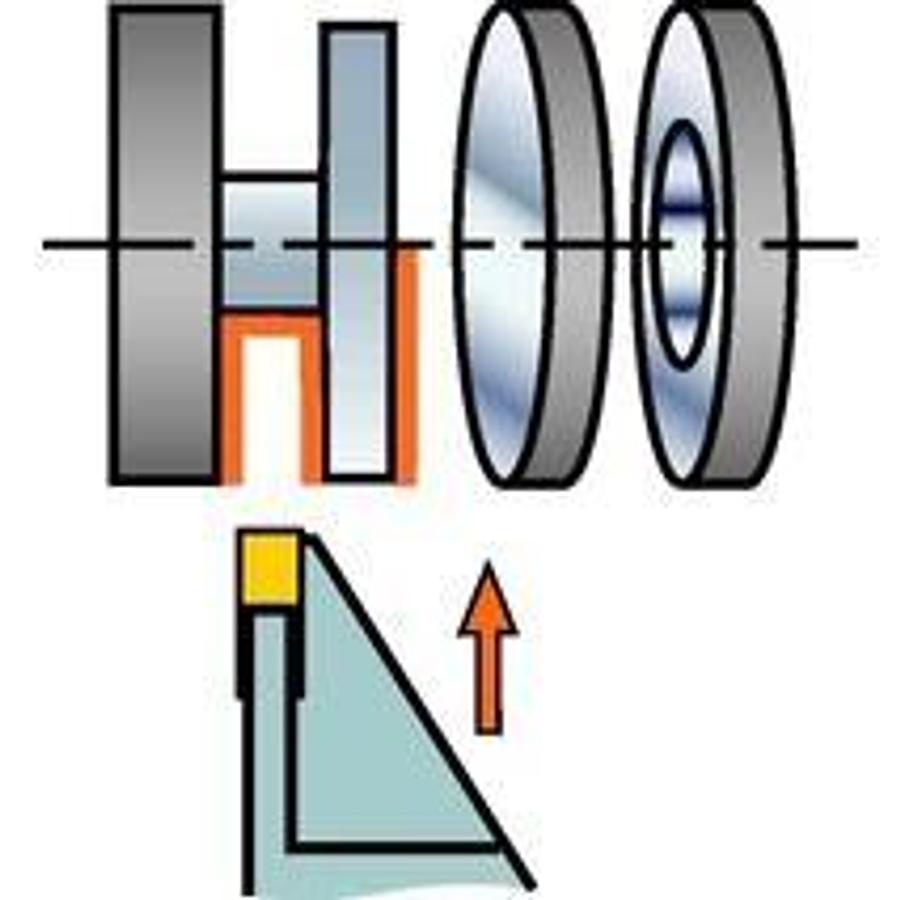

T-Max® Q-Cut shank tool for parting and grooving

• Functional width (WF): 25.7048 mm
• Functional height (HF): 25.4 mm
• Functional length (LF): 152.4 mm
• Manufacturer No.: L151.21-16-30
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant outlet (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 32,004 mm
• Shaft width (B): 25.4 mm
• Shaft height (H): 25.4 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 24,892 mm
• Part 2 of the cutting part interface identifiers (CUTIN: Q-Cut -size 30 (N151.2-300-5E)
• Functional width W: 25.7048 mm
• Adapter interface machine direction ADINTM: Rectangular shank -inch: 1 x 1
• Functional length L: 152.4 mm
