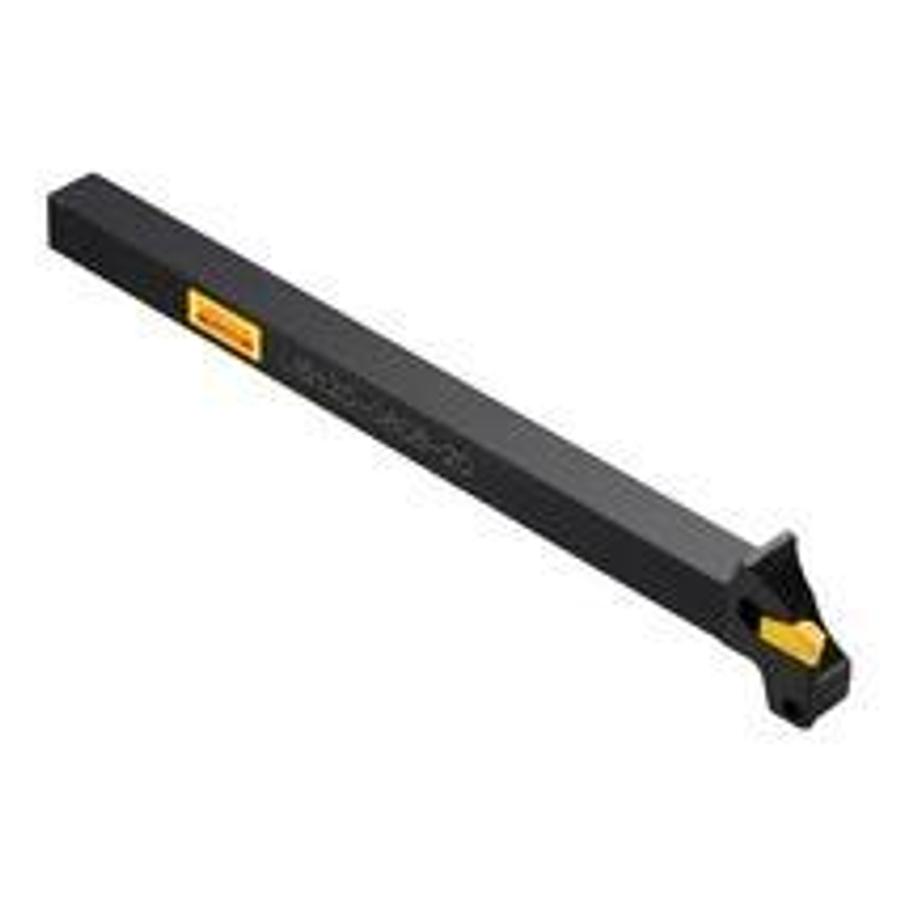

T-Max Q-Cut shank tool

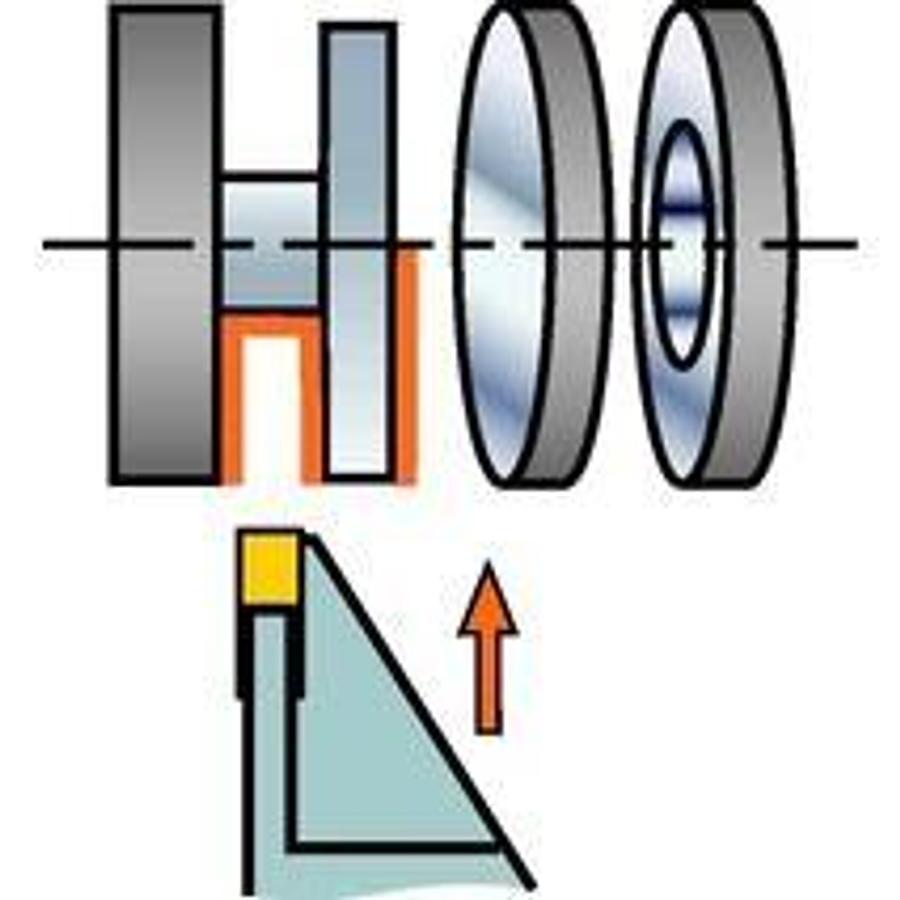

T-Max® Q-Cut shank tool for parting and grooving

• Parting diameter (CUTDIA): 29.972 mm
• Adapter interface machine direction (ADINTMS): Rectangular shank -inch: 1/2 x 1/2
• Functional width (WF): 12,954 mm
• Functional height (HF): 12.7 mm
• Functional length (LF): 150,114 mm
• Manufacturer Item No.: L151.20-08-25
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant outlet (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 20,574 mm
• Shaft width (B): 12.7 mm
• Shaft height (H): 12.7 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 15.0114 mm
• Part 2 of the cutting part interface identifiers (CUTIN: Q-Cut -size 25 (N151.2-250-5E)
• Functional width W: 12,954 mm
• Adapter interface machine direction ADINTM: Rectangular shank -inch: 1/2 x 1/2
• Functional length L: 150,114 mm
