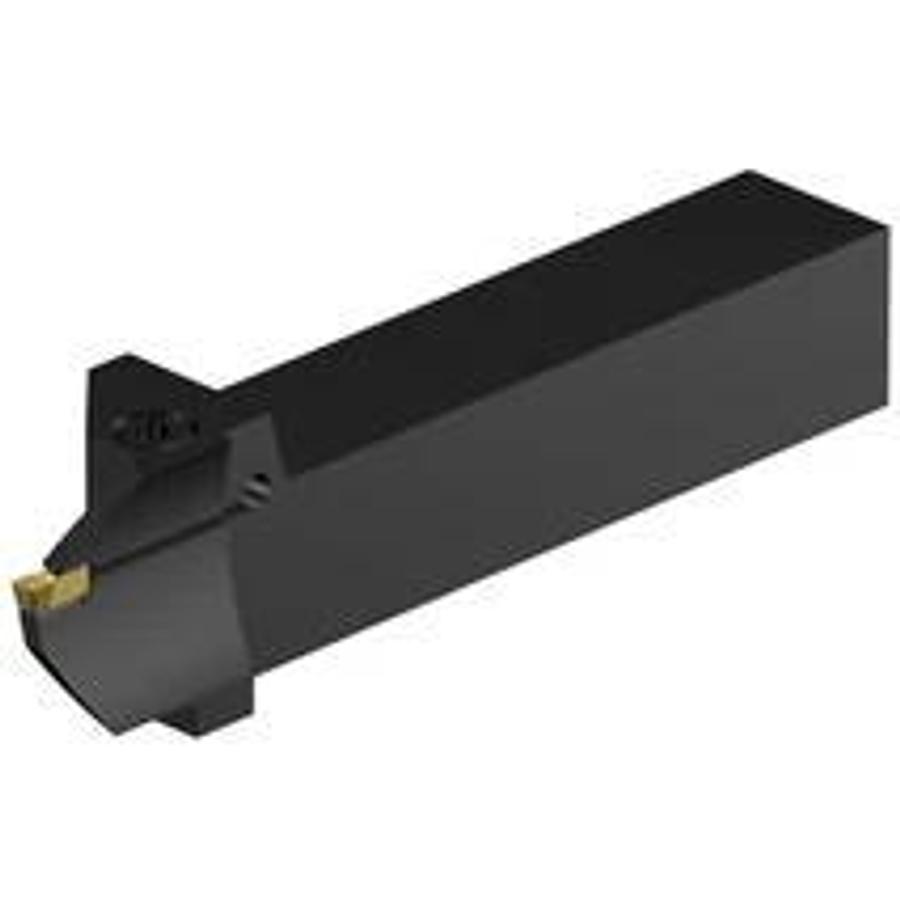

T-Max Q-Cut shank tool

SANDVIK Q-CUT holder

• Adapter interface machine direction (ADINTMS): Rectangular shank - metric: 25 x 25

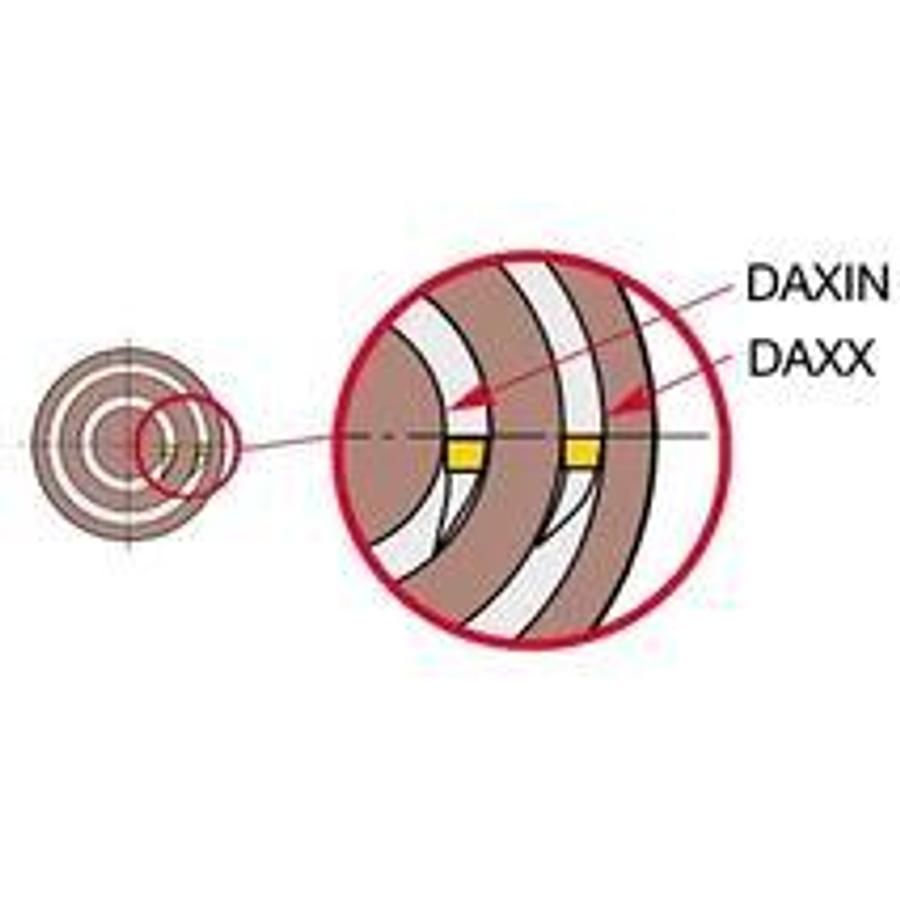

• Axial grooving diameter, max. (DAXX): 70 mm
• Axial grooving diameter, min. (DAXIN): 42 mm
• Torque (TQ): 3.3 Nm
• Functional width (WF): 26 mm
• Functional height (HF): 25 mm
• Functional length (LF): 150 mm
• Manufacturer item number: RF151.37-2525-042B30
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant outlet (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 44.7 mm
• Shaft width (B): 25 mm
• Shaft height (H): 25 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 20 mm
• Part 2 of the cutting part interface identifiers (CUTIN: Q-Cut -size 30 (N151.3-400-30-7G)
• Adapter interface machine direction ADINTM: Rectangular shank -metric: 25 x 25
• Cutting depth max CD: 20 mm
• Axial grooving diameter min DAXI: 42 mm
