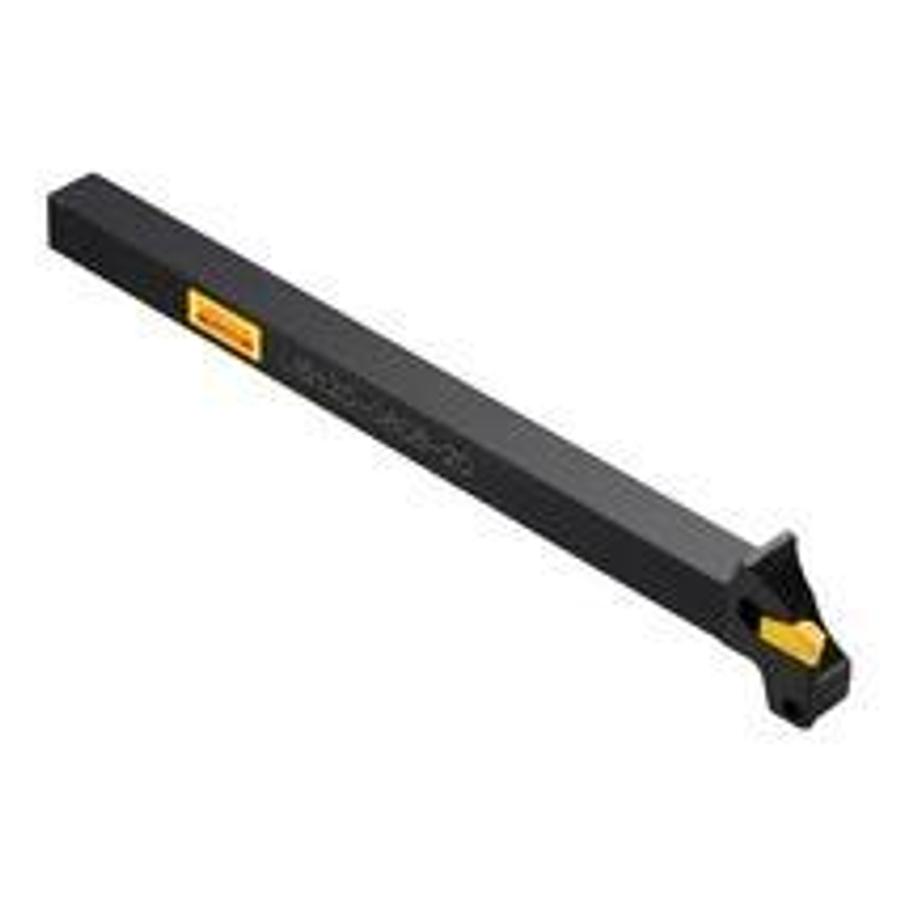

T-Max Q-Cut shank tool

SANDVIK Q-CUT holder

• Cutting diameter (CUTDIA): 35 mm
• Adapter interface machine direction (ADINTMS): Rectangular shank - metric: 25 x 25
• Functional width (WF): 25.3 mm
• Functional height (HF): 25 mm
• Functional length (LF): 150 mm
• Manufacturer No.: R151.20-2525-25
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant outlet (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 31.8 mm
• Shaft width (B): 25 mm
• Shaft height (H): 25 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 17 mm
• Part 2 of the cutting part interface identifiers (CUTIN: Q-Cut -size 25 (N151.2-250-5E)
• Functional width W: 25.3 mm
• Adapter interface machine direction ADINTM: Rectangular shank -metric: 25 x 25
• Functional length L: 150 mm
