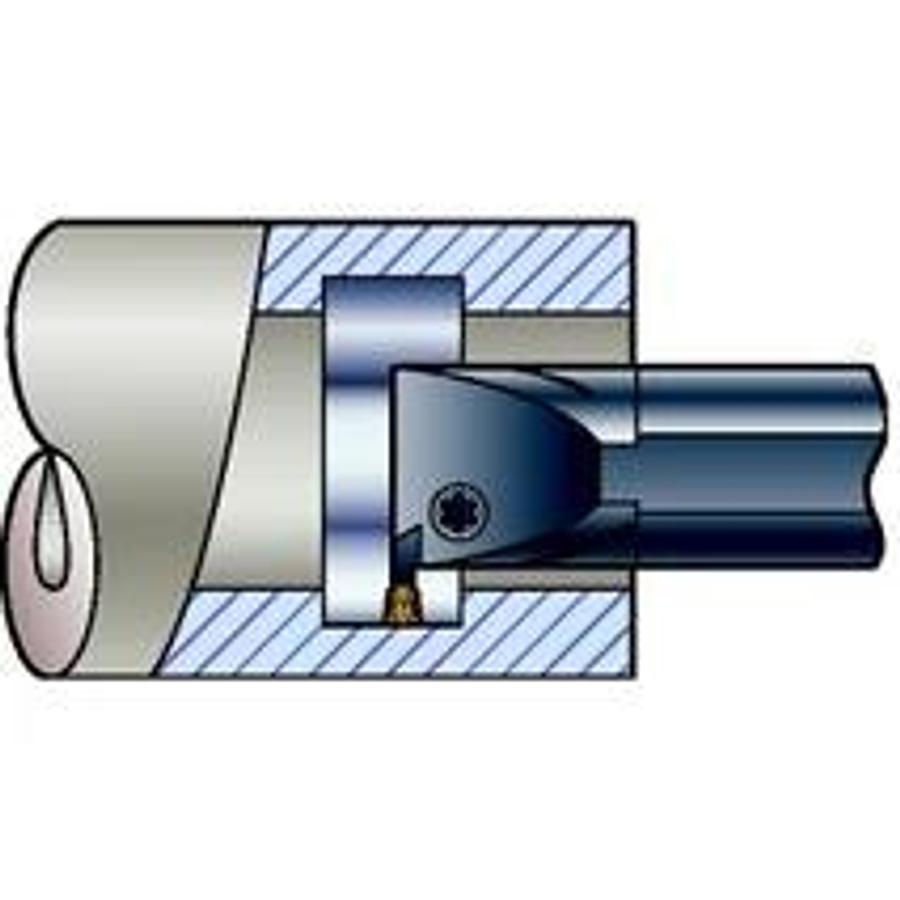

Longitudinal turning and grooving

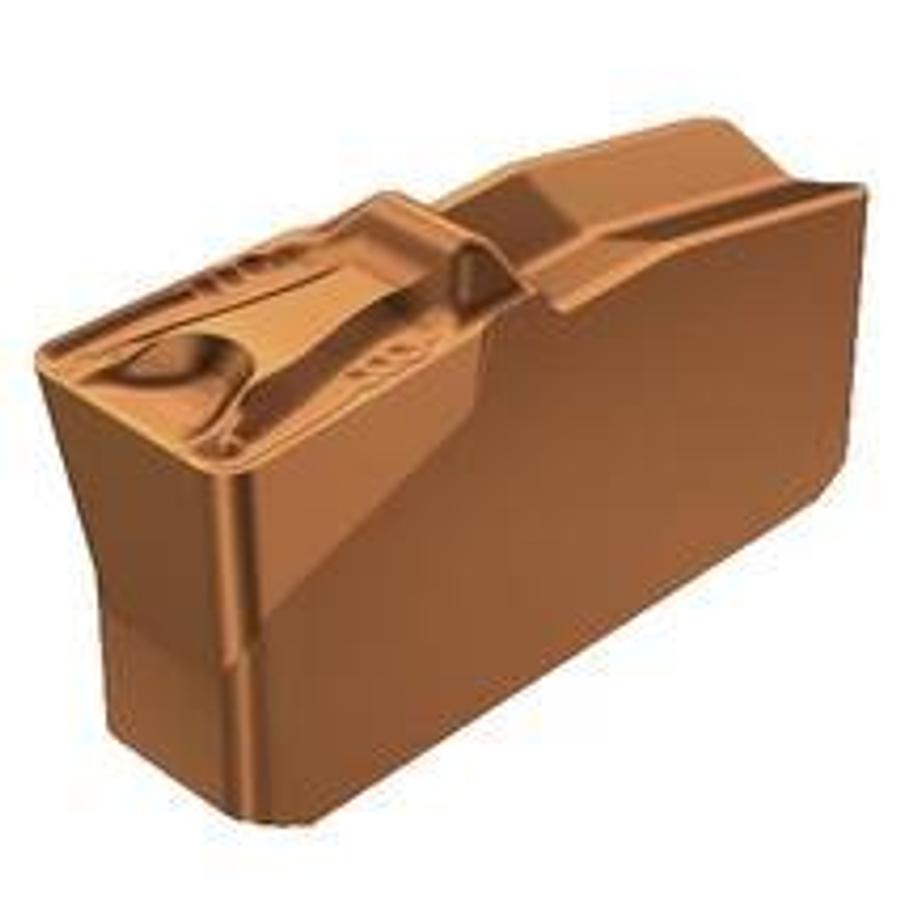

T-Max® Q-Cut indexable insert for turning

Application Area: TP

Coating Process Type: PVD

Corner radius, left (REL): 0.8 mm

Corner radius, right (RER): 0.8 mm

fnx max: 0.25 mm/r

fnx min: 0.14999999999999999 mm/r

fnx rec: 0.20000000000000001 mm/r

fnz max: 0.29999999999999999 mm

fnz min: 0.14999999999999999 mm

fnz rec: 0.22 mm

Main clearance angle (AN): 7 deg

Manufacturer's item number: N151.2-6008-60-5T 1125

Manufacturer: SANDVIK COROMANT

IC Code: 18000

ISO Cutting Tool Material: HC

Life Cycle Status (LCS): 20

Upper corner radius tolerance (RETOLU): 0.1 mm

Upper cutting width tolerance (CWTOLU): 0.1 mm

Cutting length, max. (APMX): 2.7 mm

Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 60

Cutting direction (HAND): N

Grade: 1125

Chip breaker, manufacturer's designation (CBMD): 5T

Grooving width, nominal dimension (CW): 6 mm

Substrate Type: WC

TMC Order: 1~2~3~4

Lower corner radius tolerance (RETOLL): -0.1 mm

vc max: 120~135~170~32 m/min

vc min: 100~115~145~27 m/min

vc rec: 105~125~150~29 m/min

Material classification level 1 (TMC1): C~M~P~S

Grooving width nominal dimension C: 6 mm

Corner radius right RE: 0.8 °

Grade: 1125

All ISO application areas: P|M|K
