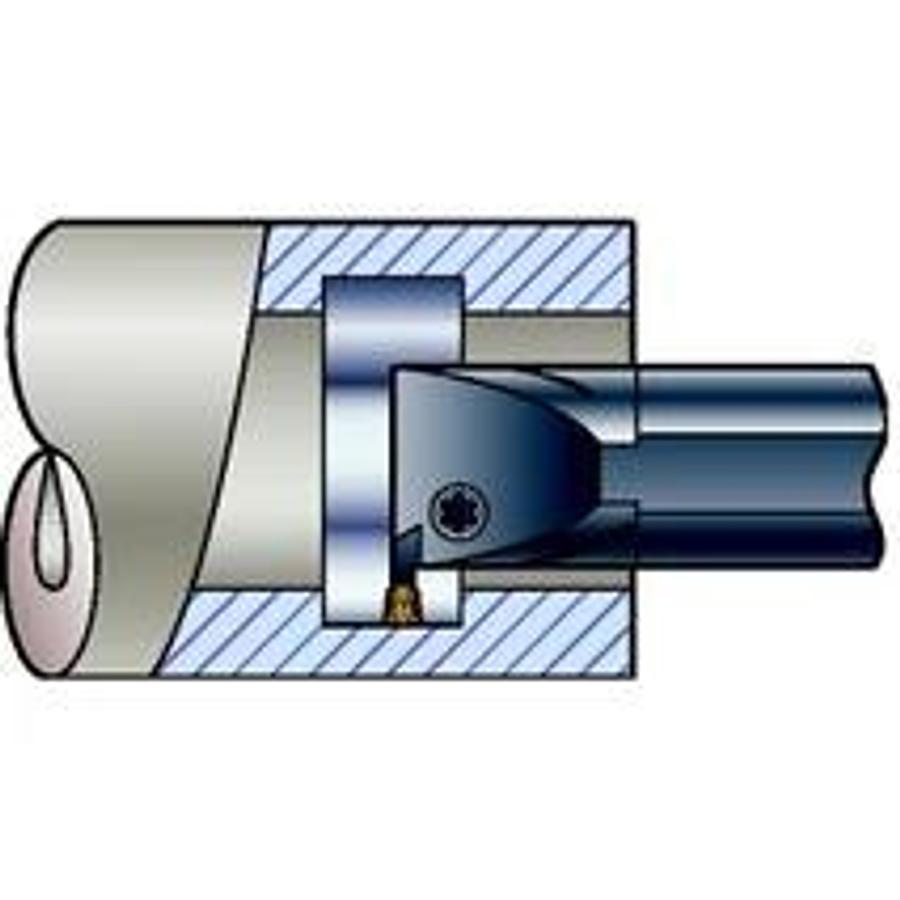

Longitudinal turning and grooving

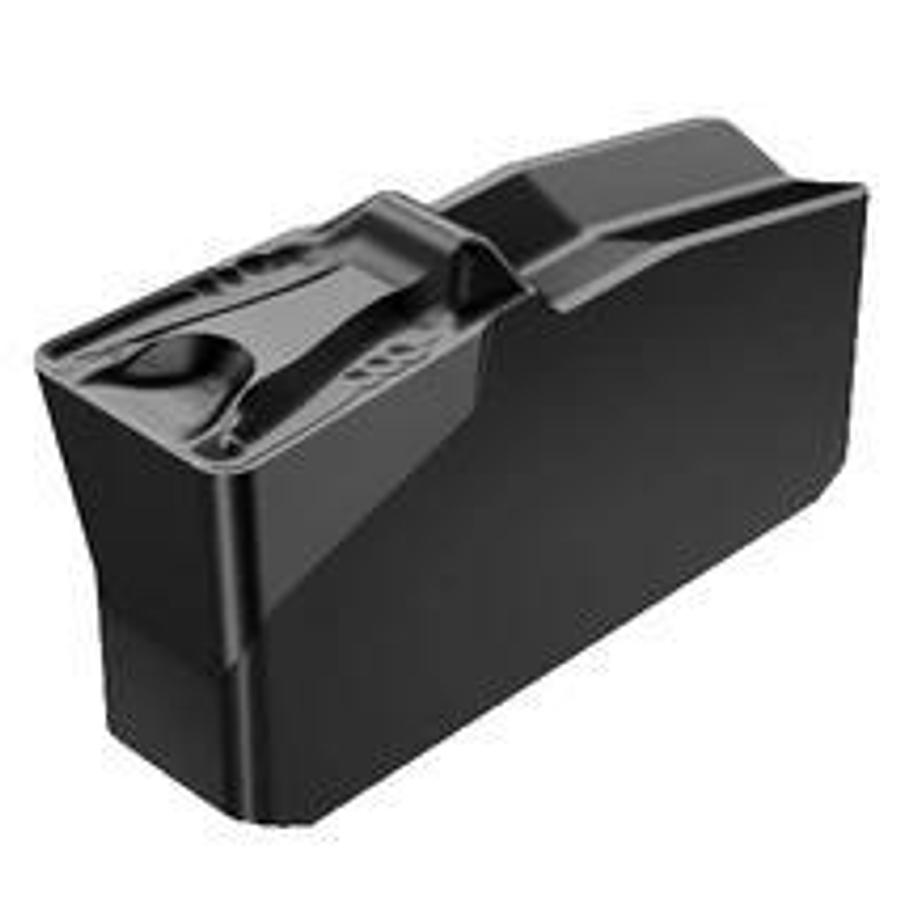

T-Max® Q-Cut indexable insert for turning

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.25 mm/r
• fnx min: 0.14999999999999999 mm/r
• fnx rec: 0.20000000000000001 mm/r
• fnz max: 0.25 mm
• fnz min: 0.10000000000000001 mm
• fnz rec: 0.17999999999999999 mm
• Main clearance angle (AN): 7 deg
• Manufacturer's item number: N151.2-4004-40-5T 3020
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 1.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 40
• Cutting direction (HAND): N
• Grade: 3020
• Chip breaker, manufacturer's designation (CBMD): 5T
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 165 m/min
• vc min: 140 m/min
• vc rec: 145 m/min
• Material classification level 1 (TMC1): K
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.4 °
• Grade: 3020
• All ISO application areas: K
