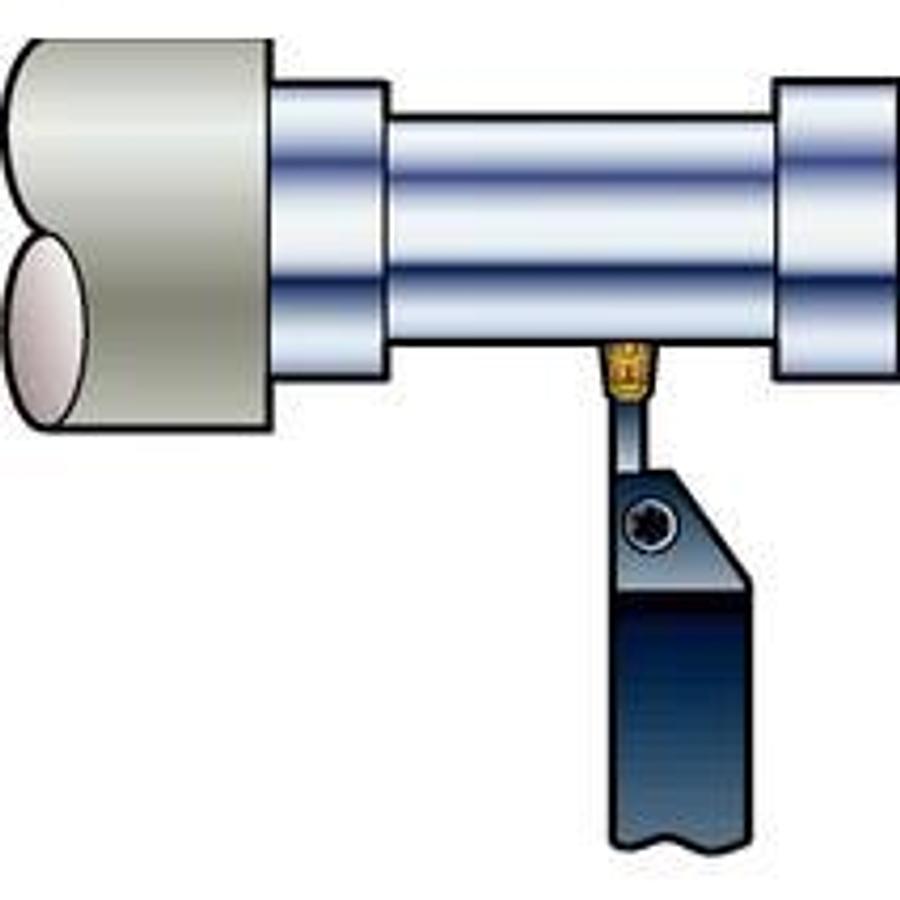

Longitudinal turning and grooving

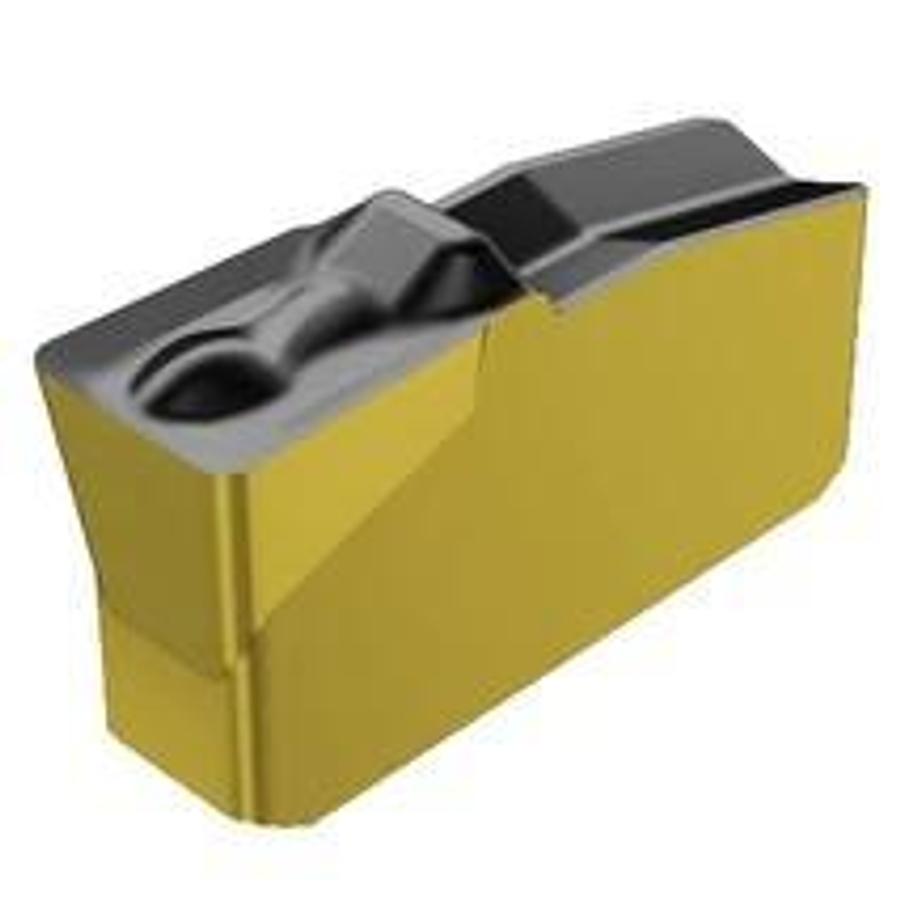

SANDVIK Q-CUT longitudinal turning inserts 4T/5T

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.20000000000000001 mm/r
• fnx min: 0.10000000000000001~0.11mm/r
• fnx rec: 0.14999999999999999 mm/r
• fnz max: 0.27000000000000002 mm
• fnz min: 0.10000000000000001 mm
• fnz rec: 0.17000000000000001 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N151.2-3004-30-4T 4225
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 1.4 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 30
• Cutting direction (HAND): N
• Grade: 4225
• Chip breaker, manufacturer designation (CBMD): 4T
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 170~230 m/min
• vc min: 140~180 m/min
• vc rec: 150~195 m/min
• Material classification level 1 (TMC1): K~P
• Grooving width nominal dimension C: 3 mm
• Corner radius right RE: 0.4 °
• Grade: 4225
• All ISO application areas: P|K
