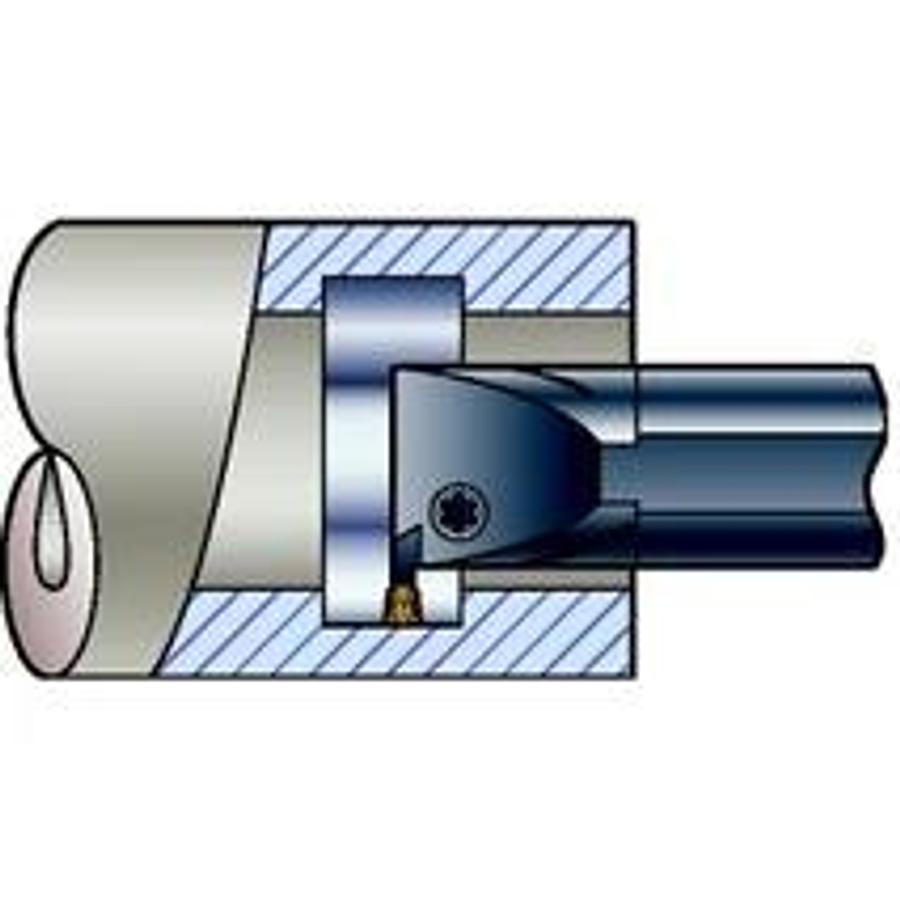

Longitudinal turning and grooving

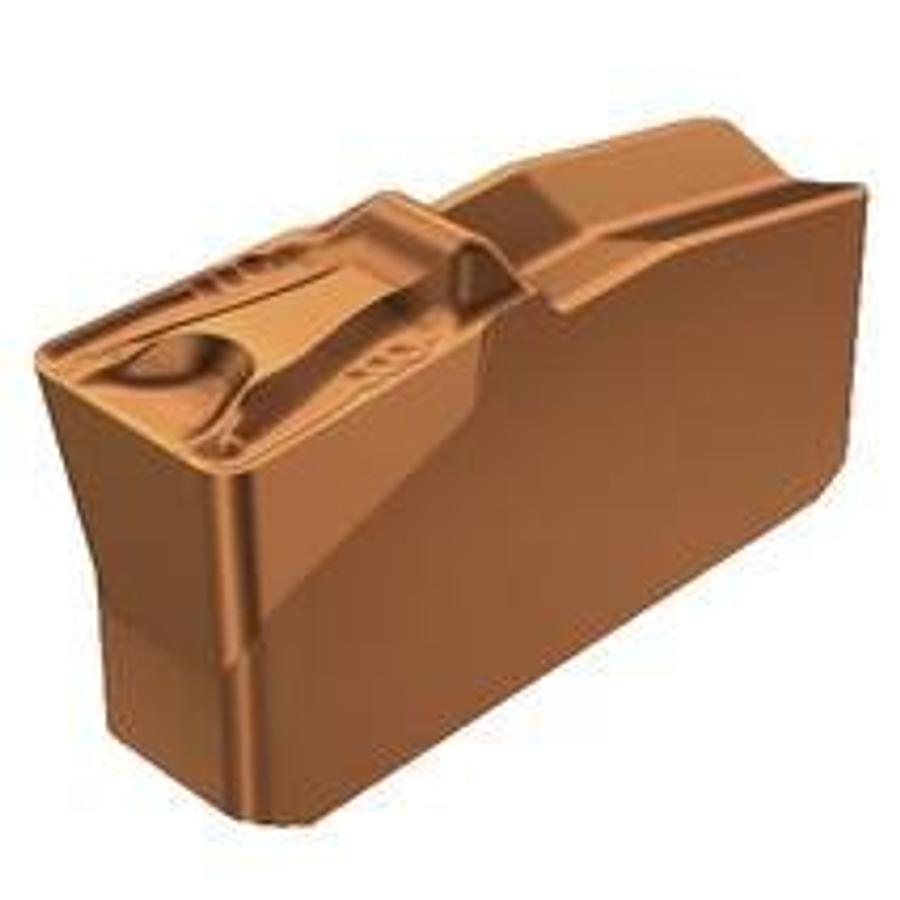

SANDVIK Q-CUT longitudinal turning plates

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.8 mm
• Corner radius, right (RER): 0.8 mm
• fnx max: 0.25 mm/r
• fnx min: 0.14999999999999999 mm/r
• fnx rec: 0.20000000000000001 mm/r
• fnz max: 0.25 mm
• fnz min: 0.10000000000000001 mm
• fnz rec: 0.17999999999999999 mm
• Main clearance angle (AN): 7 deg
• Manufacturer No.: N151.2-4008-40-5T 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 1.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 40
• Cutting direction (HAND): N
• Grade: 1125
• Chip breaker, manufacturer's designation (CBMD): 5T
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 120~135~170~32 m/min
• vc min: 100~115~145~27 m/min
• vc rec: 105~125~150~29 m/min
• Material classification level 1 (TMC1): C~M~P~S
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.8 °
• Grade: 1125
• All ISO application areas: P|M|K
