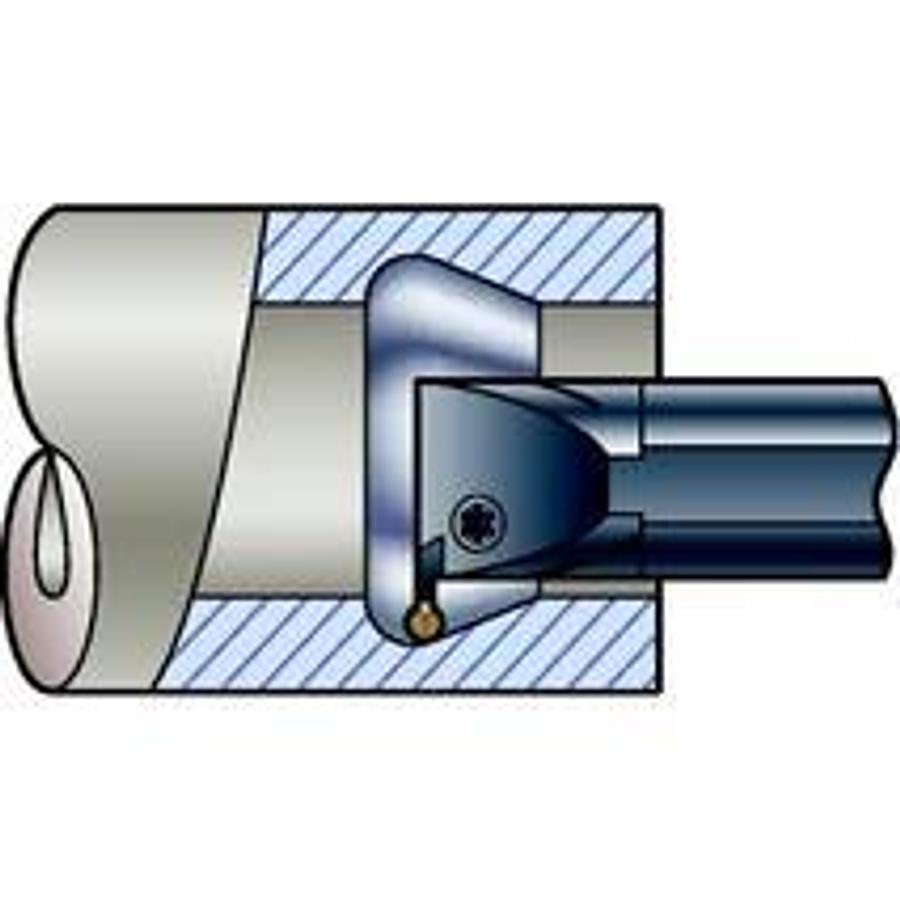

inner profile

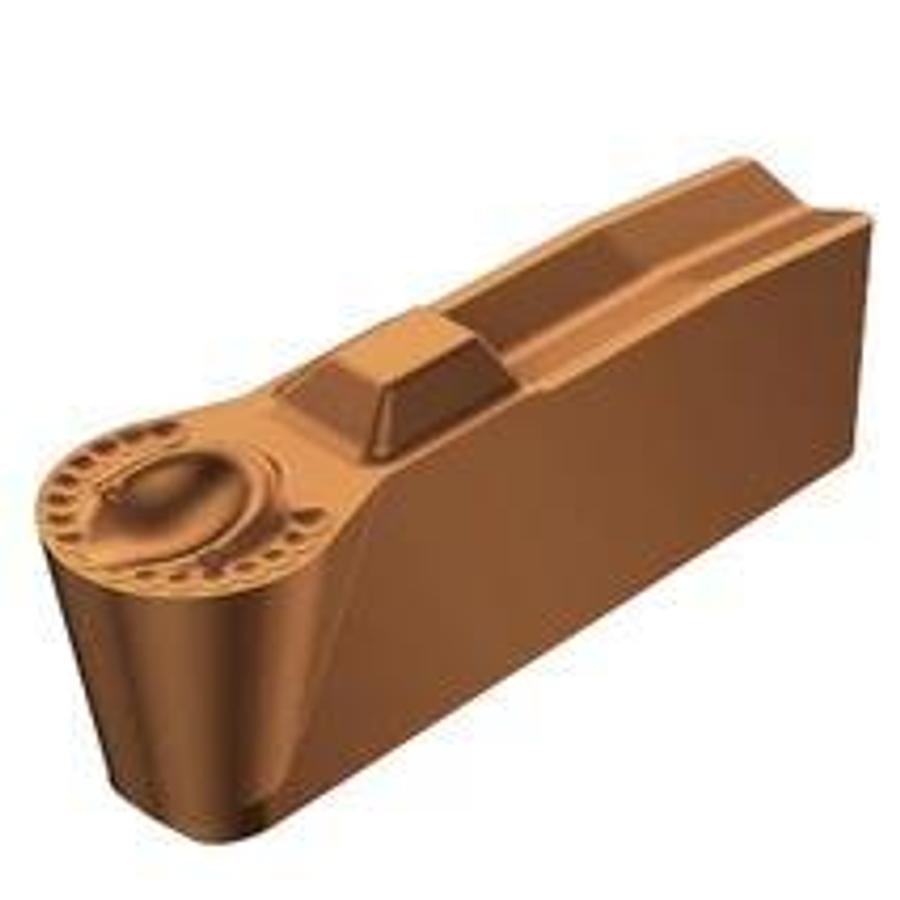

SANDVIK Q-CUT grooving plates 151.3 7P

• Application Area: TP
• Coating Process Type: PVD
• Corner radius (RE): 2 mm
• fnx max: 0.25 mm/r
• fnx min: 0.10000000000000001 mm/r
• fnx rec: 0.14999999999999999 mm/r
• fnz max: 0.66000000000000003 mm
• fnz min: 0.20999999999999999 mm
• fnz rec: 0.45000000000000001 mm
• Main clearance angle (AN): 8 deg
• Manufacturer item number: N151.3-400-30-7P 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting length, max. (APMX): 1.7 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.3face -size 30
• Cutting direction (HAND): N
• Grade: 1125
• Chip breaker, manufacturer's designation (CBMD): 7P
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• vc max: 130~155~195~37 m/min
• vc min: 100~115~145~27 m/min
• vc rec: 110~130~160~30 m/min
• Material classification level 1 (TMC1): C~M~P~S
• Corner radius R: 2 mm
• Chip breaker manufacturer designation CBM: 7P
• Grade: 1125
• All ISO application areas: P|M|K|S
