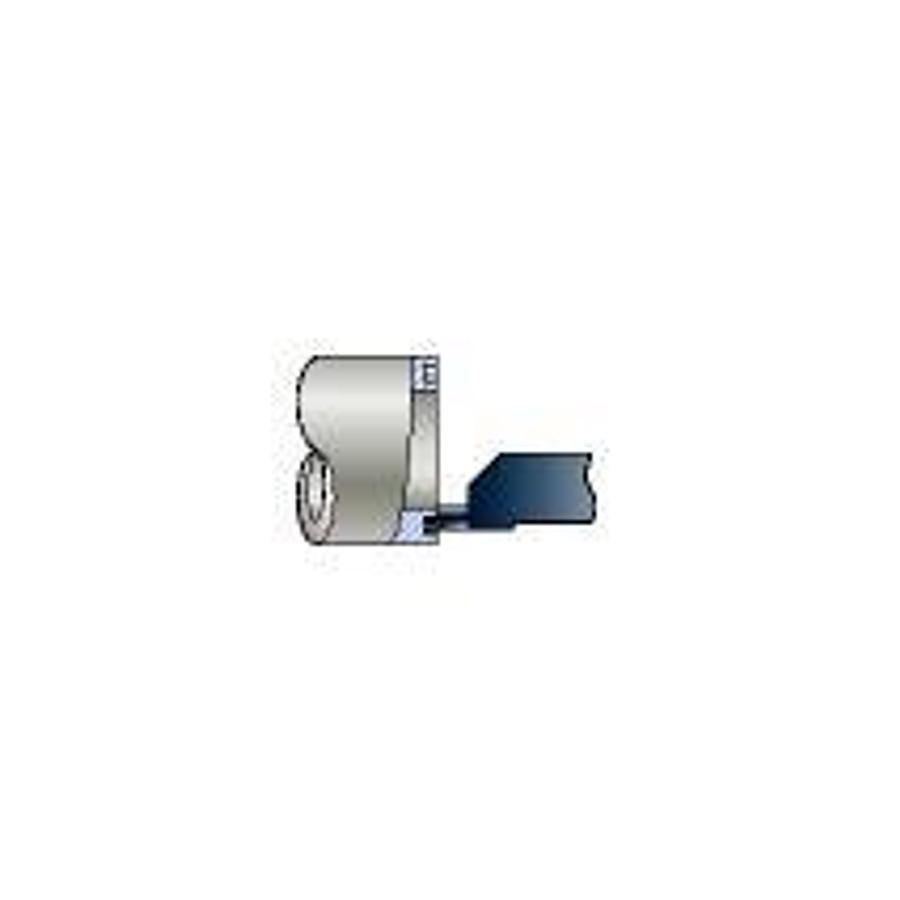

Axial grooving

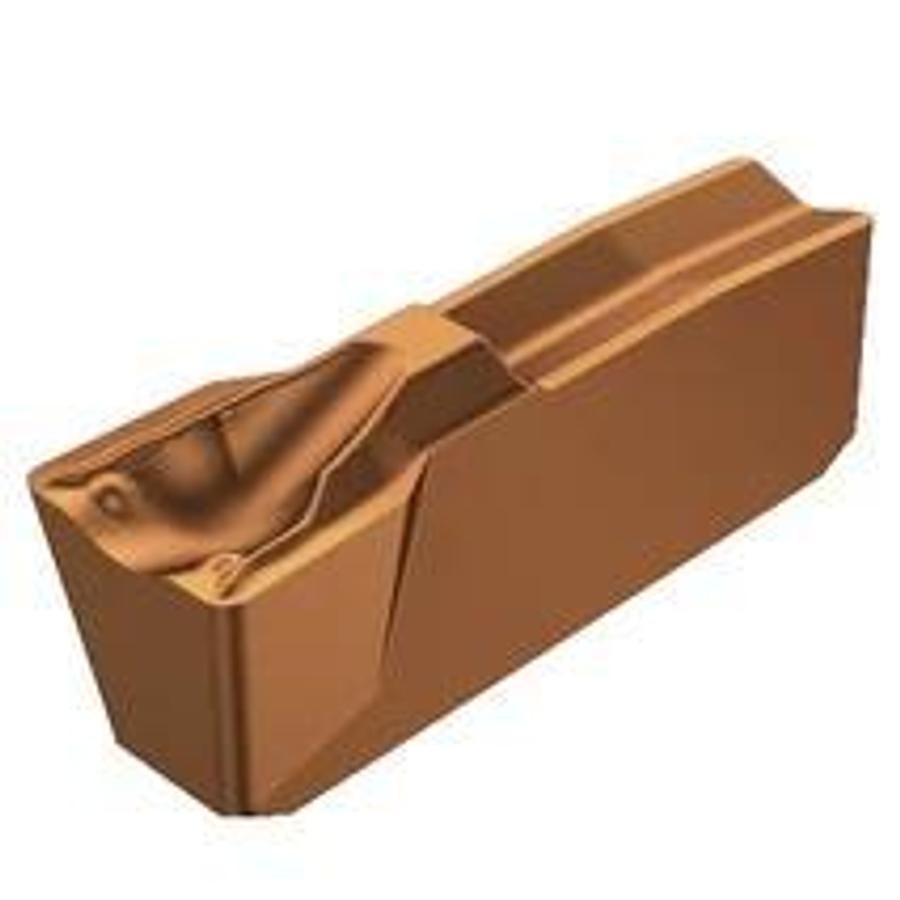

SANDVIK Q-CUT axial grooving inserts 151.3

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.14999999999999999 mm/r
• fnx min: 8.0000000000000002E-2 mm/r
• fnx rec: 0.12 mm/r
• Main clearance angle (AN): 8 deg
• Manufacturer item number: N151.3-600-50-7G 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.3face -size 50
• Cutting direction (HAND): N
• Grade: 1125
• Chip breaker, manufacturer's designation (CBMD): 7G
• Grooving width, nominal dimension (CW): 6 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 140~170~210~39 m/min
• vc min: 120~135~170~32 m/min
• vc rec: 125~150~180~35 m/min
• Material classification level 1 (TMC1): C~M~P~S
• Grooving width nominal dimension C: 6 mm
• Corner radius right RE: 0.4 °
• Grade: 1125
• All ISO application areas: P|M|K|S
